YQA
YQ

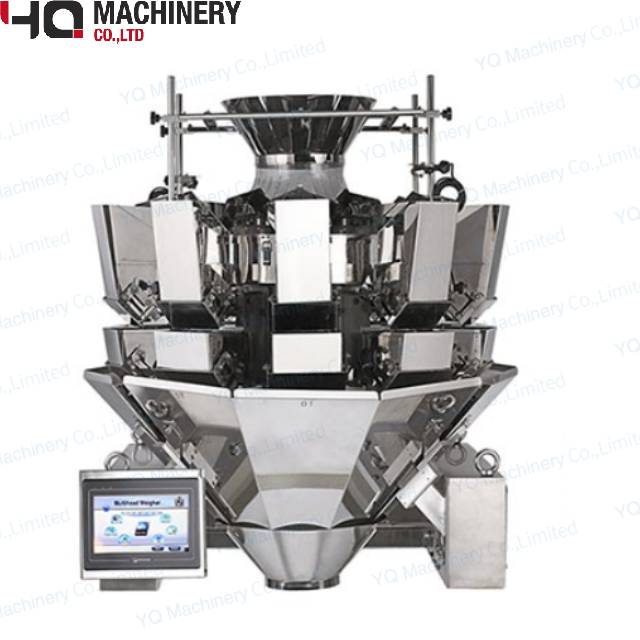

Introduction:
YQ machinery multihead weighing machines for your food production line. Access unbeatable speed, accuracy and efficiency in multihead weighing, whilst maintaining the highest levels of quality and reliability. Choose from the widest available range of weighing solutions to suit your application. Create full line solutions with both upstream and downstream equipment including infeed systems, packaging machines and quality control equipment.
Features:
1. Speed adjustable rotary top cone is suitable for different product feeding.
2. Enhanced linear vibrator improves the flowability of material.
3. The declinational special linear vibrator pan, ensure smooth feeding.
4. 60°dimple discharge chute contributes to less sticky problems.
5. Optional weighing type material detection, accurate control of feeding time, material thickness, to
ensure the accuracy of the weighing;
6. The whole cast aluminum thickening machine case enhanced the strength of the machine, and shorten sample stable time.

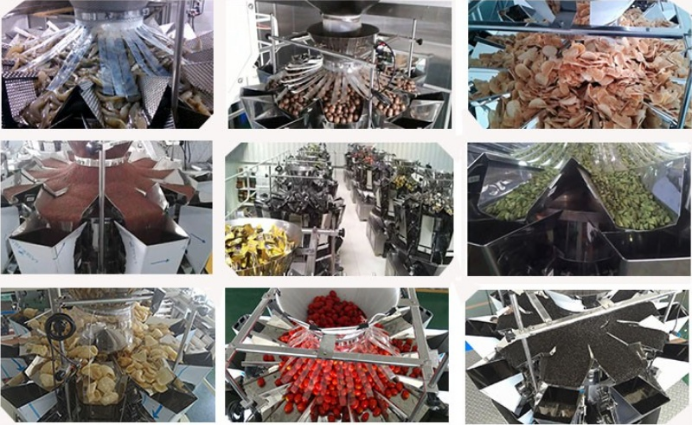

Application
Mechanical Characters:
1.A wide range application to different size of products.
2.Arc-shaped machine body with large R treatment improves the stability and appearance
3. Uniform design standards, and mould processing, contribute to better
4.Stable actuator design reduce the mechanical vibration and improves the load cell value accuracy. 5.Integral machine frame and machine cabinet contributes to more stability and higher accuracy.

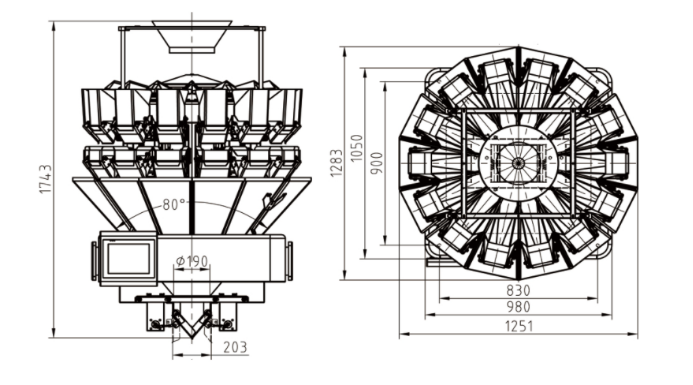

Drawing:
Technical Parameter:
Model | YQ-A10 | YQ-A12 | YQ-A14 |
Measure Number | 10 | 12 | 14 |
Weighing Range | 10-1000g | 10-1500g | 10-1500g |
Accuracy | X(0.5) | X(0.5) | X(0.5) |
Max Speed | 60P/M | 60P/M | 100P/M |
Hopper Volume | 1.6L / 2.5L | ||
Control Panel | 7'' Touch Screen | ||
Options | Dimple Plate/Timing Hopper/Printer/Reject Device | ||
Driving System | Step Motor | ||
Power Requirement | 220V/1000W/ 50/60Hz /10A | 220V/1200W/ 50/60Hz /10A | 220V/1500W/ 50/60Hz /10A |
Packaging Dimension (mm) | 1620(L)X1100(W)X1110(H) | 1700(L)X1110(W)X1130(H) | 1750(L)X1130(W)X14200(H) |
Gross Weight | 380kg | 450kg | 490kg |
Video for screw and nuts
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by misoperation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
