One of old client from Singapore has bought a whole pure juice filling production line

Views: 382     Author: TRACY     Publish Time: 2017-06-25      Origin: YQ MACHINERY CO.,LIMITED

We are leading manufacturer of bottle sorting machines, filling machines,capping machines and labeling machines.One of regular Singapore customer bought an whole filling line from us.It has pet bottle unscrambler,bottle rinsing machine,adhesive sticker labeling machine,4 nozzles piston filling and rotary cap tightening machine.This filling line can be used for Water, fruit juice, alcohol, sports drinks (non carbonated), tea, lemonade, energy drinks, energy shots, or any other non carbonated beverage.Our client use this filling system to fill and pack pure juice.

Below is video of this juice filling line:



1.plastic bottle sorting machine:

Main technical parameters:

1) Production speed:40-120bottles/min

2) Voltage:AC220V/110V;50Hz/60Hz  Power :0.5kw

3) Weight:400kg

4) Machine dimension:2000mm×1000mm×1500mm(L×W×H)

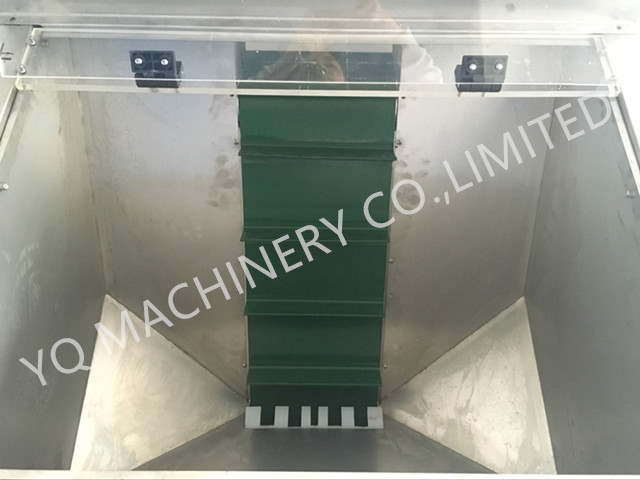

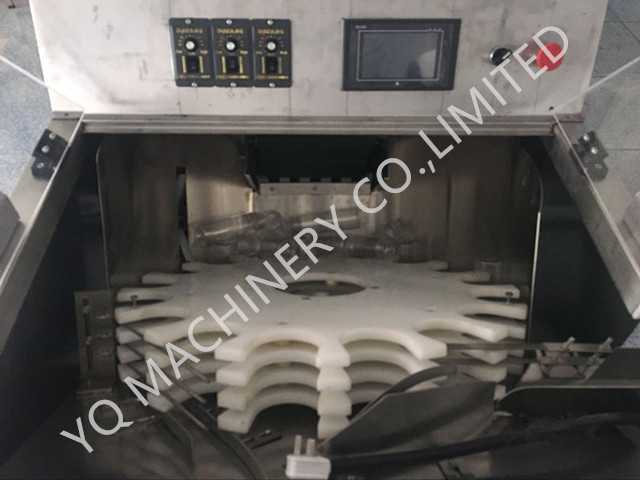

Juice bottle sorting machine.jpgbottle arraning machine.jpgbottle sorter.jpg

Structure and features of  juice pet bottle arranging machine:

1) Compact structure, concise appearance, convenient operation;

2) High production efficiency, it can continuous send the bottle automatically, then turn over the bottle and exit the bottle;

3) Meet the automation demand, without manual send bottle;

4) Turn over the bottle of institutions and bottle length, match with the shape , ensure the continuous, rapid output;

5) Through sorting after the transportation institutions, flip institutions and unscramble bottle institutions, the bottles mouth up and entering to next working procedure orderly.

2.Bottle rinsing machine

Major Characteristics:

It adopts continual tracking to spray and wash bottles, high efficiency, well effect of rinse, and it is suitable for different specifications of bottles. Widely range, easy operating convenient maintaining.

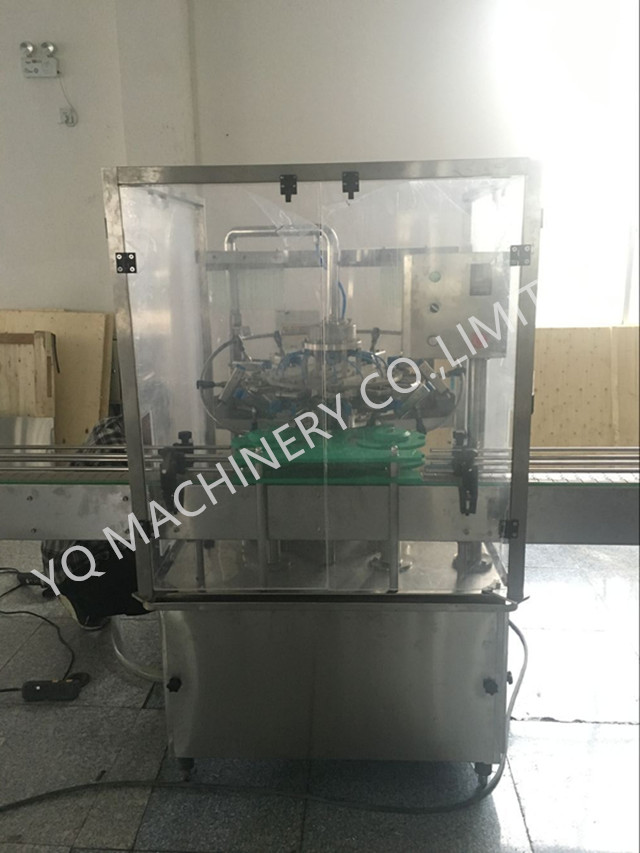

bottle rinsing equipment.jpg

Main Performance parameter of automatic bottle rinsing machine:

1.Power supply : AC220V ; 50Hz ( or according to client voltage requirement )

2.Power : 1.2kw

3.Production capacity : 2000-3000 bottles/hour

4.Pneumatic ( air-operated ) source : 0.6Mpa clean and Stable compressed air

5.Machine weight : 600kg

6.Numbers of manipulator : 12

7.Pressure of water : 0.2 Mpa~0.4Mpa

8.Medium of rinse : germfree water

9.Dimension (L*W*H) : 1200mm*1200mm*1850mm

3.Adhesive Labeling machine:

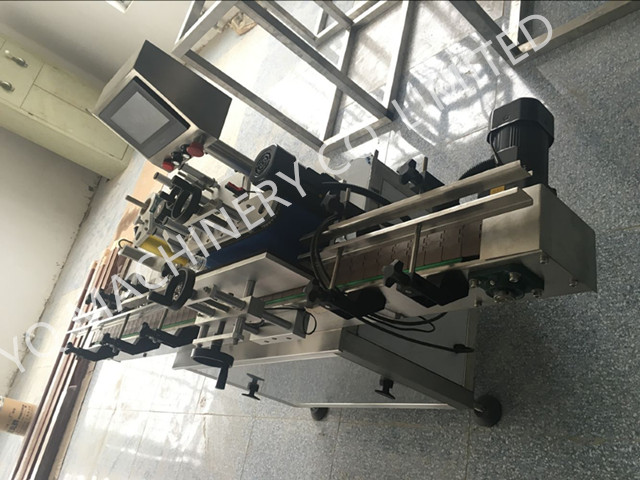

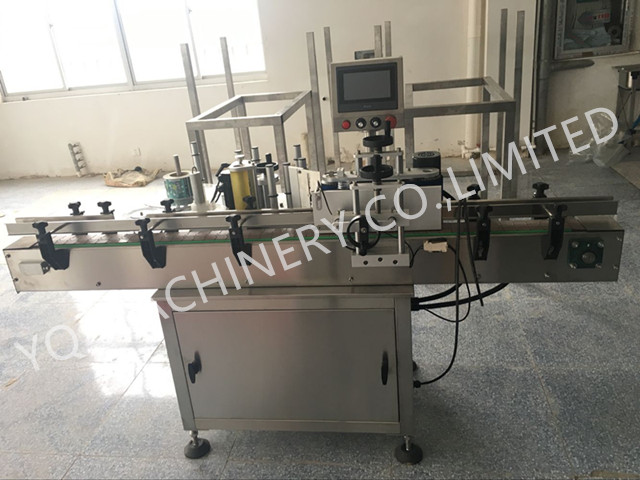

bottles labeling machine.jpground bottle jar tin can labeling machine.jpg

Main technical parameters of this juice plastic bottle labeling machine:

Operating directionLeft or Right

Labeling Accuracy±1.0 mm(subject to the roughness of the plane)

Production(bottle/min)60-150(according to the size of bottle and label)

Labeling Speed(m/min)≤40

Label Specificationsadhesive sticker,transparent or opaque

The application of bottleOuter diameter 20-100mm  Height 35-200mm(can be customized according to your requirement)

The application of labelHeight 20-180mm ; Length 23-300mm(can be customized according to your requirement)

The inner diameter of label roll76mm

The outer diameter of label roll350mm (max)

The power of motor(w)550W

VoltageAC220V 50/60HZ Single phase

Size appearance(mm)2200(L) 700(W) 1270(H)mm

4.4 nozzles piston filling and rotary capping 2 in 1 machine:

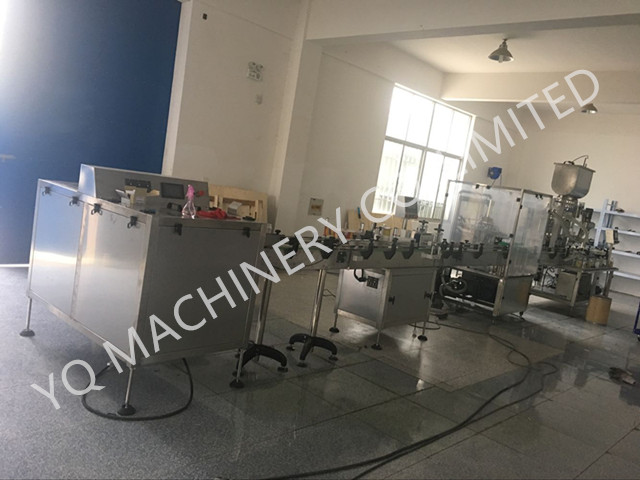

juice filling production line.jpg

Main performance and structure features of juice filling cap tightening machine:

1.Control system - with Mitsubishi PLC control system, filling dose of random tuning

2.Operation interface - colorful screen interface, human-machine interface is simple, safe and reliable

3.Feature Enhancements - Cutting with anti-drip device, it can dive to fill with materials. (This feature can be optional)

4.Electrical components - using  internationally renowned brands to ensure the equipment is reliable and of high accuracy.

5.Mechanical components - the main parts is made of high quality stainless steel frame

6.Extensions - can be customized for specific configuration requirements, such as: material sealed,  heating, sterilization, etc..

7.Count testing - real-time count, reflecting on the work output directly.

8.Filling And Capping Detection - No bottle, No filling and capping ;or when bottle filling number is not enough, no filling

Technical Parameter of this juice filler:                                     Capacity: 1000~2000 bottles/min

Filling Capping rate: ≥99%

Screwing rate: ≥99%

Power: 1.4KW

Power supply: 220V/110V;50HZ/60HZ,single phase

Air supply: 5m3/h;  0.6~0.8Mpa

Dimension: 2500×1200×1800

Net Weight: 800kg

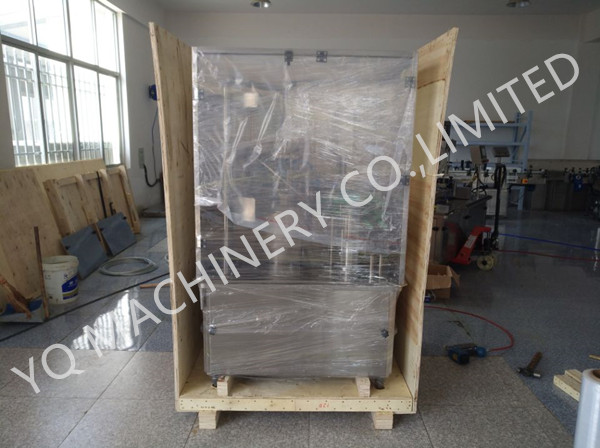

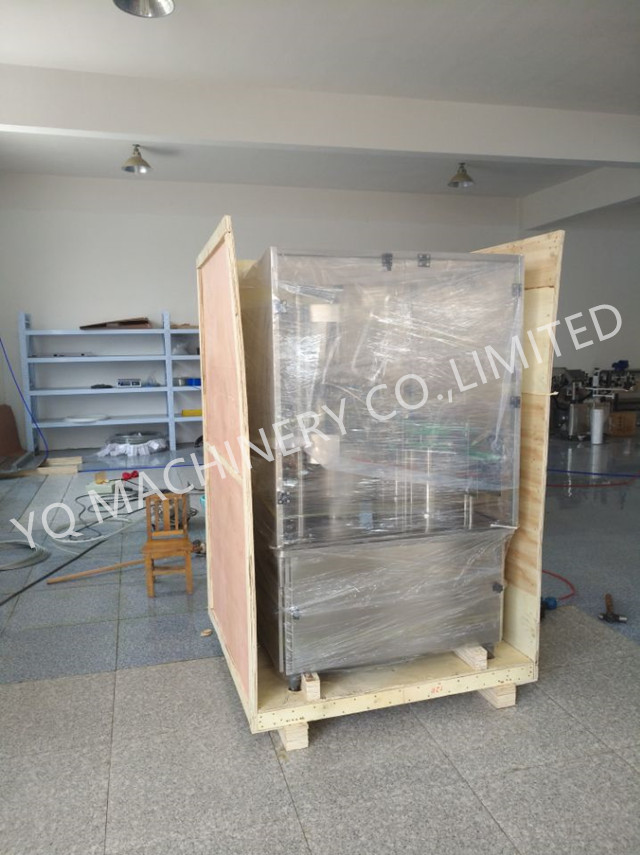

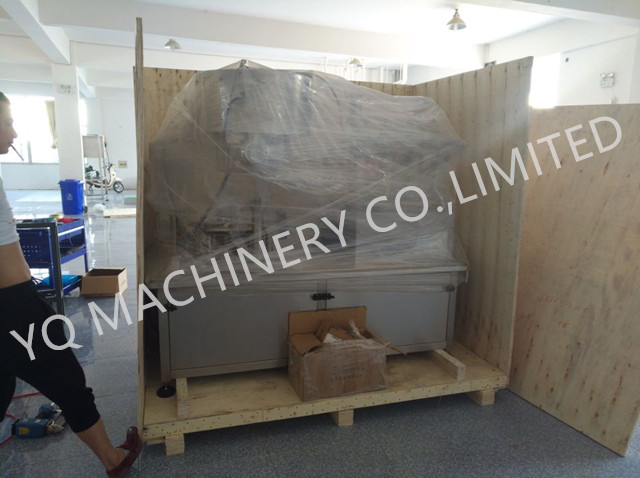

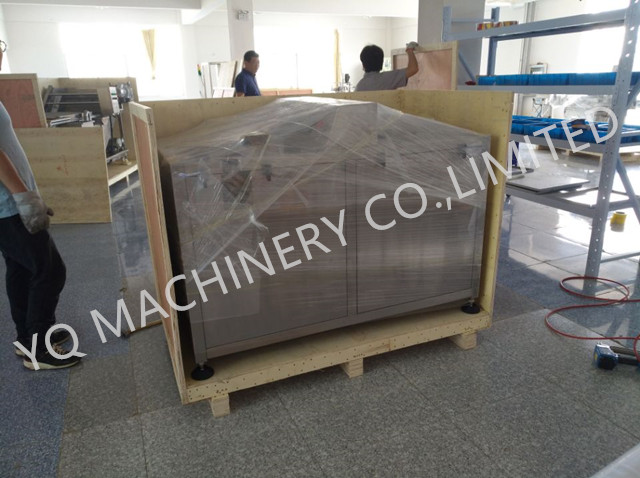

The machines were packed in wooden cases and sent to shanghai port:

bottle filling and capping machine.jpgbottle filling machine.jpgbottle rinsing machine.jpgbottle rinsing machines.jpgbottle unscrambler machine.jpg

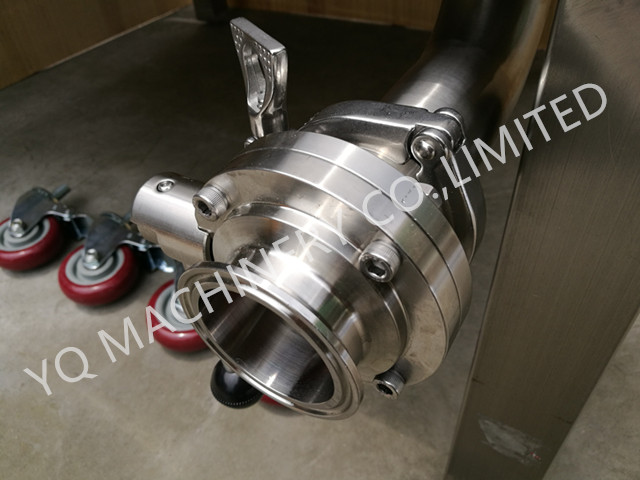

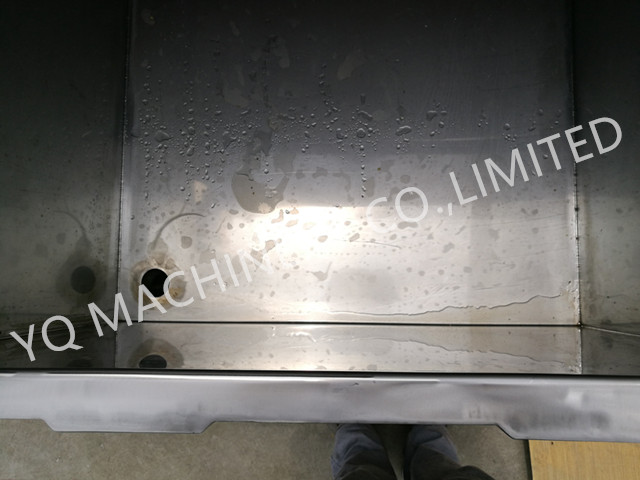

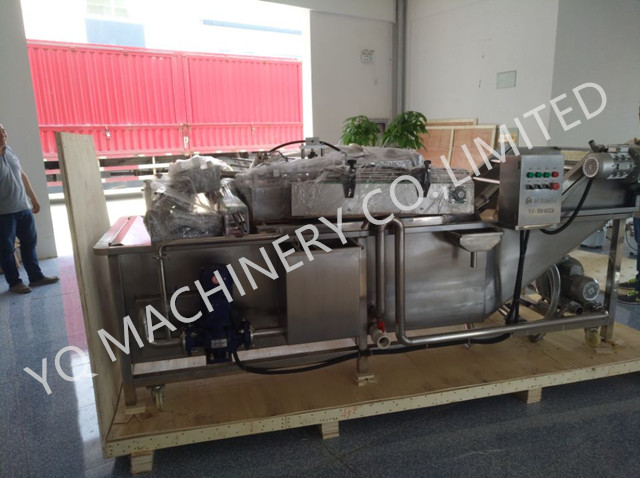

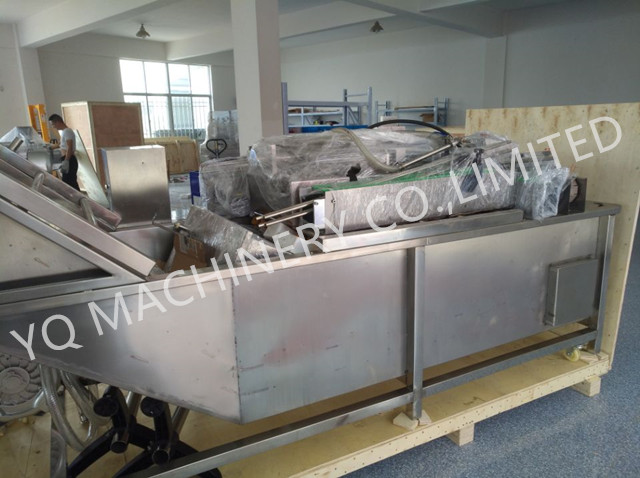

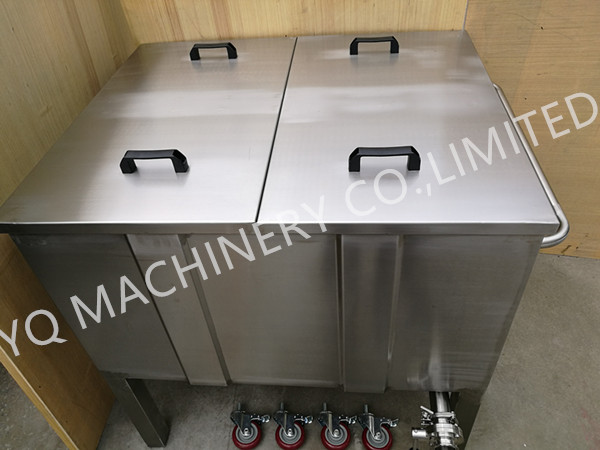

By the way,the client also bought fruit washing machine and 4 tanks to fill juice which work with filling machines.

juice filler.jpgjuice filling systems.jpgjuice filler 1.jpgfruit washing machine.jpgfruit washing machine 1.jpg

we have booked 40 food container for the client to sigarpore port:

juice filling and capping machine 1.jpgjuice filling and capping machine.jpgjuice filling and capping machines .jpgautomatic juice filling machines.jpg

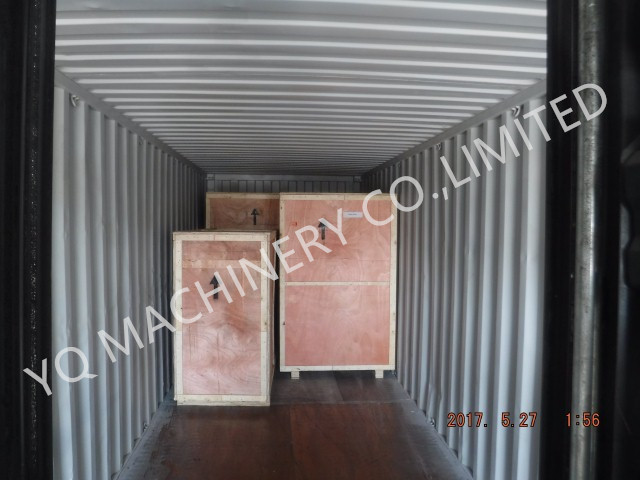

The wooden cases were in shanghai port and be put into the container that we have booked:


juice filling machinery.jpgjuice filling system.jpg

juice filling equipment.jpgjuice filling line.jpgjuice filling mahcine price.jpg
