Availability: | |
---|---|
Quantity: | |

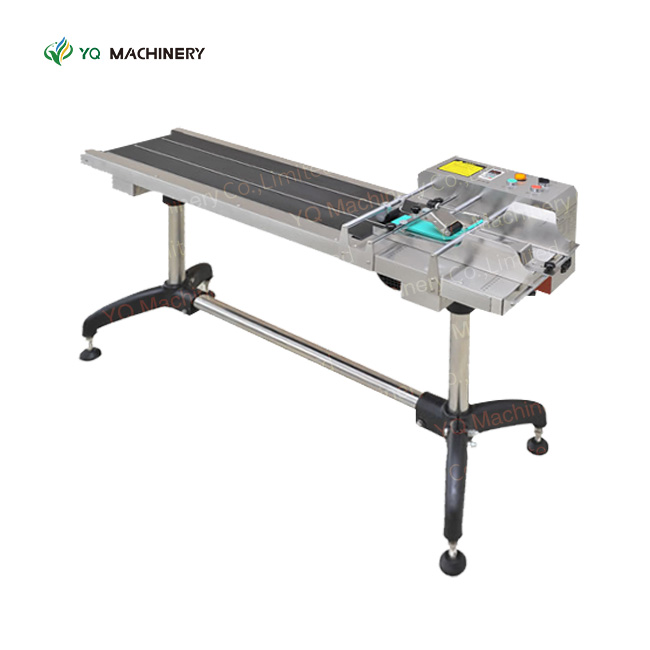

YQ-340MC
YQ
Scope of application
1. Cards: IC card, IP card, etc.
2. Packaging bags: plastic bags, paper boxes, paper bags, labels, paper sheets, etc.
Use
It is used to automatically separate stacks of bags or cards and transfer them to the conveyor belt in a single page.
It is convenient for inkjet printer or laser printer to print, engraving production date, batch number, anti-counterfeiting mark, pattern, etc.
So as to reduce the tediousness of manual paging, give full play to the advantages of high-speed printing by printers and lasers, and improve the printing efficiency,
Convenient for production operation and management.
Features
1. Imported variable frequency stepless speed regulation, high speed automatic paging 60-600 pcs / min.
2. High paging speed, high positioning accuracy and high production efficiency.
3. Qualified structural design, independent shaft, easy and quick replacement of wearing parts.
4. Equipped with manual / automatic functions, convenient for debugging and production operations.
5. Optional accessories: automatic receiving device
Technical Parameter:
Device name | Automatic paging machine |
Model | YQ-340MC |
Paging mode | Friction type |
Separated object width | 40-300mm |
Thickness | 0.02-5mm |
Speed | 20-180 units per min |
Width of conveyor | max 250mm |
Power supply | 220V-50HZ(can be customized) |
Power | 120W |
Speed mode | Frequency conversion stepless speed regulation |
Machine Size | 1500X520X900mm |
Machine weight | 42.5kg |
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by wrong operation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
Scope of application
1. Cards: IC card, IP card, etc.
2. Packaging bags: plastic bags, paper boxes, paper bags, labels, paper sheets, etc.
Use
It is used to automatically separate stacks of bags or cards and transfer them to the conveyor belt in a single page.
It is convenient for inkjet printer or laser printer to print, engraving production date, batch number, anti-counterfeiting mark, pattern, etc.
So as to reduce the tediousness of manual paging, give full play to the advantages of high-speed printing by printers and lasers, and improve the printing efficiency,
Convenient for production operation and management.
Features
1. Imported variable frequency stepless speed regulation, high speed automatic paging 60-600 pcs / min.
2. High paging speed, high positioning accuracy and high production efficiency.
3. Qualified structural design, independent shaft, easy and quick replacement of wearing parts.
4. Equipped with manual / automatic functions, convenient for debugging and production operations.
5. Optional accessories: automatic receiving device
Technical Parameter:
Device name | Automatic paging machine |
Model | YQ-340MC |
Paging mode | Friction type |
Separated object width | 40-300mm |
Thickness | 0.02-5mm |
Speed | 20-180 units per min |
Width of conveyor | max 250mm |
Power supply | 220V-50HZ(can be customized) |
Power | 120W |
Speed mode | Frequency conversion stepless speed regulation |
Machine Size | 1500X520X900mm |
Machine weight | 42.5kg |
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by wrong operation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
