YQSW-120
YQ

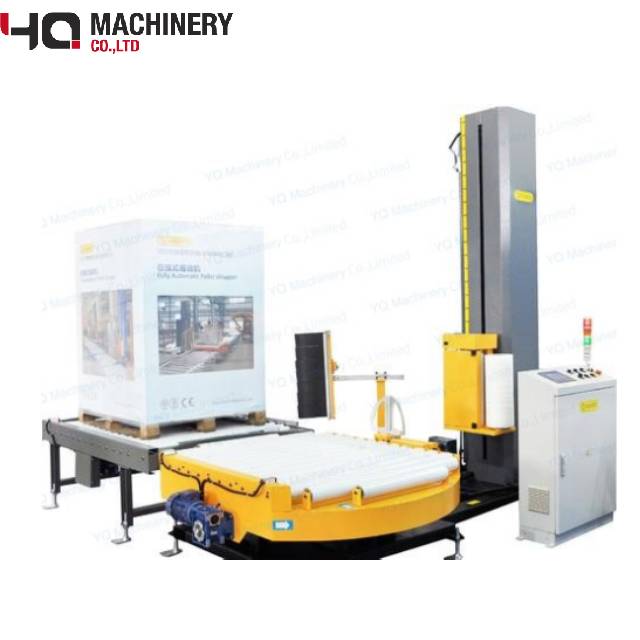

Introduction of online wrapping machine:
It is suitable for modern operations with large production volume and high logistics efficiency.
According to different products and actual needs on site, different packaging systems can be
customized to automatically complete the process of sensing, packaging, centering, and
conveying the goods. The conveying mechanism can adopt different forms such as rollers,
belts, and chain plates. The upper breaking mechanism can realize unmanned operation. It is
widely used in food, beverage, chemical, paper, building materials and other industries.
Packing product size:
Pallet specification: 1334L×1080W×145H (unit: mm)
Cargo height: H1524mm
Cargo weight: 1500kg (including pallet)
Efficiency: 30 pallet/hour (excluding delivery time)
Conveying goods width: 1080mm
Conveying direction: 2000mm
Conveyor line height 500mm
Equipment composition Control system 1 set
Online winding machine host 1 set
Automatic film loading system 1 set
Automatic film breaking system 1 set
Introduction to the packaging process
(1) Preparation Film application: Workers put the film through and put it into the film applicator
to clamp the film (only the first cycle process requires manual application of the film, the equipment will automatically apply the film later), turn on the power: open the electric control box, and close the air switch , Turn off the electric control box, turn on the switch to start operation. The staff changes the parameters of the top, bottom, reciprocation times and other parameters on the control panel according to the cargo situation, and press the start button after confirmation.
(2) Operation The product is conveyed to the winding machine position through the existing conveyor line and photoelectric switch (the stop position is controlled by the photoelectric switch), the winding machine is started, the tray rotates, the film frame system starts to rotate around the goods, and the film feeding motor delivers the film to package the goods. After the packaging is finished, the film rack stops to the original position, and the automatic film-cutting system performs automatic film-cutting, stroking and film-cutting processes on the goods, and the automatic film-cutting system returns to the original position. After the packaging process is completed, the roller conveyor system starts. The product is automatically transported to the parking position (the stop position is controlled by the photoelectric switch), and a cycle is completed so far, and the above actions can be repeated for continuous packaging.
(3) Changing the film When a roll of stretch film is about to run out, it needs to shut down and turn off the power. Manual film replacement starts from step 1.
Packing line components and main technical parameters
(1) Packaging material parameters
(2) Cargo size: Pallet specification: 1334L×1080W×145H (unit: mm)
(3) Cargo height: H1524mm
(4) Cargo weight: 1500kg (including pallet)
(5) Efficiency: 30 pallet/hour (excluding delivery time)
Equipment technical parameters
Turntable diameter 2000mm
Turntable height 500mm
Conveyor method: roller
conveyor Machine size 3000*2000*2550 mm
Whole machine weight 1200kg
Whole machine power 3.5KW
Power supply voltage AC220V
Air pressure 0.6-0.8Mpa T
Turntable speed 0~12 rpm
Control System
PLC programmable control, the number of winding layers, the number of times, the top height, and the number of reinforcement layers can be directly set on the panel. Only the photoelectric switch is required to detect, and the whole packaging process can be completed, automatically and manually switched at any time. Selected electrical control components, high reliability. The photoelectric switch automatically senses the height of the cargo. Automatic loading, film loading, film breaking, and shipping.
Turntable drive: The speed of the turntable is 0~12rpm, the speed is adjustable by frequency conversion, and the turntable can be accurately positioned. The turntable is automatically reset after packaging, made of pure steel with high wear resistance. Tugboat support structure
Thin film system:
The film frame dynamic pre-stretching mechanism, the pre-stretching can reach 250%. The electronic constant tension control of the film frame can adjust the rising and falling speeds respectively, and the film feeding speed can be adjusted. The winding numbers of the top and bottom are individually adjustable; the follow-up mechanism of the film system, just pull it
Column part: Double chain transmission, stable and reliable;
Packaging material:
LLDPE stretch film
Stretch film technical indicators: The shrinkage rate is 70% in the longitudinal direction and 30% in the transverse direction; the tensile strength is 27MPa in the longitudinal direction and 29MPa in the transverse direction
Elongation at break: 360% in longitudinal direction and 510% in transverse direction; thickness: 17~35μm
Film roll specifications: Φ200-Φ260mm (outer diameter) x500 mm (width)
Membrane core specifications: Φ76.2 mm (inner diameter of the core) x520 mm (width)
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by wrong operation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
