YQPC-50
YQ
Introduction:

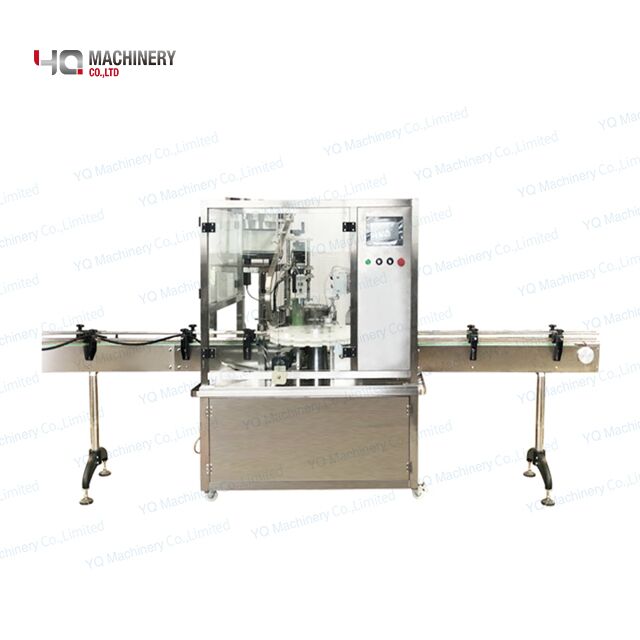

Pick and Place Screw Capping Machine is versatile, self-supported on stainless steel leg with height adjustment system. The machine is precision built on sturdy welded stainless steel Frame structure.

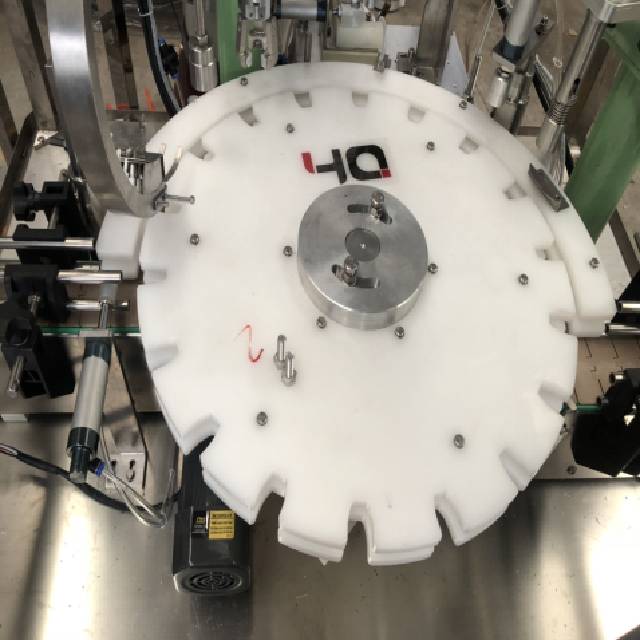

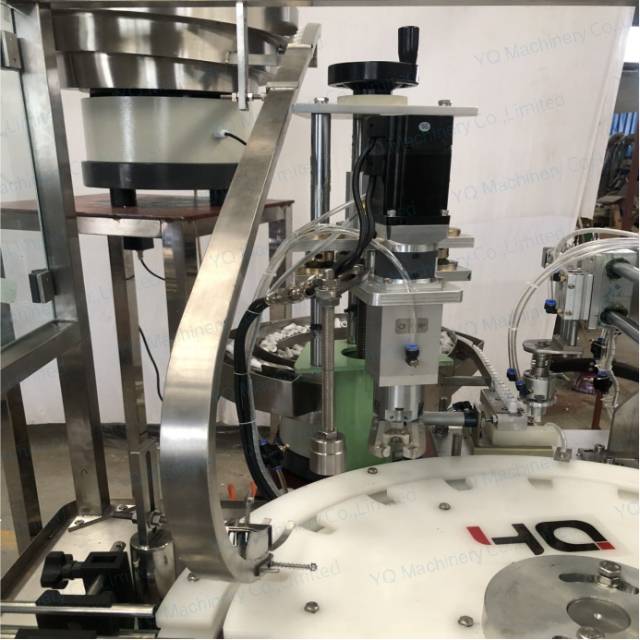

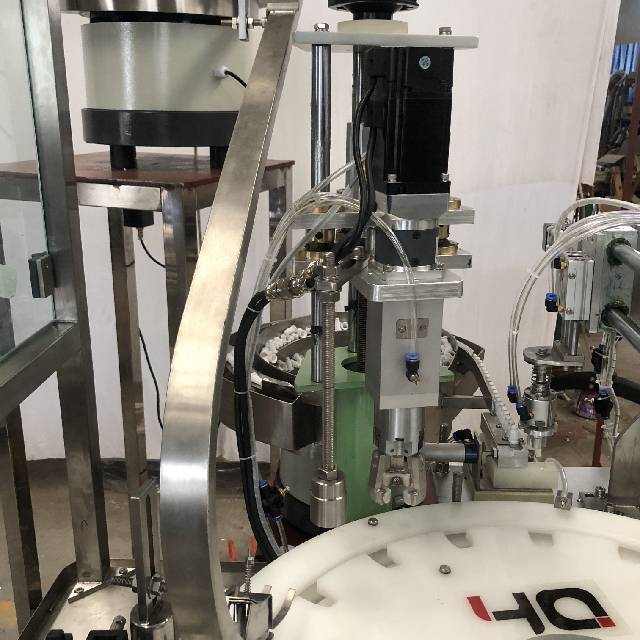

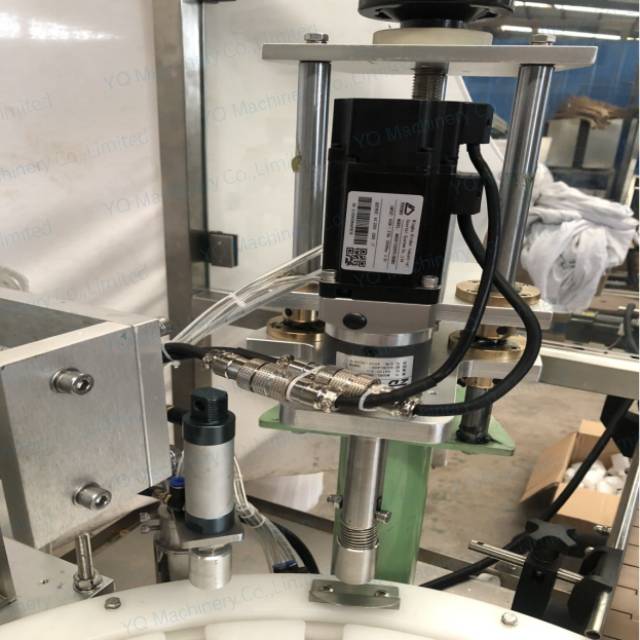

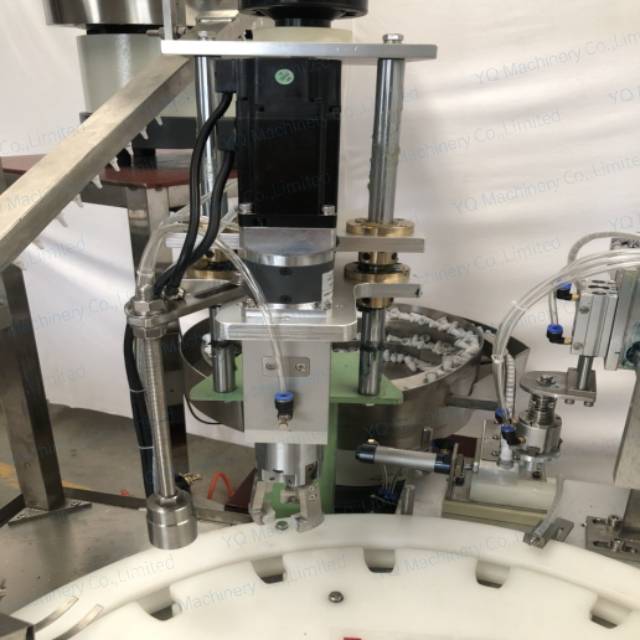

The container moving on conveyor belt are fed to star wheel, bringing the container below sealing head in indexing manner. Meanwhile the rotating head picks up cap from the cap star wheel which is received from delivery chute of cap feeding bowl, where the body and neck are positioned below the rotating head where the sealing head is performing perfect sealing operation. The rotating head is designed to seal container according to pre-set magnetic torque.
Features:
PLC Controls.
Motorized Height Adjustments.
Acrylic cabinet.
Safety Guard for Operation and Protection.(option)
Specially designed hopper is to increase storage capacity of bowl.
Cap Elevator for Auto loading of Cap in Cap Feeder / Bowl(option)
All contract parts are made of Stainless Steel
Technical Parameter
Power supply | AC220V / 50Hz |
Power | 1500 W |
Cap Diameter | 10~100mm |
Capping speed | 20-30 bottles/min |
Suitable bottle height | 50~280mm |
Air sauce pressure | 0.6-0.8MPa |
Net Weight | 500kg |
Package size | 1800*1000*1600mm |
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
After-sale service:
1. Instruction for Installation and Debugging
Before delivery, we takes responsible for debugging of machine, in order to make sure the provided machine could be safely and smoothly put into operation.
We also take responsibility to have debugging overseas, and Client abroad please sends invitation forward of time to engineer, provides the engineer with round-trip tickets, accommodation, vehicle and $80 per day salary.
2. User Training
Before delivery, we will take responsibility to indoctrinate technical training to the users so that they could understand the machine features and could operate the machine by themselves.
3. Warranty Period
The warranty period for machine is one year with a life long maintenance. If the user requires special quality guarantee, other stipulated warranty period may be made after mutual agreement.Mechanical models are standard, make special design according to customer requirements.
