Video 2 neck handle applicator
Introduction:
YQ machinery is leader in the manufacture and marketing of plastic handle application machines for PET or HDPE bottles. Through its long experience and the widest range in the market,We provide solutions for all its customers production needs of neck handle applicator.
YQ machinery neck handle applicators systems allow the insertion of neck handles, lateral handles, umbrella handles, and handles buckets for low, medium, and high production rates.

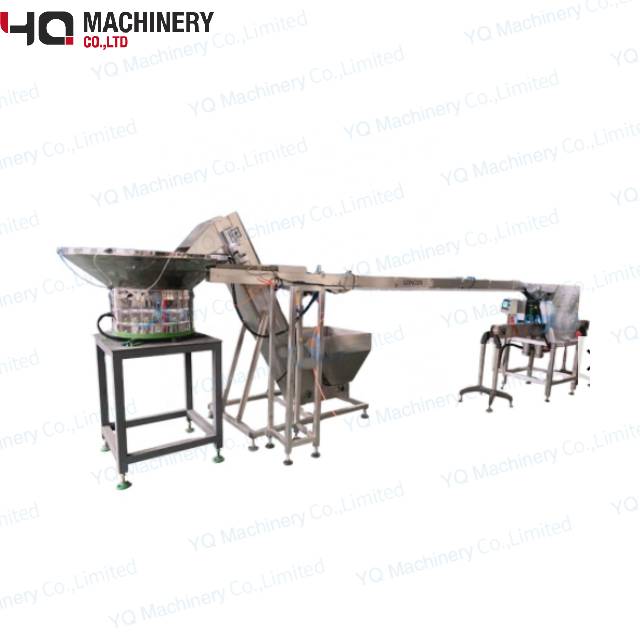

Handle applicator performs the orientation and insertion of polyethylene handles (PE) on PET bottles (from 1 to 10 liters). It is based on a linear machine with continuous movement. It is appropriate to be installed either after the blower in blow molding lines or after the filler, within the filling line, over an existing conveyor and after the capping system.

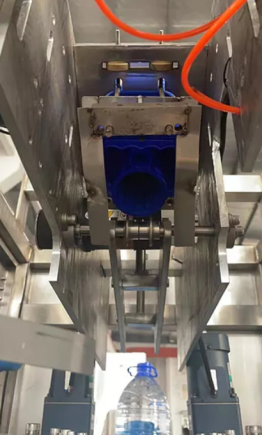

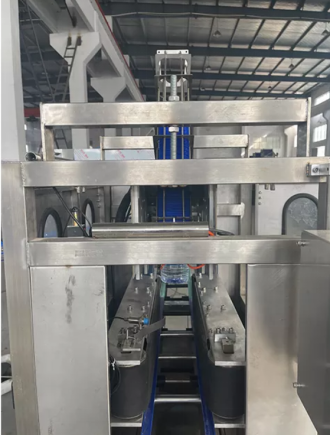

Detailed images

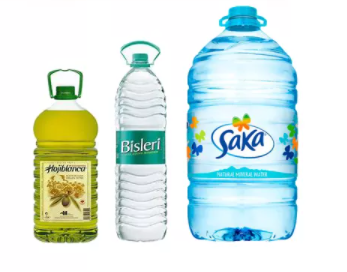

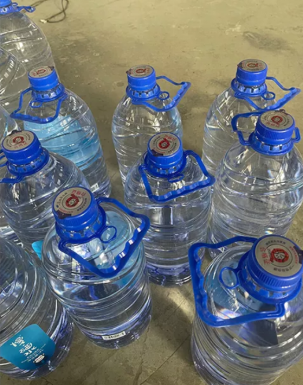

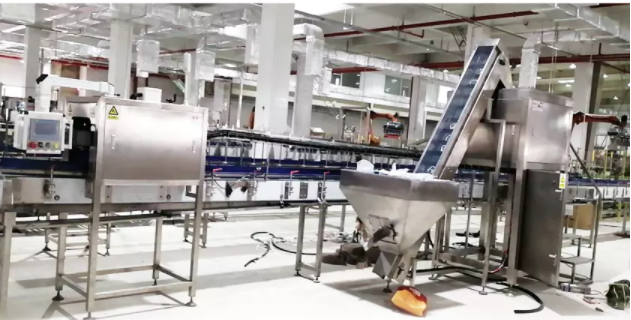

Application
Working Process:

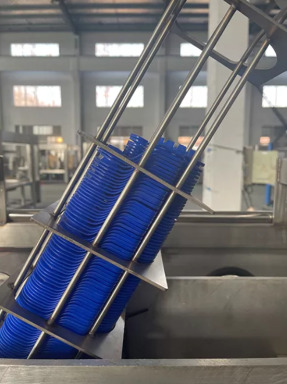

The plastic handles are previously oriented by means of a vibrating hopper, which provides to align the handles. Through a gravity conveyor, equipped with jets of compressed air for the advancement of the handles, it transfers the handles to the “over-under” selection area which is carried out by means of an electronic device equipped with feelers and / or photocells for the determination of the right orientation.

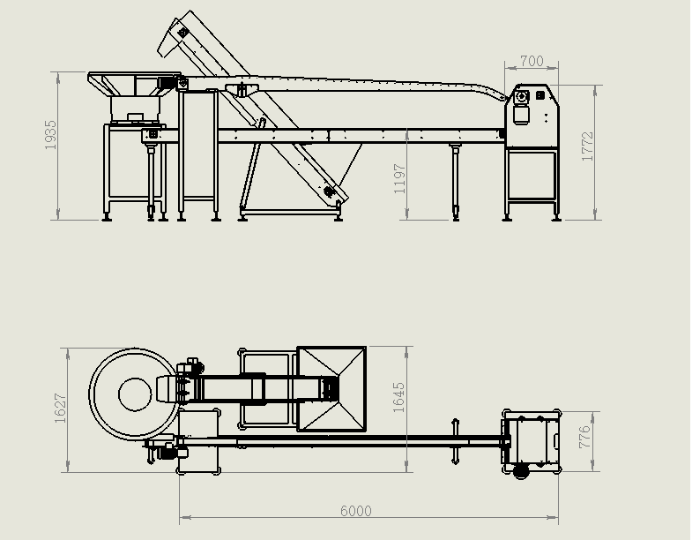

Drawing:
Technical Parameter:
No | Model | YQHA-100 |
1 | Producing capacity | 1000-300 bottles per hour ( adjustable ) |
2 | Bottle volume | 1L-10L ( customized ) |
3 | Power | 2.5kw |
4 | Input power | 110V-480V ( customized ) |
5 | Overall dimension | 6000mm*1560mm*2740mm |
6 | Weight | 600kg |
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by wrong operation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
