YQFS-40
YQ
Introduction:

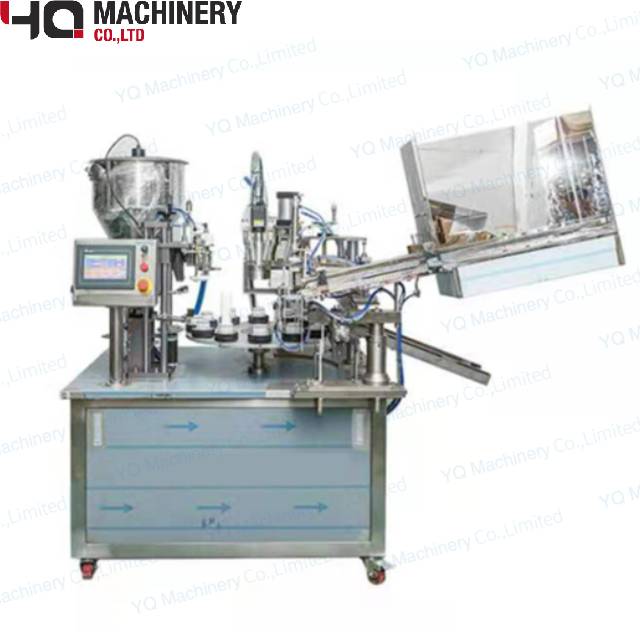

Automatic tube filling and sealing machine is used for filling of polyethylene and laminated tubes with gels, creams or other fluids, sealing them with hot air, stamping date and / or batch No. and cutting excess plastic on the tube ending, which arises during the tube sealing.
This kind of tube filling and sealing machine is capable to handle different types of viscous and semi-viscous products like as cosmetics, ointment, toothpaste, foodstuff, pharmaceutics, and shaving creams and so on. Control with PLC based and touch screen control panel to get the world class performance.
Features:
• The tube filling and sealing machine is made of high quality stainless steel 304
• All elements having contact with product are made of high quality stainless steel 316(option)
• Electronic control of sealing parameters and process with saving option
• Filling accuracy error: < ±1 % of volume
• Hot air sealing technology
• Single or dual sided coding with set of fonts included
• Output: 20-50 tubes / min

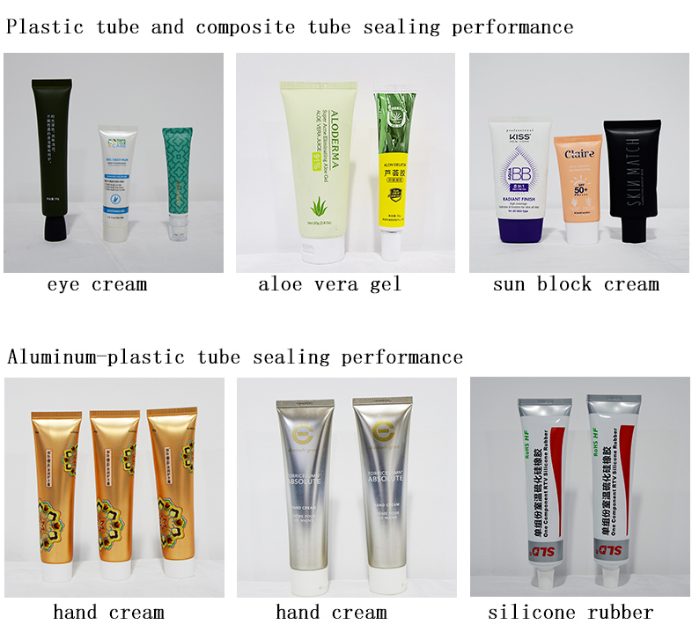

• Works with all plastic and laminated tubes
Application
Option for tube filling and sealing machine:
• Magazines and Bulk Loader
• Date Coding Embossing
• Chiller• Automatic Tube Feeding Magazine
• Change Parts for Lot Exp and Apha Numeric Lettering Kits
• Automatic Tube Elevator Loader

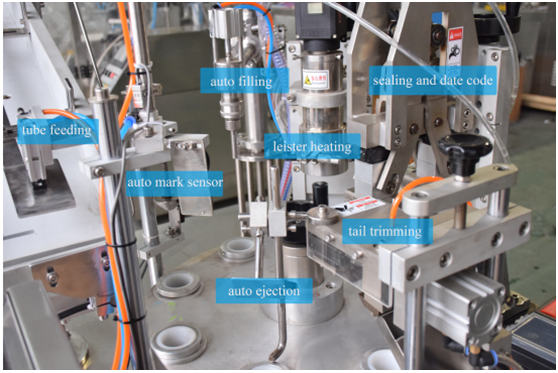

Working Station

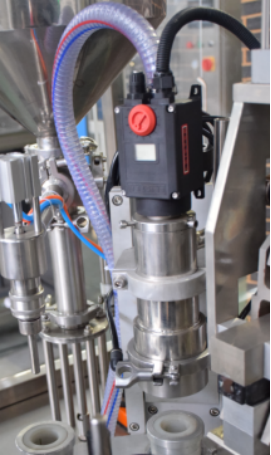

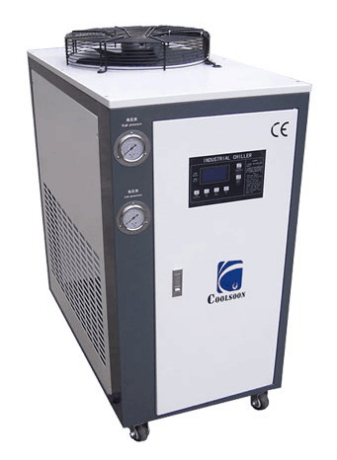

Leister Heating gun with digital display Water chiller
(Switzerland origin )

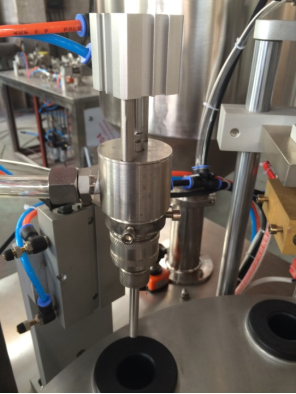

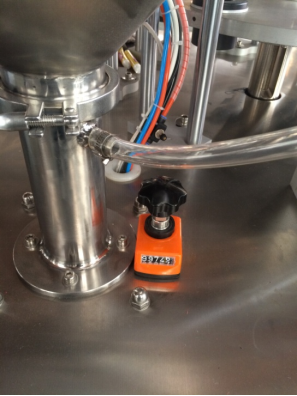

Filling volume adjust Filling nozzle with cylinder

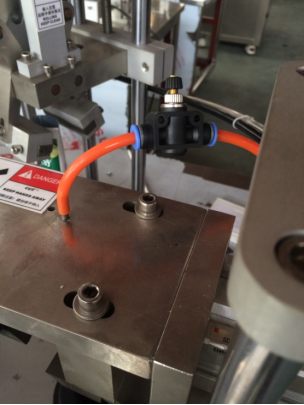

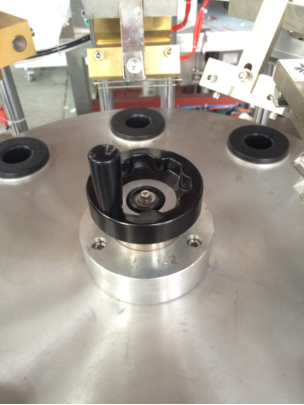

Air Blower for tail trimming Manual height adjustment
Technical Parameter
Machine Model | YQFS-40 |
Voltage | 220V/110V 50-60Hz |
Power | 2.6KW |
Hopper Capacity | 30L |
Filling Range | 5-50ml / 10-100m l/ 25-250ml |
Filling Accuracy | ±1% |
Sealing Speed | 20-40pcs/min |
Sealing Diameter | 16-50mm |
Sealing Height | 70-210mm |
Sealing Method | Hot air sealing |
Ultrasonic Frequency | 20KHz |
Air Pressure | 0.6-0.8Mpa |
Application | All Plastic and laminated tube |
Machine Material | Stainless Steel |
Machine Weight | About 500kg |
Machine Size | About 1500*1100*1650mm |
Video 2
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by wrong operation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
