Application:
Ideal filling equipment for medicine, daily chemical, food and special industries.
Performance and characteristics:
1. Simple structure, reliable transmission and convenient maintenance.
2. The measurement accuracy is as high as ±1%, and there is no dripping phenomenon
3. Fast filling speed and automatic continuous filling. According to actual needs, you can freely switch between "manual" and "automatic" filling states.
4. Use high-quality SUS304 stainless steel, polished inside and outside, in line with GMP standards.
5. Feeding method: ordinary gravity type.
6. In the case of an emergency stop, just press the emergency stop switch, the piston will automatically return to the initial position, and the filling will stop.
7. This machine is driven by compressed air control, so it is especially suitable for use in a humid environment with explosion-proof requirements and has a high degree of safety.
Working principle:

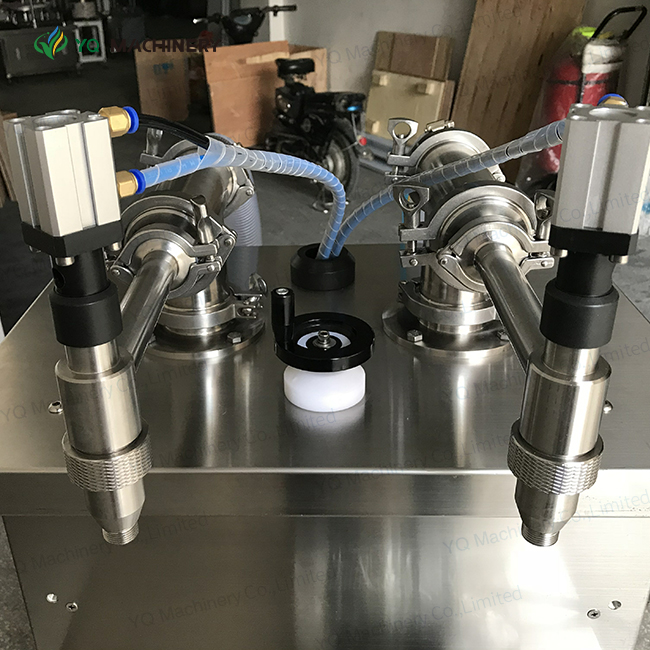

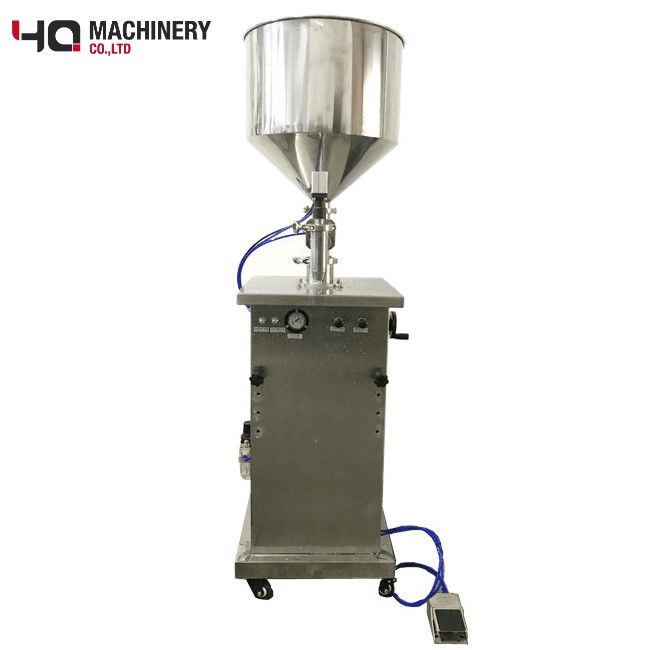

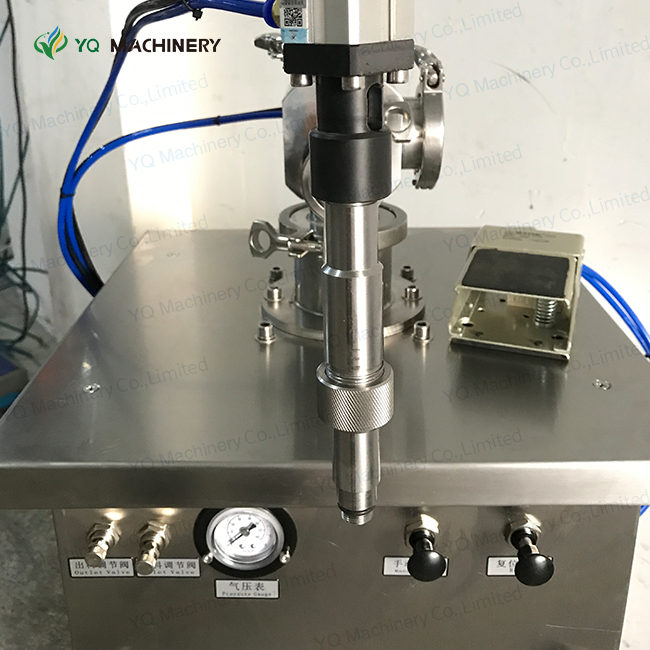

Tabletop piston filling machine is highly accurate, versatile, and extremely user friendly. This volumetric piston filler draws liquids and other low viscosity products directly from a tank or drum which eliminates the need for a product hopper. This piston filler can also be used as a metering pump to dispense a controlled volume if necessary. Dis-assembly and cleaning is extraordinarily easy and is usually accomplished in a matter of minutes (no tools required). The operator drops a line of flexible tubing into a drum or tank, adjusts the volume of fill to the desired setting and places an empty container under the filling nozzle. With a simple press of a foot pedal, the exact quantity of product is drawn from the drum and dispensed into the container. The machine operates one fill at a time, and stands by until the foot pedal is depressed again.
Technical Parameters
Type | Filling range | Ideal Filling Range | Filling accuracy | Capacity (per/min) | Size(mm) | Air source |
YQVF-100 | 10~100ml 0.35~3.53oz | 20~100ml 0.71~3.53oz | ±5 ‰ | 20-38 | 1330*500*450 | 0.4-0.5MPa |
YQVF-250 | 25~250ml 0.88~8.82oz | 50~500ml 1.76~8.82oz | ±5 ‰ | 18-30 | ||
YQVF-500 | 50~500ml 1.76~17.64oz | 100~500ml 3.53~17.64oz | ±5 ‰ | 15-22 | ||
YQVF-1000 | 100~1000ml 3.53~35.27oz | 200~1000ml 7.05~35.27oz | ±5 ‰ | 10-18 | ||
YQVF-2000 | 200~2000ml 7.05~70.55oz | 400~2000ml 14.11~70.55oz | ±5 ‰ | 7-13 | ||
YQVF-5000 | 500~5000ml 17.64~176.37oz | 1000~5000ml 35.27~176.37oz | ±5 ‰ | 5-8 |
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by wrong operation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
