Technical Parameter:

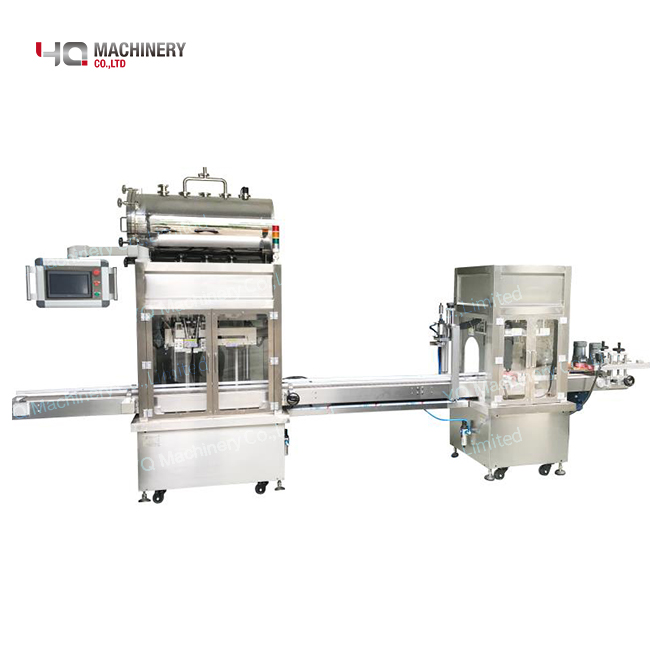

1. Equipment name: high-speed double-head tracking filling and capping machine
2. Appearance size: 4200mm*880mm*1830mm; Net weight: 800KG
3. Working process: Manully put bottle-Automatic double heads tracking filling-Manually put caps-Automatic capping.
4. Machine volume and capacity:
A. Standard tank capacity (standard) 100ml~1000ml (45~60 bottles/min) self-extracting type (200L of automatic refill storage tank can be added);
Take the production of shampoo as an example: 250ml (over 60 bottles/min); 500ml (50 bottles/min); 1000ml (45 bottles/min)
B. The capacity of customized cylinder is 300ml~3000ml (non-standard) (40~60 bottles/minute) must be equipped with automatic replenishment storage cylinder 200L;
C. The capacity of customized cylinder is 500ml~5000ml (non-standard) (22~60 bottles/min) must be equipped with 200L of automatic replenishment storage tank;
Take the production of laundry detergent as an example:
1.2000ml (40 bottles/minute; 2400 bottles/hour); 3000 pieces/8 hours (6 bottles); filling 35 tons of materials/8 hours;
2.3000ml (35 bottles/minute; 2000 bottles/hour); 3000 pieces/8 hours (5 bottles); filling 45 tons of materials/8 hours;
2.5000ml (20 bottles/minute; 1200 bottles/hour); 2400 pieces/8 hours (4 bottles); filling 45 tons of materials/8 hours;
5. Equipment filling accuracy: ± 0.5% (2-10g)
6. Function and structure description:

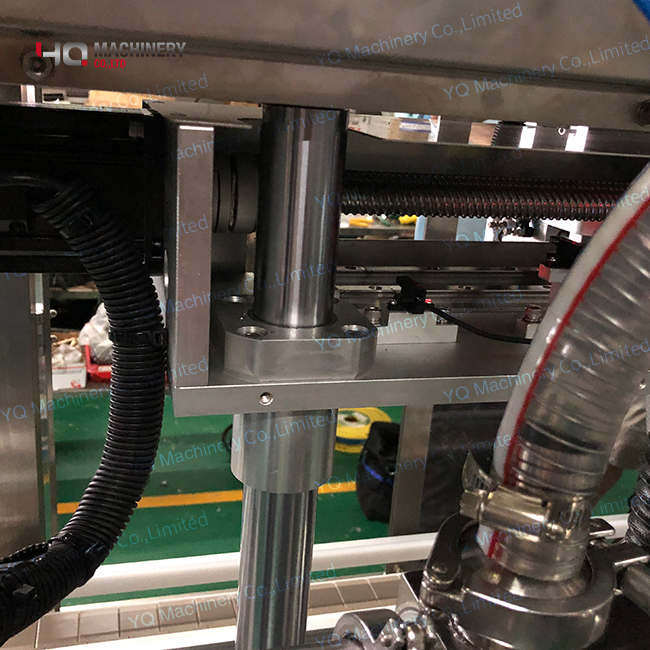

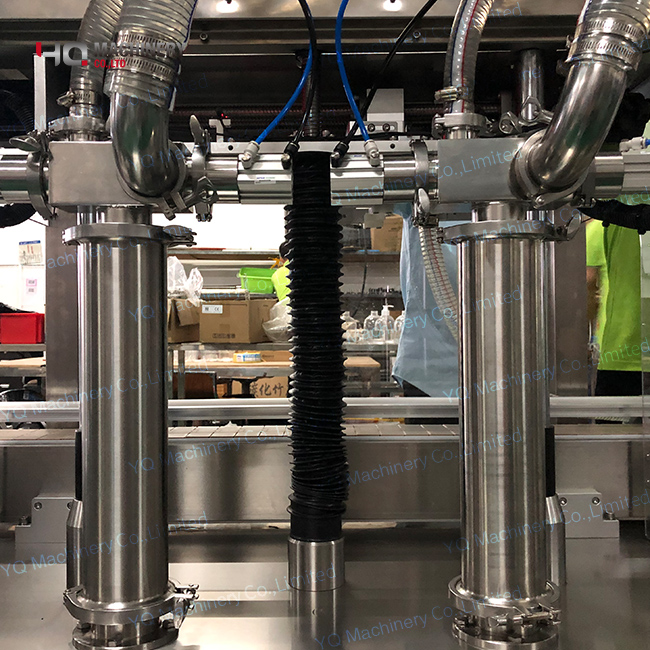

1. Filling principle: Servo motor connected to drive piston rod quantitative filling method;
2. Feeding method:
a/Self-pumping (standard machine) (the feed tube is inserted into the customer's storage tank, and it is recommended to use a large bucket of 500 kg or more);
b/The top-mounted storage tank (200L) + pumping automatic feeding and feeding, see-through window type; (not standard);
c/External mobile storage tank (200L) + pumping automatic feeding and feeding, non-perspective type; (not standard configuration);
3. Transitional coding device: the width is adjusted by hand, customers can install the nozzle of the printer on the device, which is suitable for bottom coding products, and products without coding. This device can also make the product transition to the packaging line smoothly; (not included Standard).
4. New product tuning five steps:
【1】Adjust filling capacity: double cylinder independent servo control capacity — conveying value;
【2】Adjust the height of the filling nozzle: subject to the height that can clamp the bottle nozzle-conveying value;
【3】Adjust the width of the guardrail: take the clamping width of the screw cap as the standard one conveying value;
【4】Bottle width: use bottle width-1 to convey the value;
【5】Adjust the height of the screw cap: take the wheel flat cap as the standard one conveying value.
About packing
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our service
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by wrong operation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
