Introduction:
YQ machinery offers a powder filling machine line which is ideal for everything from chemicals to spices. We supply both automatic and semi-automatic equipment which has been proven to be safe and effective. Our auger powder filler machines and vertical form fill and seal machines ensure products like sugar, powdered milk, detergent, and flour are packaged accurately.
automatic auger filler is a complete, affordable solution to your filling production line requirement .It’s built with two separate hopper servo motor driven auger filling heads,an independent motorized chain conveyor mounted on a robust, stable SUS304 frame base with product collection hopper, container feeding screw reliably move and position containers for filling, dispense the required target of product with 2 times filling, then quickly move the filled containers away to other equipment in your line. Easy and friendly operation of the PLC control system provides vary selection and functions adjustment.
Applicable types:
flour, seasoning powder, salt, sugar, flavoring, chemical powder, pharmaceutical powder, probiotics, enzyme, biotechnology powders, etc.
The auger filler machines utilize high-tech brushless, direct drive servo motors, and state of the art motion control electronics for auger control. The powder filling design allows for easy cleanup, maintenance, and rapid changeover. Available in fully automatic configurations auger fillers are the best choice for any customer that desires accurate, repeatable filling of powders, granules, and other similar products.
These auger fillers have a touch screen that is linked to a PLC (Programmable Logic Controller) that operates the powder filling machine. The machine operating program gives the operator the ability to make fine adjustments to the machine as needed during a shift. The logic continuously monitors the machine for correct operation along with built in safety checks.
Features:
A.Fill and pack the powder products into cans and bottles etc.
B.Monoblock type can save space for production
C.Easy to change parts and be suitable for different sizes of container.
D.Range of filling is adjustable,suitable for small doses of powder,small granule etc.
E.Reduce dust emission problem
F.Screws are all customized.
G.Packing speed: about 20-30 bpm, vary with different products and filling weight.
H.High accuracy,adopt two times filling.

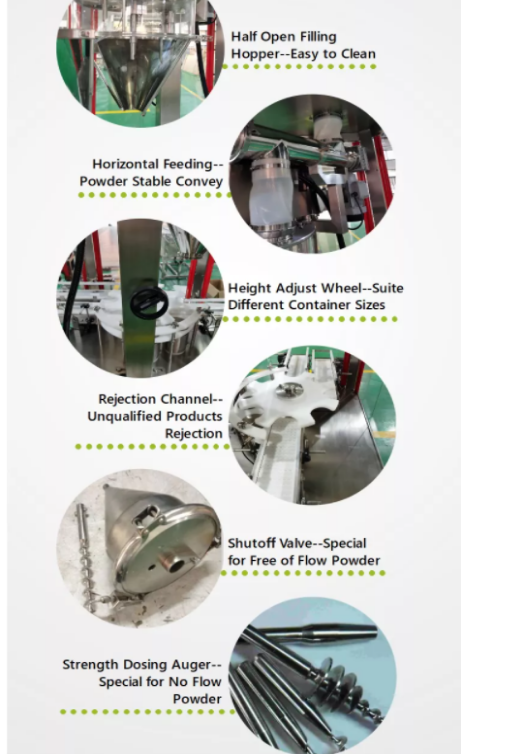

Details
Technical parameter
Container size | Round shape,diameter φ50—180mm ;height 50-350mm |
Capacity | 20-40 times/minute |
Filling range | 10-2000g(the range is large different and need to change screw) |
Accuracy | +-1% |
Filling hopper | 20/50L (Approx. 1%) |
Container | Bottle/ Jar/ Mental can |
Power consumption | 3.5kw |
Compressed Air | 0.6-0.8Mpa |
Power | 220/380V;1/3P;50/60HZ |
WHAT OUR POWER CAN FILLING MACHINE CAN DO FOR YOUR PRODUCTION?
Whether you have a new production facility, you’ve expanded your product range, or you need to replace older equipment, a modern powder auger filling machine will enhance your operations. It will enable you to package your product more efficiently and streamline your production. If you are not sure which powder filling machine is right for you, we will help you decide.
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by wrong operation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
