Introduction:
YQ MACHINERY is a well-established powder canning line manufacturer working with qualified professionals to provide high-quality products. We pride ourselves on ensuring that powder packaging processes are done with ease. We feature different jar bottle tin can powder packaging machines in our powder canning line category to give you a variety of options with capping,labeling and packing machines. All our powder canning machines are designed to give you the best service and work with accuracy to impact your business growth.
Powder canning lines are equipped with a high-precision features. The metering can reach a tolerance of ±1%. Our quest for filling accuracy can be illustrated below by our definition and examples of accuracy.The filling volume of each filling unit of Auger’s filling and packaging machine is controlled by corresponding pulses from the auger shaft driven by a servo motor system. Simultaneously, through the weight data fed by the linked feedback system, the system can automatically adjust the auger shaft’s rotating speed. This feedback system ensures that the accuracy of the filling volume meets the design and remains stable. The hosting server receives the count of pulses. Then it adjusts each filling amount and the internal pressure in the raw material barrel to maintain the stability and high accuracy of the filling output.
Application:
Milk powder, soy milk,flour, salt, sugar, baking mixes, spices and ground coffee etc.
Features:
· The auger control system employs an HMI interface with a touch screen, making the operation convenient and easy.
· A high-quality servo motor drives the auger shaft and ensures superior metering accuracy.
· The metering and filling are accurately controlled by corresponding pulses generated by a servo motor driving an auger shaft.
· A high-quality PLC control system ensures maximum control performance stability.
· E-class explosion-proof mixing motor avoids dust explosion.
· The filler’s surface and internal transmission are equipped with a dust-proof mechanism, preventing dust from damaging machine parts.
· A level control mechanism connected with a raw material supply system for automatically supplementing filling materials.
· The auger shaft’s rotating speed and the consequent filling quantity can be monitored and micro-adjusted for remaining filling accuracy and stability. This adjustment is made through a feedback system that counts pulses from the auger shaft’s rotation.
Technical parameter
Container size | Diameter:30-160mm, H50-260mm |
Filling weight | 10-5000g |
Filling accuracy | ≤500G,≤±1%;>500G, ≤±0.5% |
Filling speed | 10-20bottles/min (single head), 20-40 bottles/min(double heads) |
Voltage | 3P, AC208-415V 50-60HZ |
Air consumption | 6KG/cm2, 0.05m/3/min |
Hopper volume | 50L (sinlge ), 30L and 50L (double) |
Power | 2.3KW |
Machine weight | 350kg |
Machine dimension | 2000*1070*2120mm |

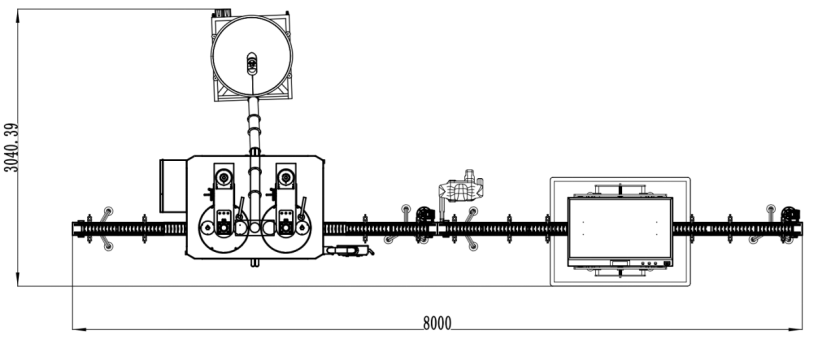

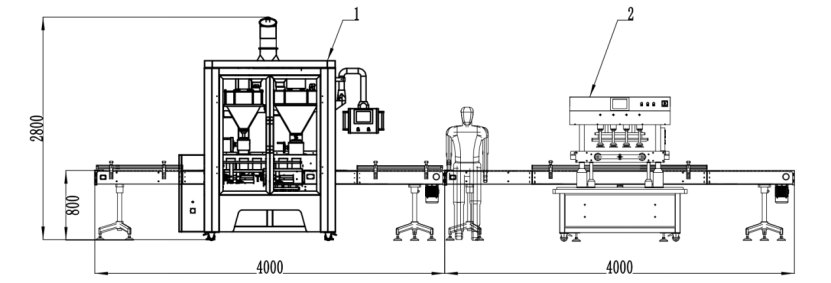

Drawing:
Options:
1.Rotary Infeed Table:
In the powder canning line, we feature the use of a rotary can infeed table that is designed to be automated. 900mm diameter table with variable speed, this will help you get better productivity from the canning line, automatically providing a consistent flow of cans.
2.Vacuum and Nitrogen Sealing Machine
Our vacuum and Nitrogen sealing machines offer an automatic option for the sealing involved in the powder canning process,which help to extend the shelf life.The machines work by first vacuuming the cans and filling them with nitrogen gas and sealed at last. It is suitable for metal cans, aluminum cans, tin cans seaming, best for milk powder, coffee powder etc.
3.Capping Machine
Our automatic Capper for powder canning packaging lines here can be chose according to requirement. It is flexible, durable and works with most containers. It’s built on a heavy duty, good welded, stainless steel frame to provide durability in almost any packaging environment.
4.Can Labeler
Our can labeler features great precision in the application of labels on the products you are working on. The labels can either be used on the can body or the cap featured on the can.
5.Can Coder Machine
When it comes to including barcodes and other relevant information, our can coder machines are the perfect option. They work to ensure that you easily communicate with customers what your product is about with complete transparency.
6.Rotary Can Collection Table
It is positioned at the entrance of a conveyor belt, or directly at the machine to be fed, the rotating table with sides acts as an “accumulation and distribution station”. It performs the function of collecting and accumulating cans.
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by wrong operation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
