Introduction:
A good powder dosing machine will provide a smooth flowing operation that enhances your business while increasing your profits.

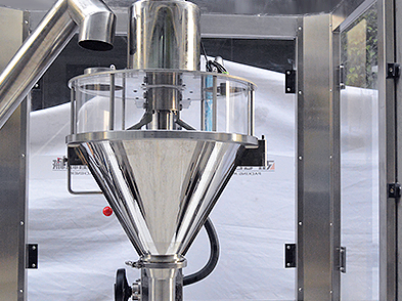

Automatic Auger Fillers with a variety of automatic container handling systems designed to fill powder
products into rigid containers including bottles, jars, buckets, boxes, drums and pails. Single-Head, Multi-Head, Multi-Spindle and rotary continuous motion auger filler with Automatic Container Handling designed to meet your desired fill speed and accuracy requirements.
From cake mix to ground coffee, if you make it, YQ powder dosing machines can fill it. No matter your application, our strict engineering and manufacturing standards help you reduce expensive downtime and needless waste.
automatic powder dosing machine is a complete, economical solution to your filling production line requirements. It consists of the industry-proven powder filling head, an independently motorized chain conveyor mounted on a sturdy, stable frame base, and all necessary accessories to reliably move and position containers for filling, dispense the required amount of powder product, then quickly move the filled containers away to other equipment in your line (e.g., cappers, labelers, etc.). PLC control system provides precise selection and adjustment of fill amounts and machine functioning.
YQ machinery develops high-quality powder dosing machine with auger fillers, and the filling
outcome is comparable to the auger filling result of counterparts leading the international market. We understand that the size of powder particles influences fluidity and the amount of dust produced during the filling process. The size of powder particles also affects the internal pressure generated in the barrel and the auger shaft. The smaller the particles, the higher the fluidity, and the lower the stability of the internal pressure. Therefore, the technical details of the auger shaft in a filler are critical.

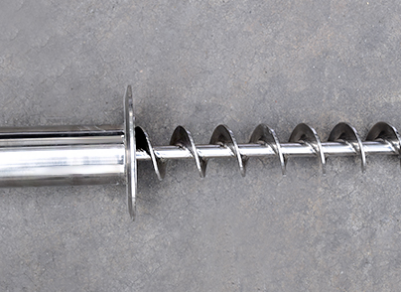

YQ machinery develop different auger shafts for filling powder of varying particle sizes. Our auger fillers can be classified into free-flow (ideal for powders or granules with good fluidity) and low-free-flow (ideal for filling powders with low fluidity).
Features:
l 30L/50L side opening Hopper, easy to clean.
l Packaging powdery bottle, change auger for different weight.
l Servo motor drive the auger and with load cell,reach high accuracy.
l Have one stir on the hopper, assure the powder fill in the auger.

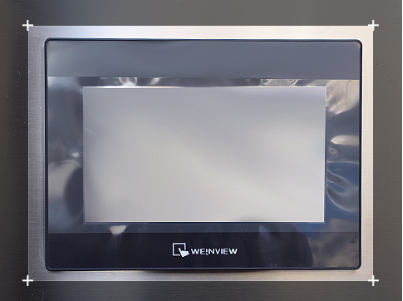

l Chinese/English custom your local language the touch screen.
l Reasonable mechanical structure, easy to change size parts and clean up.
l Through changing accessories, the machine is suitable for various powder products.
l We use famous brand PLC and electric, more steady.

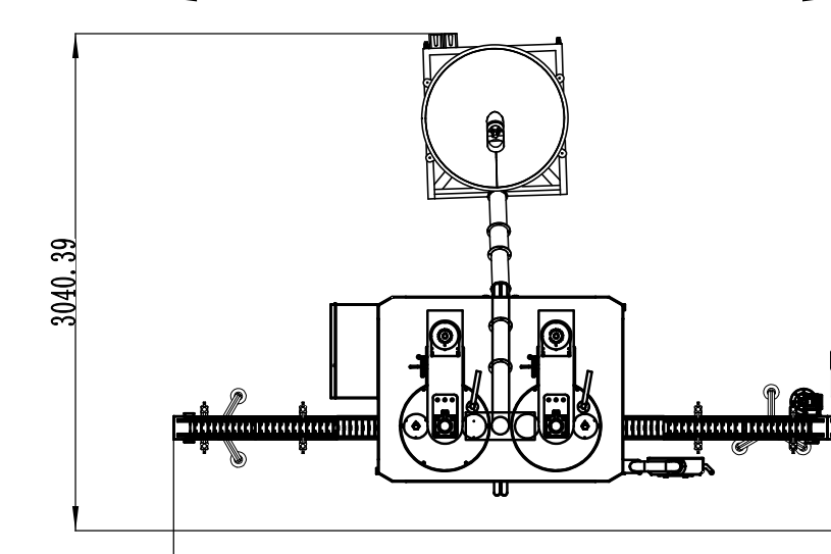

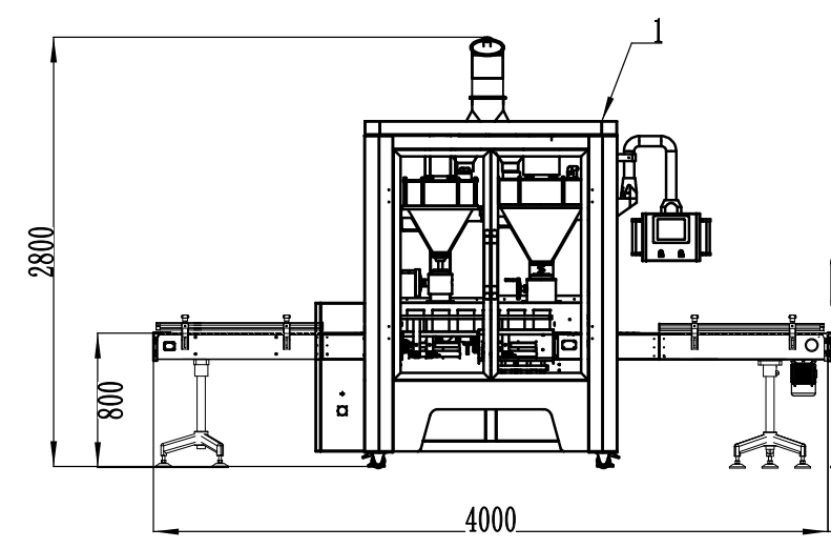

Drawing:
Technical parameter
Container size | Diameter:30-160mm, H50-260mm |
Filling weight | 10-5000g |
Filling accuracy | ≤500G,≤±1%;>500G, ≤±0.5% |
Filling speed | 10-20bottles/min (single head), 20-40 bottles/min(double heads) |
Voltage | 3P, AC208-415V 50-60HZ |
Air consumption | 6KG/cm2, 0.05m/3/min |
Hopper volume | 50L (sinlge ), 30L and 50L (double) |
Power | 2.3KW |
Machine weight | 350kg |
Machine dimension | 2000*1070*2120mm |
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by wrong operation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
