YQFC-4
YQ
Introduction:
YQ machinery manufacture this type of bottle capping machines for liquid packaging line. It is flexible, durable and works with most containers and caps. It’s built on a heavy duty,stainless steel frame with high quality.
Pump cap capping machine tightens trigger spray caps, lotion pump caps, mist spray caps and foam dispenser pumps onto plastic and glass containers. The Pump cap capper can screw all types of pump caps and standard screw-on caps ranging from 15mm – 130mm in diameter.
Features:
· Up to 2000 Bottles Per Hour
· Stainless Steel Frame Construction With Conveyor Belt
· East to Set-up. Easy to Adjust

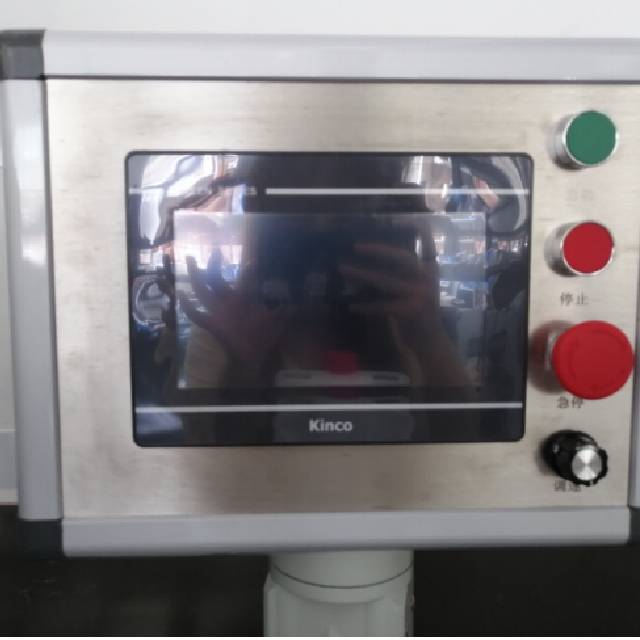

· Touch screen Display
· Calculates and Displays the Production Capacity (Bottles/Minute)
· With Cap Sorting Blow
· Excellent Repeatable Torque Accuracy

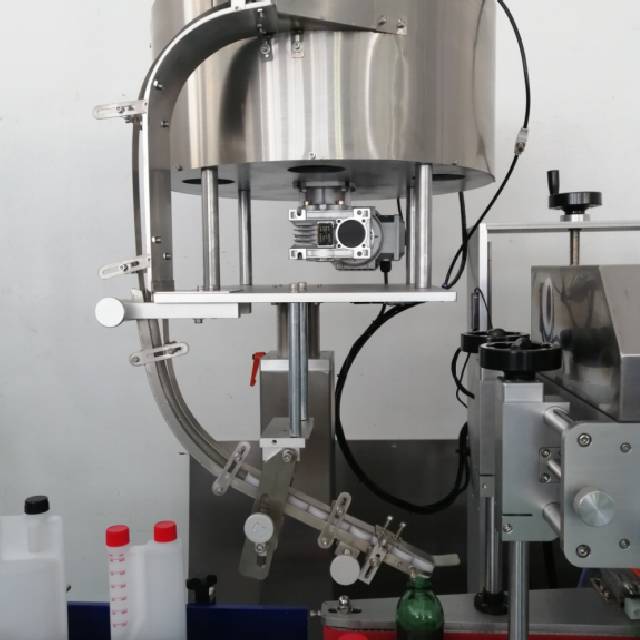

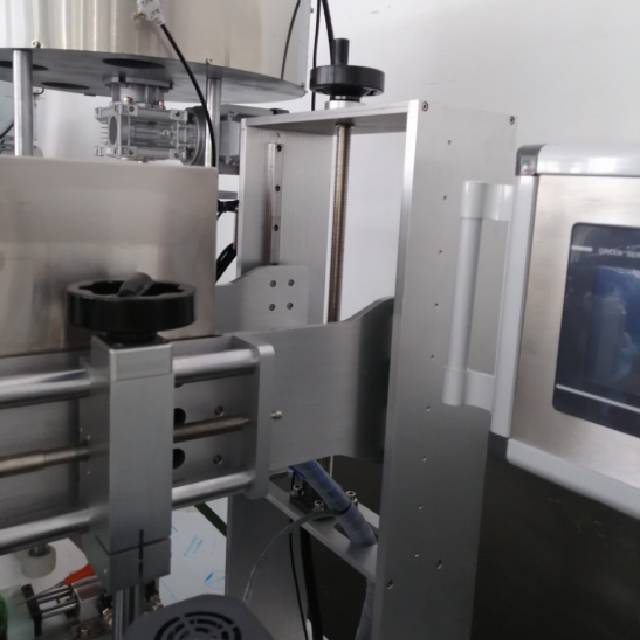

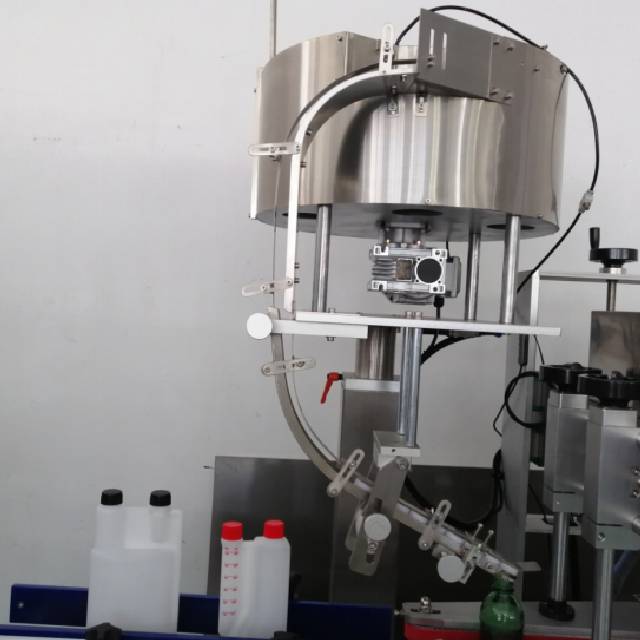

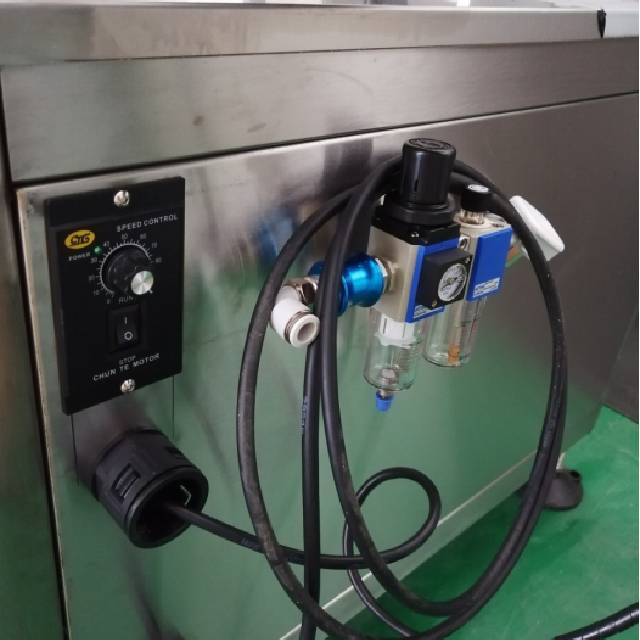

Detailed pictures:
Technical parameter
Model | YQFC-4 |
Power supply voltage (V / Hz) | AC 220/50 110/60 (can be customized) |
Power (W) | 1500 |
Sealing height (mm) | 38-300 (customizable) |
Adapt to cover diameter (mm) | 15-130mm (can be customized) |
Adapt to bottle diameter (mm) | 35-140 (can be customized) |
Working pressure (mpa) | 0.3-0.5 |
Output (bottle / min) | 30-40 |
Dimensions (L × W × H) (mm) | 2000X800X1600 |
Net weight (kg) | 250 |
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by misoperation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
