YQRC-20
YQ
Video 2
Introduction:

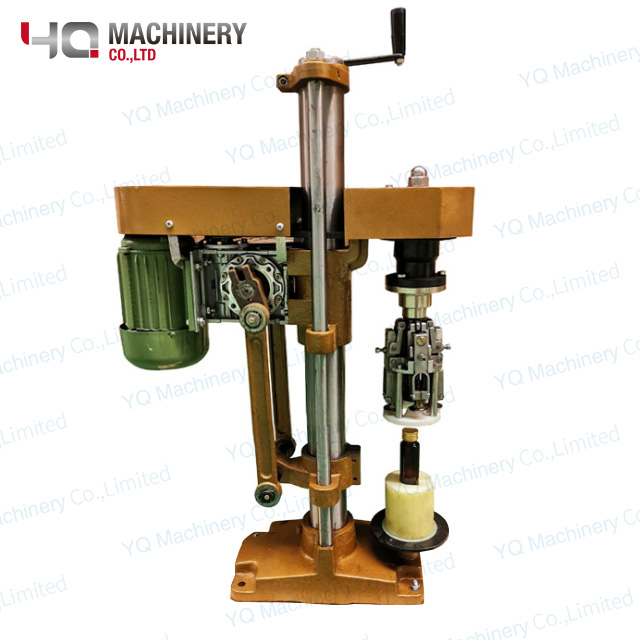

ROPP Capping machine is a Roll Over Pilfer Proof capper designed to thread and seal aluminum caps onto rigid containers. The ROPP capping heads can be adjusted for an assortment of container shapes, diameters, and heights. Designer beverages or champagne bottles are good examples of containers with ROPP closures.
ROPP capper is widely used for liquor, medical, pharmaceuticals, beverages, food, agrochemicals, edible oil, lube oil and misc. industries. Heads with low tension springs can be fitted to seal PET / PVC / HDPE bottle. Capping heads can be adjusted for any shape and sizes bottles. Capping heads with two threading and two sealing rollers for different diameters and heights (standard semi-deep drawn, deep drawn, extra deep drawn) of caps. The sealing & threading pressure can be easily adjusted. Centering guides fitted in the heads ensure that bottle is centered properly before capping to ensure precise and accurate capping.
Features:
· Simple operation
· Stainless steel capping head
· 4-Roll Capping Head for ROPP Closures
· No Cap, No Roll Head
· Push button activation
· Simple height adjustment
· Adjustable feet for easy leveling
Technical parameter
Power | 0.37kw/220v |
Capacity | 600-1200bottles/h |
Cap diameter | 16-35mm |
Bottle heigh | 60-350mm |
Weight | 84kg |
Dimension | 100*75*31cm |
How to use the ROPP capper
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by misoperation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
