Availability: | |
---|---|
Quantity: | |
YQF-2
YQ
Introduction:
The rotary cup filling and sealing machine can be used in food and daily chemical etc industries, such as sour cream, yogurt, cheese, butter, salad, mayonnaise, margarine, hummus, dip, salad dressings, seasoning, soup, chocolate, jelly, honey, jam, ketchup, chili sauce, lotion, cosmetic cream etc.
This model cup filling and sealing machine is designed for one cup or two cups per time.The filling part can be customized to customers’ product. The equipment function includes cup dispenser, filling, heat sealing, automatic cup exiting.

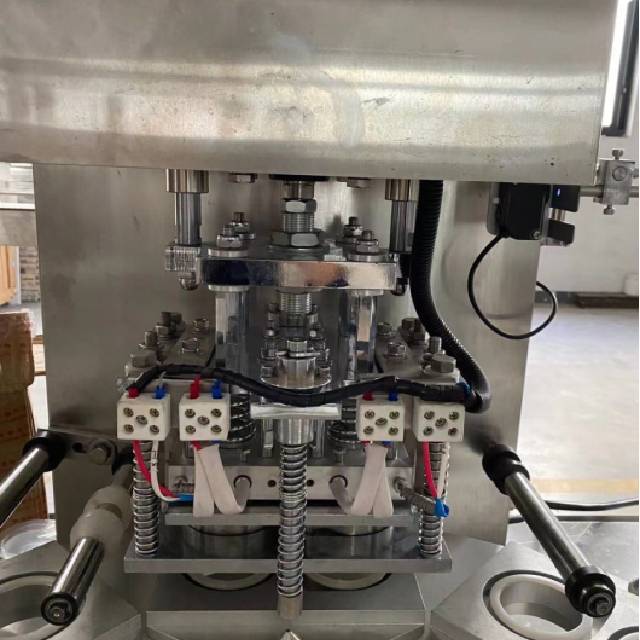

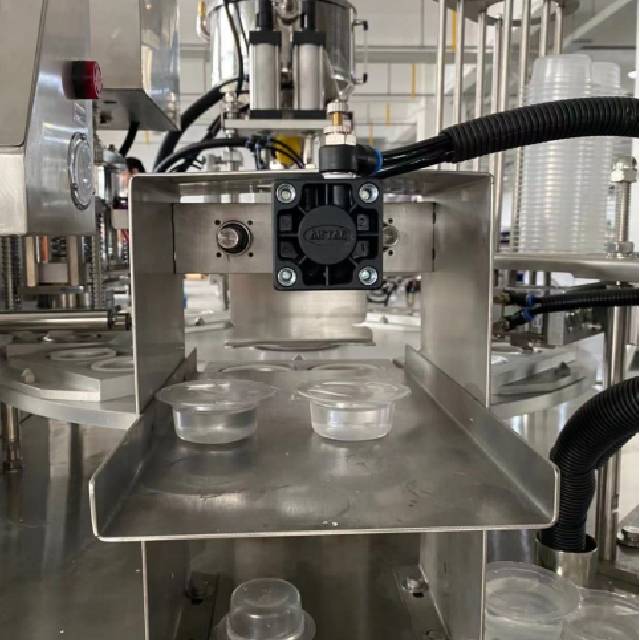

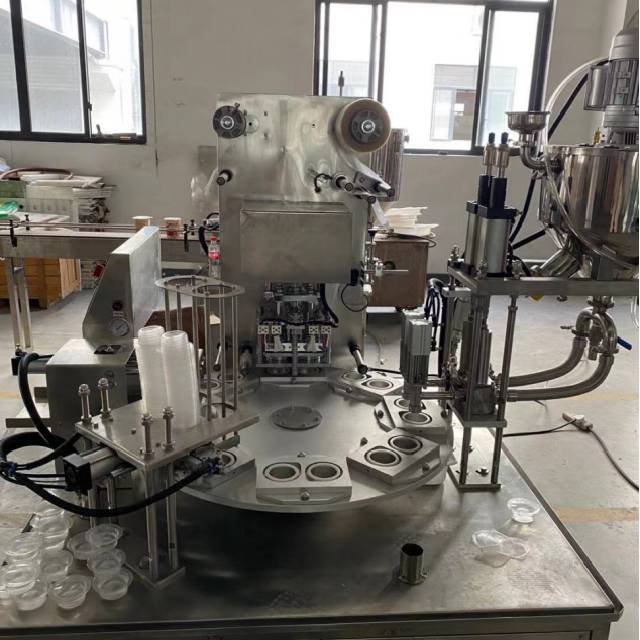

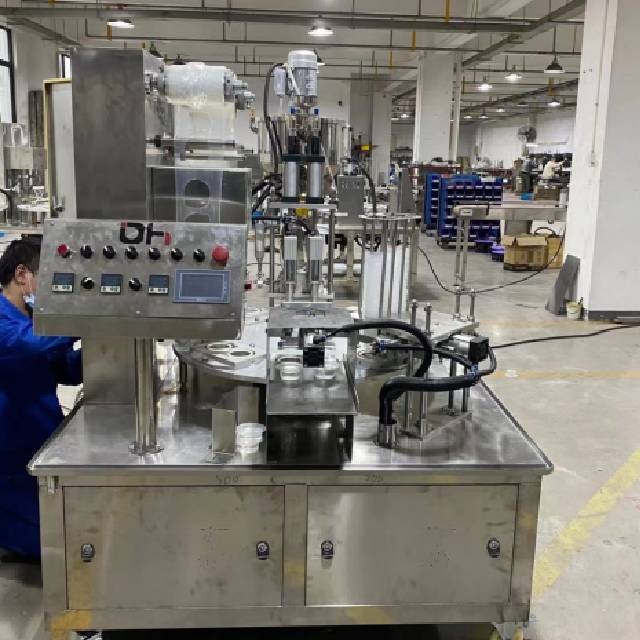

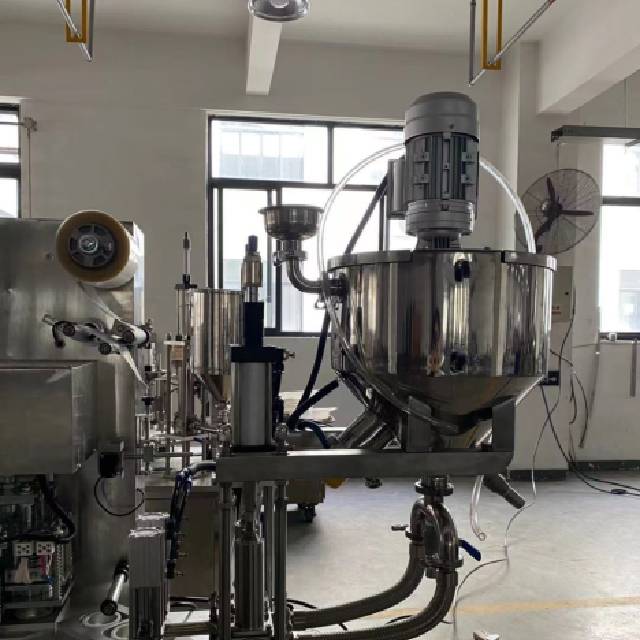

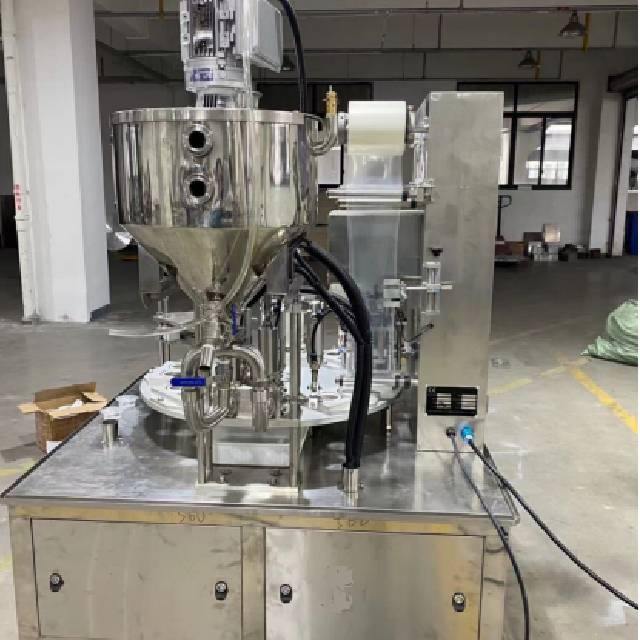

Detailed image
Optional Configuration:

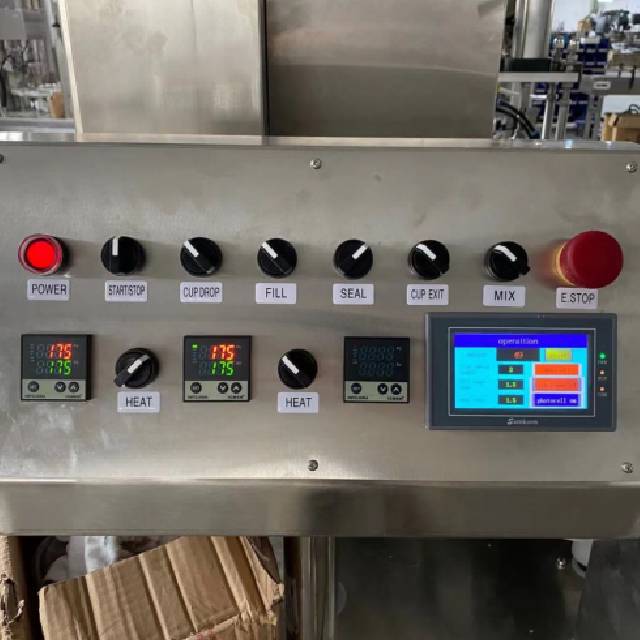

1.Operation panel: Touch Screen.
2.Servo motor driving.

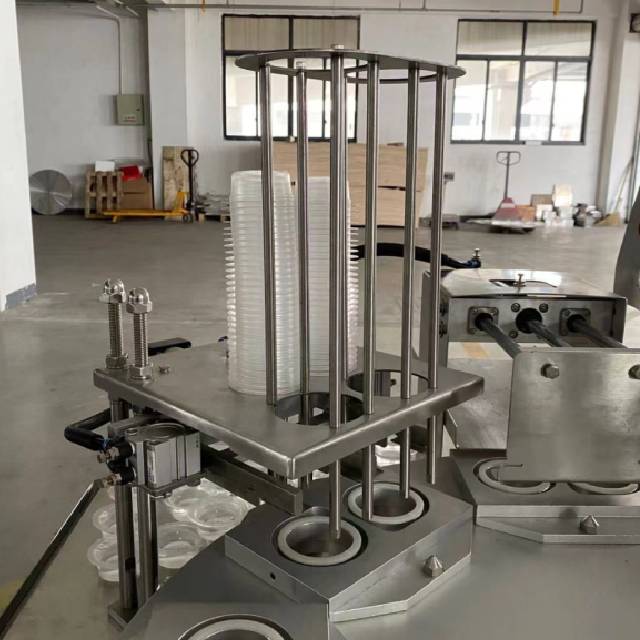

3.Empty cup dispensing function: according to different cups, some can be designed with vacuum sucker which can guide the cup enter into mold accurately.
4.Empty cup detecting function: no cup no filling or no cup machine stops.
5.Filling: cup lifting function.
6.Filling tank: mixing, level control, double jacket, CIP washing ball etc
7.Roll Film Storage Device.
8.Blank Film Fixer: to calculate the film length of cup for saving the film cost.
9.Eye Mark Auto Correction: Collocating with a photocell sensor of film pattern mark.
10.Color ribbon date printer for roll film.
11.Automatic cap placing system: put plastic cap after sealing.
12.Safety guard: it has safety switches which protect the operator.
13.Out-feed conveyor.
Application:
Working Process:
A.Pre-cut foil sealing
1. Automatic cup dropping
2. Automatic filling
3. Automatic foil suck
4. Automatic sealing
5. Automatic cup exiting
B.Roll film sealing
1. Automatic cup dropping
2. Automatic filling
3. Automatic sealing
4. Automatic film cutting
5. Wasted film recycling
6. Automatic cup exiting
.
Technical Parameter:
Model | YQF-1 | YQF-2 |
Production capacity | 800-1000 cups/h | 1600-2000 cups/h |
Filling range | can be customized | |
Filling accuracy | <±1.5% | |
Vessel | cup, tray, bottle, box, can, container, tube, bucket, pot, etc. | |
Voltage | 3N 380V/ single phase 220V, 50/60Hz(Can be customized) | |
Air consumption | 1 Kw | 1.5 Kw |
Power | 0.6 m3 /min | 0.8 m3/min |
Dimension | 1000mm*1000mm*1650mm | 1100mm*1100mm*1650mm |
Weight | 250Kg | 400Kg |
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
After-sale service:
1. Instruction for Installation and Debugging
Before delivery, we takes responsible for debugging of machine, in order to make sure the provided machine could be safely and smoothly put into operation.
We also take responsibility to have debugging overseas, and Client abroad please sends invitation forward of time to engineer, provides the engineer with round-trip tickets, accommodation, vehicle and $100 per day salary.
2. User Training
Before delivery, we will take responsibility to indoctrinate technical training to the users so that they could understand the machine features and could operate the machine by themselves.
3. Warranty Period
The warranty period for machine is one year with a life long maintenance. If the user requires special quality guarantee, other stipulated warranty period may be made after mutual agreement.Mechanical models are standard, make special design according to customer requirements.
