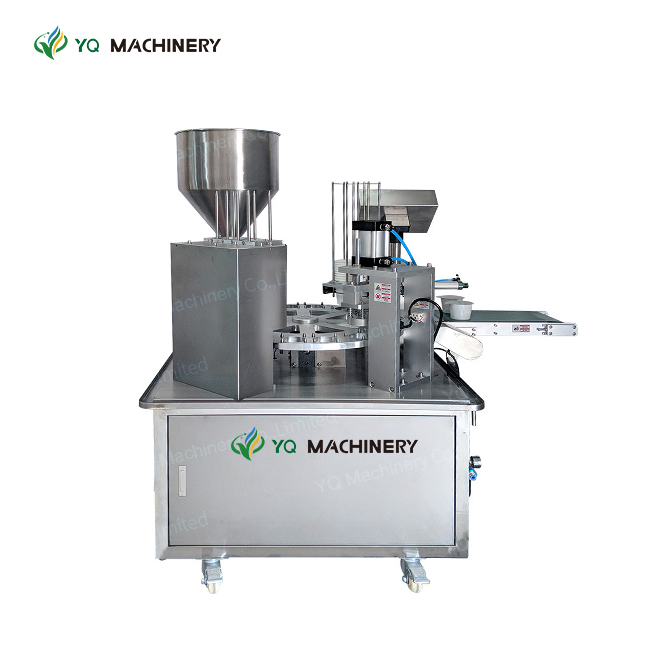

Introduction :
1. Frame part: Welded with high-quality carbon steel, can also be made of stainless steel, covered with stainless steel, and equipped with solid bolts in contact with the ground.
2. Transmission system: motor, reducer, cam divider, template, transmission chain, etc.
3. Cup feeding system: It consists of rack, slide rail, cup storage bin, cup push cylinder, etc. By PLC control system

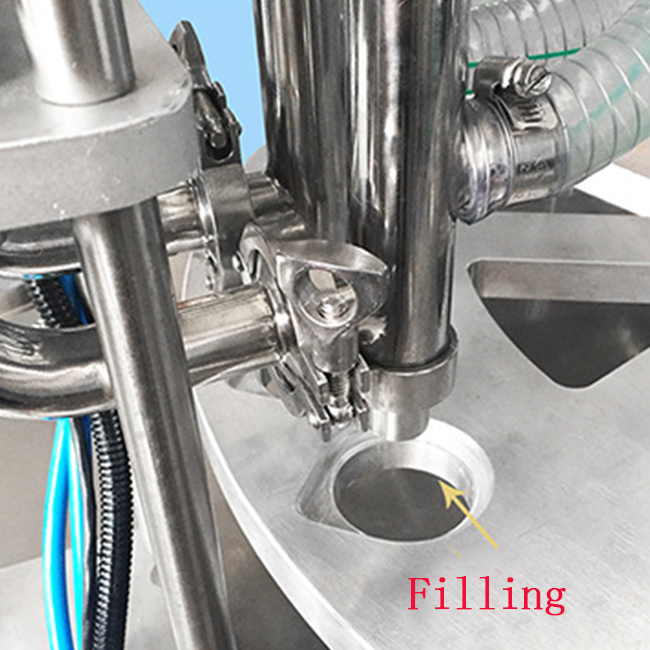

4. Filling system: The cylinder is made of stainless steel 304. The cylinder stroke works with piston-type quantitative filling, non-contact filling. The filling volume can be freely adjusted and the accuracy is high.
5, film calibration system: photoelectric eye tracking automatically corrects the film pattern and cup mouth alignment.
6. Cap feeding system: cap can be feed automatically

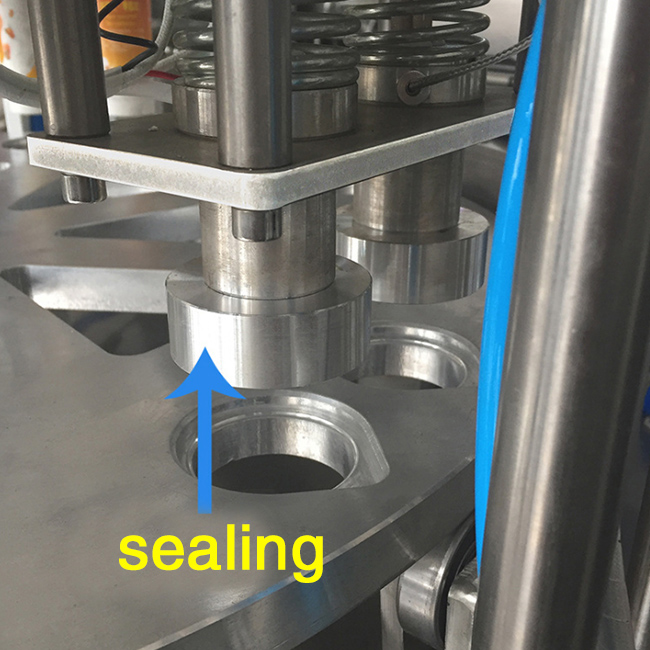

7. Sealing system: It adopts constant temperature (intelligent temperature control) hot pressing once sealing, and the sealing head is a combination of copper and aluminum, which is easy to replace. Sealing pressure is adjustable.
Advantage:
•This machine is suitable for filling and sealing of various plastic cups, such as pure water cups, yogurt cup, juice cups and so on.
•The whole machine is fully automatic operation, which can automatically complete the processes of cup falling, filling, unwinding film, pattern correction, sealing, trimming and other processes.
•The overall frame of the machine is outsourced with 304 stainless steel rust. It is equipped with well-known pneumatic components (Airtac or SMC) and electrical components (Schneider, Omron, Chint, etc.), with simple structure and convenient operation.
Technical parameter
Model | YQF-1 | YQF-2 |
Packaging Speed | 1000-1500 pieces/h | 2000pieces/h |
Filling Content | 0-250ml(adjustable) | 0-250ml(adjustable) |
Voltage | 3-phase 4-line socket(380V50HZcustomized) | 3-phase 4-line socket(380V50HZcustomized) |
Electric Motor Power | 1.1KW | 1.5KW |
Heat Up Power | 0.8KW | 1.6 KW |
Size(L*W*H) | 1100*1100*1600 | 1300*1200*1600 |
Weight | About 500kg | About 600kg |
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by misoperation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
