YQRF-100
Introduction:

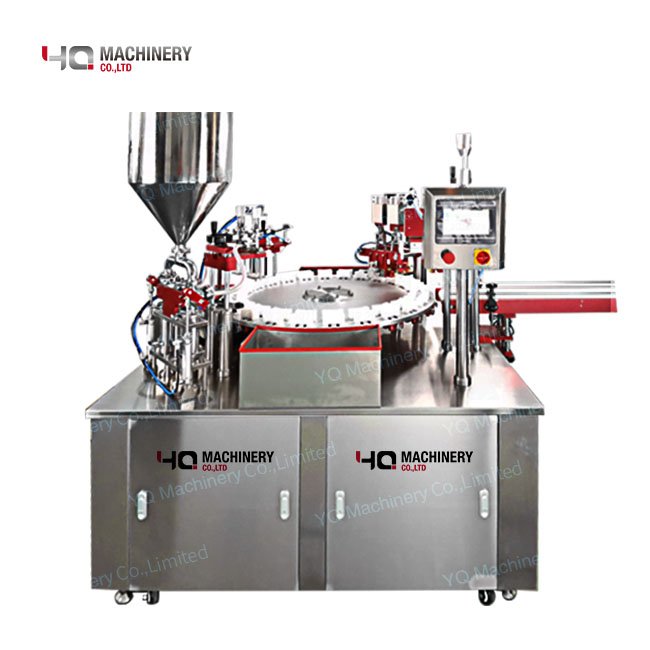

Rotary monoblock filling machines are designed to simplify your bottling line by combining the bottle filler, tip/plug placer, and capper into a single space-saving machine. This rotary filler is great for products in the pharmaceutical, food, cosmetic, or chemical industries. This filling equipment is specifically constructed to the individual product specifications, space constraints, and production environment to maximize product output. It is an easy to use system with a simple and intuitive touch screen display. As for filling,it can be chose according o your product fetrures. The place and press assembly can accurately feed, place, and press nearly any size tip/ plug before the capping process. The designed capping unit can accommodate for different caps of a variety of materials, diameters, and heights. Sorting options include a centrifugal bowl or a vibratory system for caps.
Advantage:
A monoblock filler is that the space required for the packaging equipment is reduced from that of traditional inline systems. Long and complex conveyor systems for transferring bottles or containers are replaced by the single starwheel.
The cost of a single monoblock system can save money when compared to purchasing all the individual machines required to do the same on an inline system, depending on what packaging components are included on the monoblock filler.
The monoblock filling system lies in the ability of the packager to choose the specific packaging functions that are needed.
Technical Parameters
Model | YQRC-100 |
Power | 220V / 50Hz (can be customized) |
Power | 2.0 kw |
Filling range | 10-100ml (can be customized) |
Filling volume error | ≤ ± 1% |
Production capacity | 20-40 bottles / minute |
Dimension | 2300 * 1200 * 1800mm |
Machine net weight | 600 kg |
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by misoperation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
