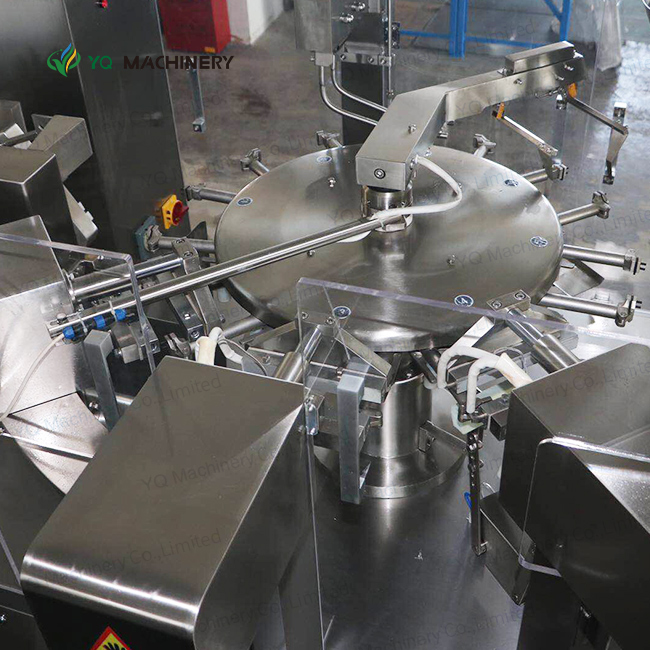

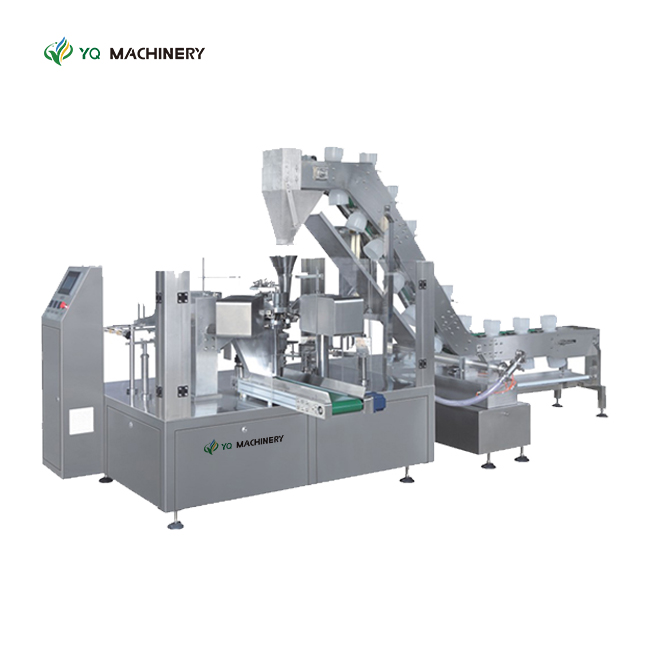

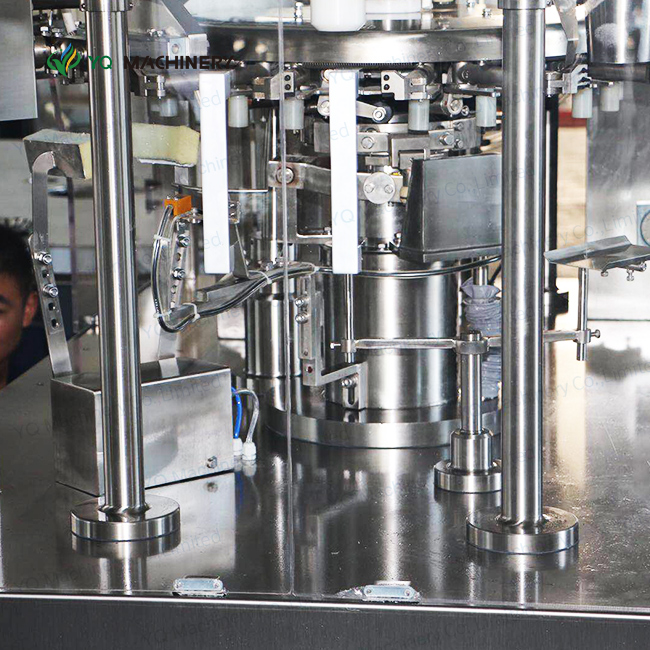

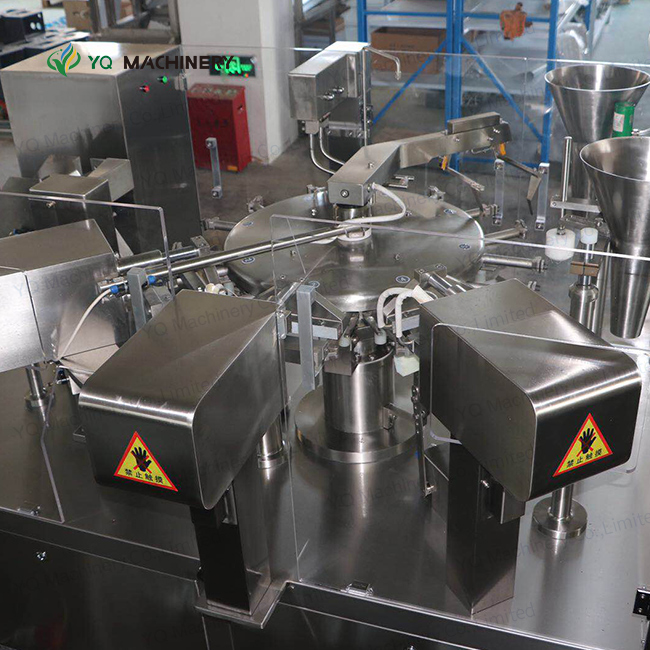

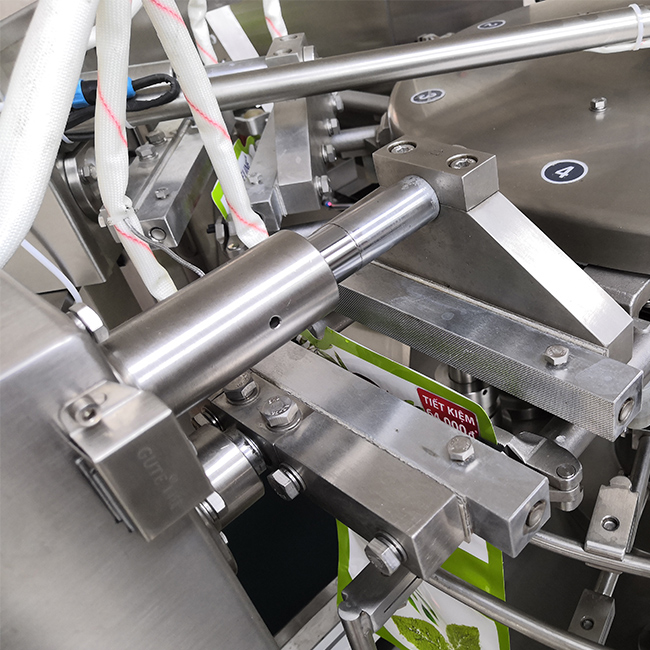

Deatails of rotary pouch packaging machine:
Specification:
1.For preformed pouch packing
2.For packing Flat,Stand-up,Zipper and Slider-zipper bag,side pouch
3.Rotary packing
Main Features:
1. Wide range of pouches: All kinds of pre-made pouches such as flat and stand-up pouches (with/without zip).
2. Easy to operate: PLC and color panel, fault indication on the panel.
3. Easy to adjust: Only about 10 minutes to change different pouches.
4. Frequency control: Speed can be adjusted by frequency conversion within the range.
5. Water proof design: The machine surface can be washed down, so easy cleaning and longer useful life.
6. No pouch/incorrect pouch opening-no fill-no seal, machine alarm.
7. Machine alarm and stop when the inadequate air pressure.
8. Safety guards with safety-switches, machine alarm and stop when the safety guards are opened.
9. Hygienic construction, the product contact parts are adopted sus304 stainless steel.
10. Imported engineering plastic bearings, no need to oil, no contamination.
11. Oil-free vacuum pump, avoid the pollution of the production environmental.
Working Cycle:

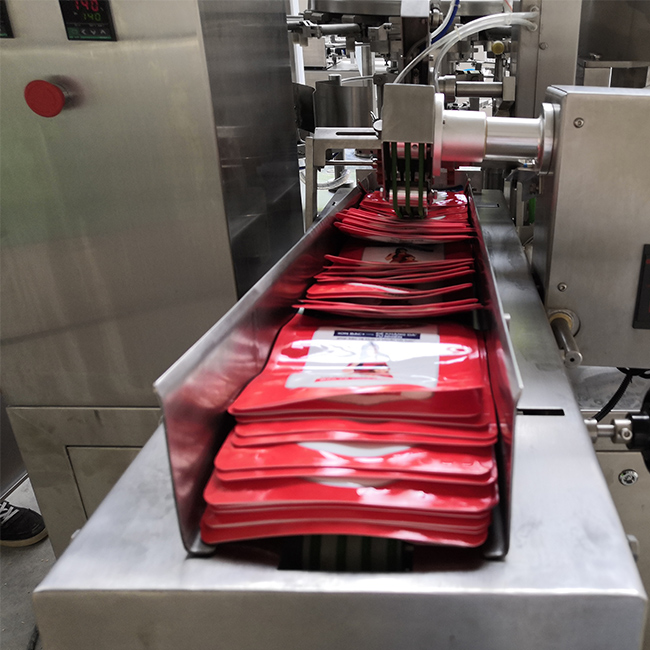

1. Feeding Bag
2. Coding Date

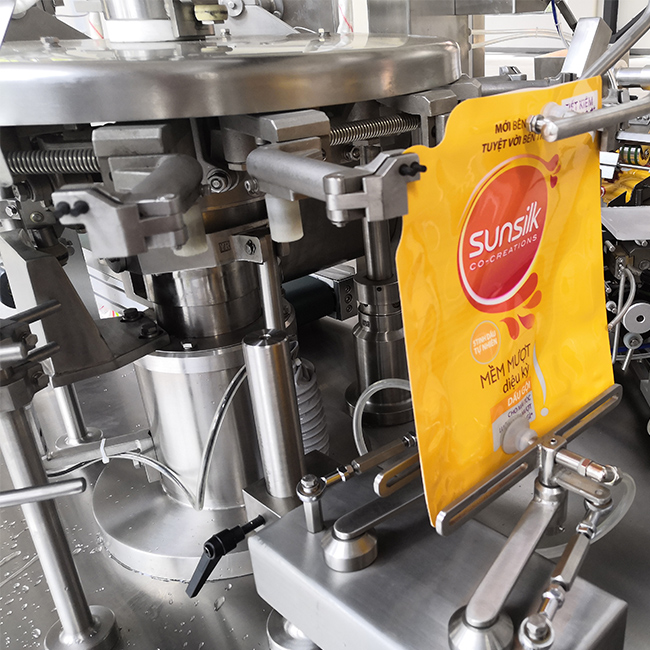

3. Open Zipper
4. Open Bag (Open bag bottom)
5. Filling

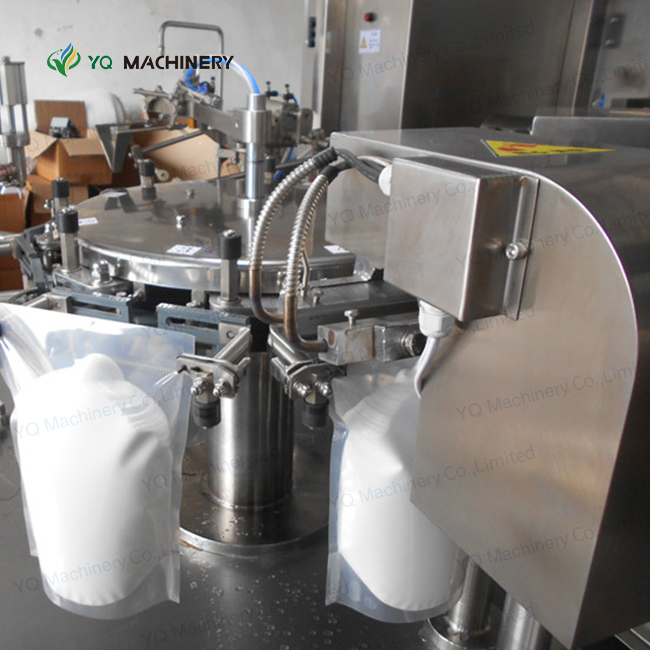

6. Liquid filling
7. First Sealing (With close zipper device, if no need close zipper, only need loosen the screw of close zipper device.)
8. Second Sealing
Main technical parameters:

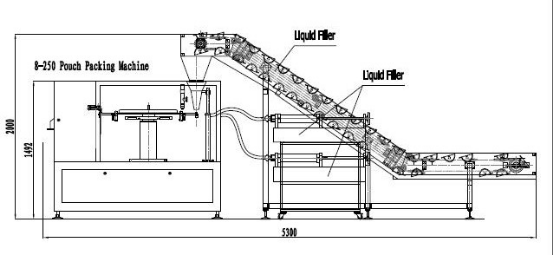

Packing Speed | 10-30bags/min (Depended on the product and filling weight) |
Bag Size | W: 140-250mm L: 150-400mm |
Filling Range | 5-2000g |
Total Power | 3.85kw |
Bag Types | All kinds of compound bags, such as flat bag, 3-side sealing bag, 4-side sealing bag, zipper bag, stand up bag etc… |
Overall Dimensions | 5300*1800*2000mm |
Configuration:
No | Parts Name | Model | Quantity | Manufacturer |
1 | PLC | CP1L-M40DT-D | 1 | OMRON(Japan) |
2 | Panel | MT6070IH | 1 | Weinview(Taiwan) |
3 | Transducer | ATV312HV075N4 | 1 | SCHNEIDER(France) |
4 | Vacuum Pump | KRX5-P-V-03 | 1 | ORION(Japan) |
5 | Ribbon Coder | HP-501 | 1 | TANE(China) |
6 | Main Motor | CH32-750-30S | 1 | GPG(China) |
7 | Stainless Steel Heater | 2 | China | |
8 | Proximity Switch | 2 | OMRON(Japan) | |
9 | Solenoid Valve | GP46-0-01L5 | 1 | SMC(Japan) |
SY5120-5DD-01 | 8 | |||
VQ21A1-5G-C8-F | 2 | |||
VP342R-5G-02A | 2 | |||
10 | Cylinder | CJ2D16-25 | 2 | SMC(Japan) |
CG1BA20-20 | 1 | |||
CG1BA32-50 | 1 | |||
CG1BN32-40 | 1 | |||
CQ2A20-20DM | 1 | |||
12 | Bearing | Igus(Germany) |

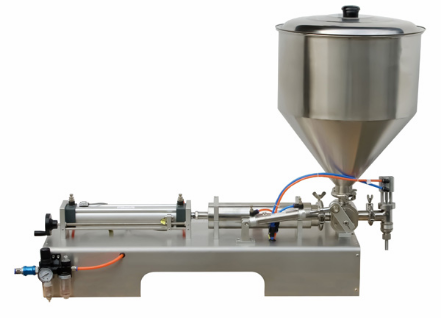

Liquid Filling Machine
1.This valve can be used for filling paste and fluid products.The design is easy clean, no blind corner.
2. With counting device, machine can count the filling times automatically;
3. Material contact parts is made of 316 stainless steel, in line with the requirements of GMP standard;
4. Filling head use anti-drop device, which keep each filling action clean, and the filling head place and height is adjustable
5. Filling speed is quick, it can reach 30-50 times filling action per minute, take 500ml water for instance, filling accuracy is ±1% .
Bowl Elevator
Overview:
Complete 304SUS building frame and bowl, driven by motor to feed the noodle dough from the scale to later equipment vertical form fill seal machine, bowl is easy installation and dismantle for clean purpose, controlled by signal from the weight filler, bowl position is under the weigh hopper, special design project for dough weighing and packaging.
Features and Advantages:
- Customized bowl elevator Design & Build.
- SUS304 material
- Easy Bowl Installation & Clean
- Integrate with various packing line
- ODM design
Specifications:
Capacity of Transportation: 5-8 bowls per min
Frame Material: 304SUS
Bowl Volume: 30L
Dump Heigth: 2100mm (Customized)
Power Supply: 1.8KW, 380V/220V, 50HZ or 60HZ, 1Phase or 3Phase
Conveying Speed is adjustable as option
Driven by motor
Gross Weight: 250kg
Packing size: 1800*950*1200mm
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
