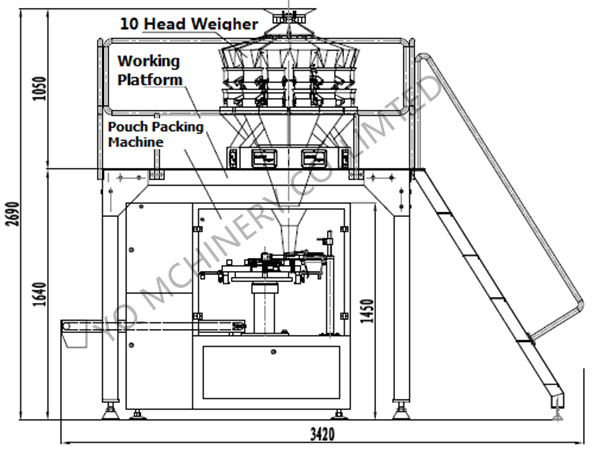

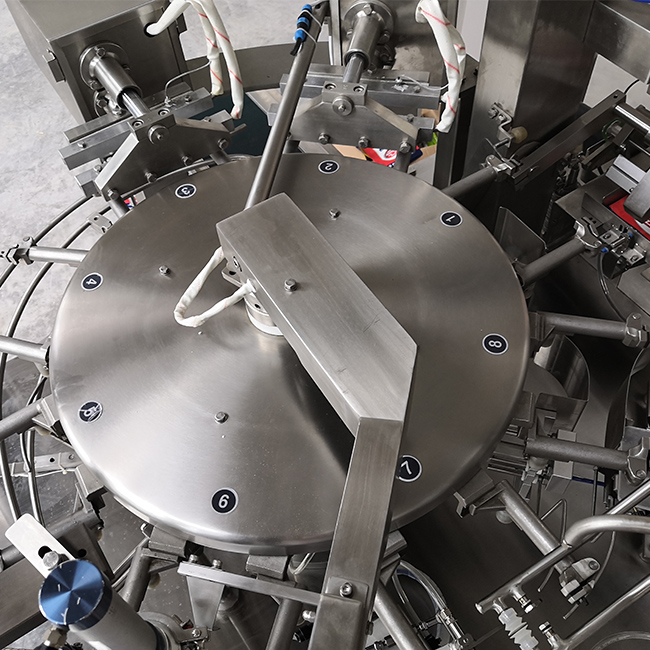

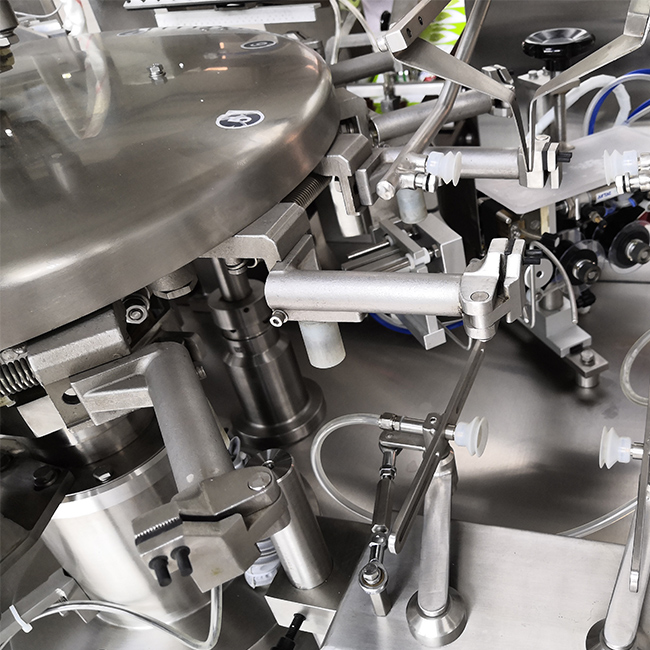

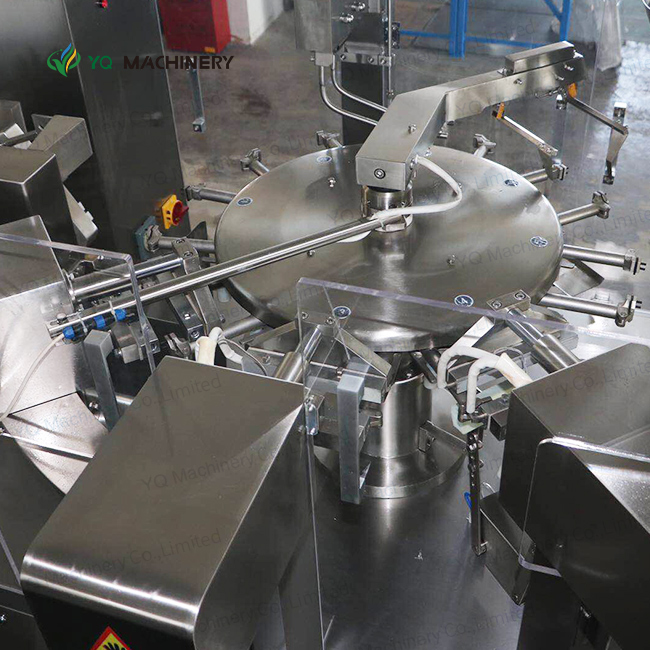

Details of rotary grain premade pouch packaging machine:
Main Features:
1. Wide range of pouches: All kinds of pre-made pouches such as flat and stand-up pouches (with/without zip).
2. Easy to operate: PLC and color panel, fault indication on the panel.
3. Easy to adjust: Only about 10 minutes to change different pouches.
4. Frequency control: Speed can be adjusted by frequency conversion within the range.
5. Water proof design: The machine surface can be washed down, so easy cleaning and longer useful life.
6. No pouch/incorrect pouch opening-no fill-no seal, machine alarm.
7. Machine alarm and stop when the inadequate air pressure.
8. Safety guards with safety-switches, machine alarm and stop when the safety guards are opened.
9. Hygienic construction, the product contact parts are adopted sus304 stainless steel.
10. Imported engineering plastic bearings, no need to oil, no contamination.
11. Oil-free vacuum pump, avoid the pollution of the production environmental.
Main technical parameters:
Packing Speed | 20-60bags/min (Depended on the product and filling weight) |
Bag Size | W:100-210mm L:150-300mm |
Filling Range | 5-1500g |
Total Power | 3.85kw |
Bag Types | All kinds of compound bags, such as flat bag, 3-side sealing bag, 4-side sealing bag, zipper bag, stand up bag etc… |
Overall Dimensions | 4200*1800*2400mm |
Configuration:
No | Parts Name | Model | Quantity | Manufacturer |
1 | PLC | CP1L-M40DT-D | 1 | OMRON(Japan) |
2 | Panel | MT6070IH | 1 | Weinview(Taiwan) |
3 | Transducer | ATV312HV075N4 | 1 | SCHNEIDER(France) |
4 | Vacuum Pump | KRX5-P-V-03 | 1 | ORION(Japan) |
5 | Ribbon Coder | HP-501 | 1 | TANE(China) |
6 | Main Motor | CH32-750-30S | 1 | GPG(China) |
7 | Stainless Steel Heater | 2 | China | |
8 | Proximity Switch | 2 | OMRON(Japan) | |
9 | Solenoid Valve | GP46-0-01L5 | 1 | SMC(Japan) |
SY5120-5DD-01 | 8 | |||
VQ21A1-5G-C8-F | 2 | |||
VP342R-5G-02A | 2 | |||
10 | Cylinder | CJ2D16-25 | 2 | SMC(Japan) |
CG1BA20-20 | 1 | |||
CG1BA32-50 | 1 | |||
CG1BN32-40 | 1 | |||
CQ2A20-20DM | 1 | |||
12 | Bearing | Igus(Germany) |

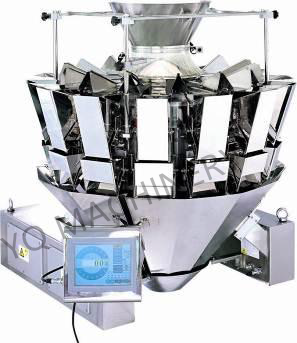

2.10 Heads Computer Combination Weigher
Main performance and structural features:
1) Select the best combination immediately from diversified weight combinations through Computer with perfect combination of high precision and high speed.
2) High precision data-type weighing sensor realizes precise weighing.
3) Liquid crystal screen operating system in multiple languages such as Chinese and English, etc.
4) IP65 grade water-proof and dust-proof design. It’s clean and sanitary with all stainless steel parts.
5) Strong compatibility and more compact structure with it directly installed on the upper part of packing machine.
Main Technical Parameters:
Model | YQ-A10 | |
Weighing Range | 10-1000g | |
Weighing Accuracy | 0.1-2g | |
Weighing Speed | 60Bags/min | |
Hopper capacity | 1300ml | |
Driving Mode | Stepper Motor | |
Panel | Touch Panel | |
Types of Weight Setting | 99 | |
Voltage | 1 Phase 220V 50/60HZ | |
Power | 1KW | |
Packing Size | 1150(L)X950(W)X1129(H) | |
Weight | 250KG |

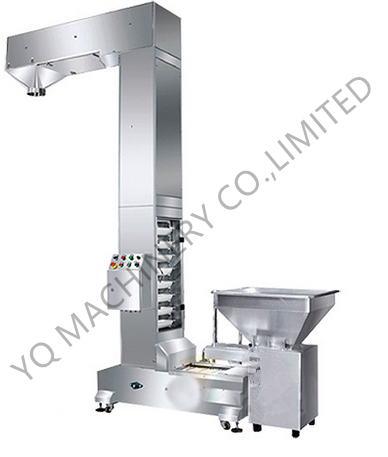

3.Z Type Material Conveyor With Feeder
Application Area:
The elevator is suitable for elevating solid, such as grain, food, feed and chemical etc…
Main Features:
1. It is automatic quantitative packing system when Z-Conveyor connects with computer weigher and packing machine, great load capacity and height.
2. The Z-Conveyor is made of 304 stainless steel and plastic (PP) which is safe and hygienic.
3. Automatic start/stop feeding product through control circuit and product position.
4. Vibrating motor as vibration source, the feeder working is low noisy, high speed, great feeding capacity and almost no noise.

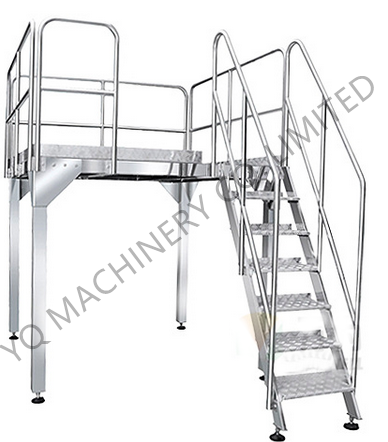

4.Working platform
Main Features:
1. Install guardrail on ladder and four sides of platform surface to insure safe.
2. Platform surface with diamond plate.
3. Working platform material: Stainless steel.
4. Support the weigher, it is the general auxiliary equipment in packaging system.
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
After-sale service:
1. Instruction for Installation and Debugging
Before delivery, we takes responsible for debugging of machine, in order to make sure the provided machine could be safely and smoothly put into operation.
We also take responsibility to have debugging overseas, and Client abroad please sends invitation forward of time to engineer, provides the engineer with round-trip tickets, accommodation, vehicle and $80 per day salary.
2. User Training
Before delivery, we will take responsibility to indoctrinate technical training to the users so that they could understand the machine features and could operate the machine by themselves.
3. Warranty Period
The warranty period for machine is one year with a life long maintenance. If the user requires special quality guarantee, other stipulated warranty period may be made after mutual agreement.Mechanical models are standard, make special design according to customer requirements.
