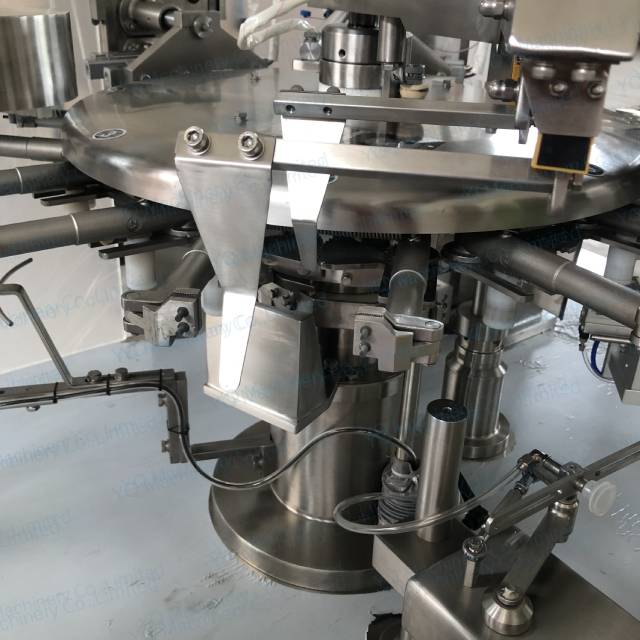

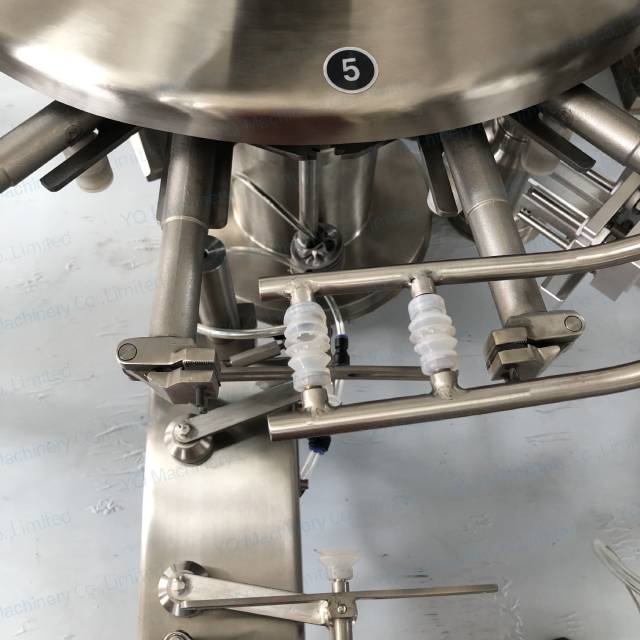

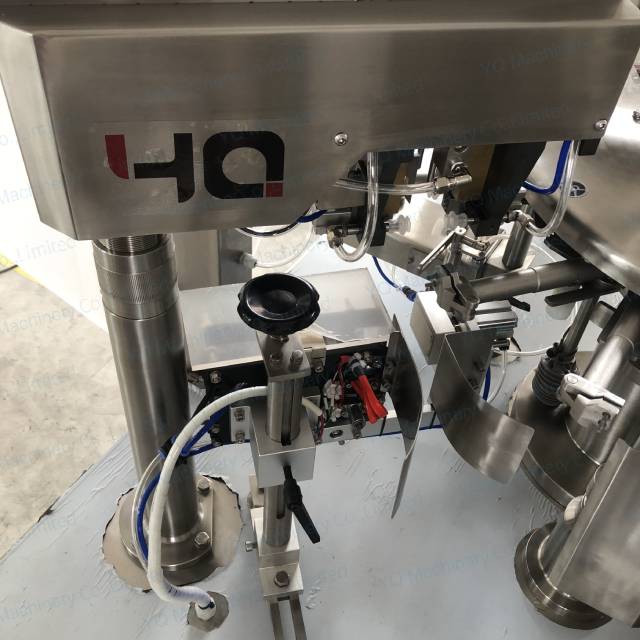

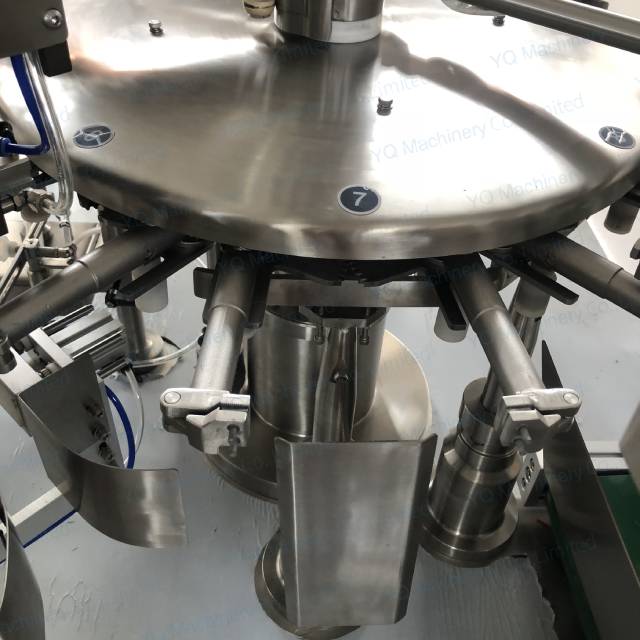

Details of rotary premade pouch packaging machine:
Application Area:

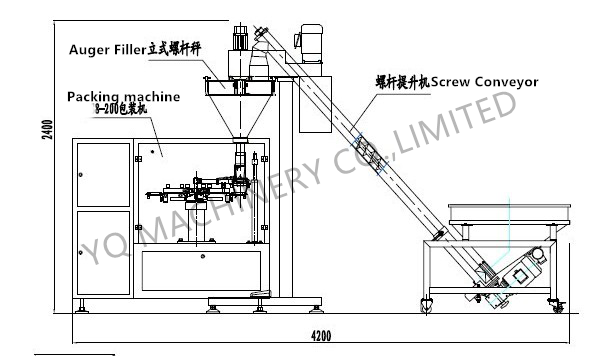

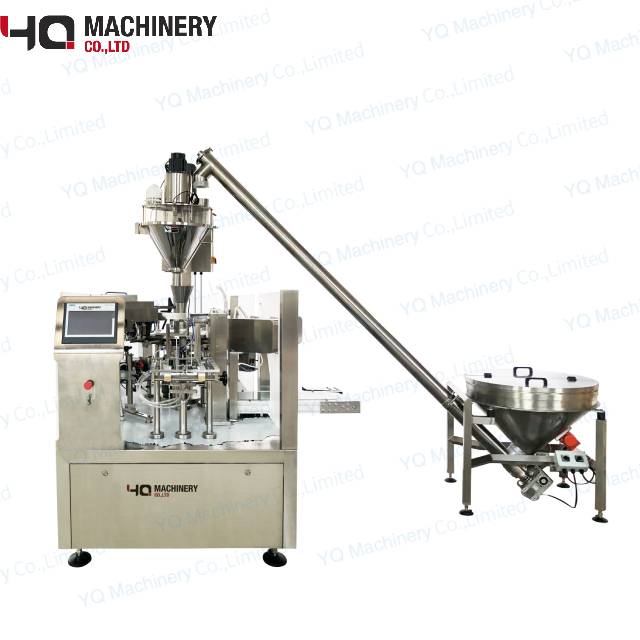

Rotary packing line mainly installs rotary packing machine, auger filler and screw elevator, suitable for packing solid, liquid, thick liquid ,powder and so on.
Main Features:
1. Wide range of pouches: All kinds of pre-made pouches such as flat and stand-up pouches (with/without zip).

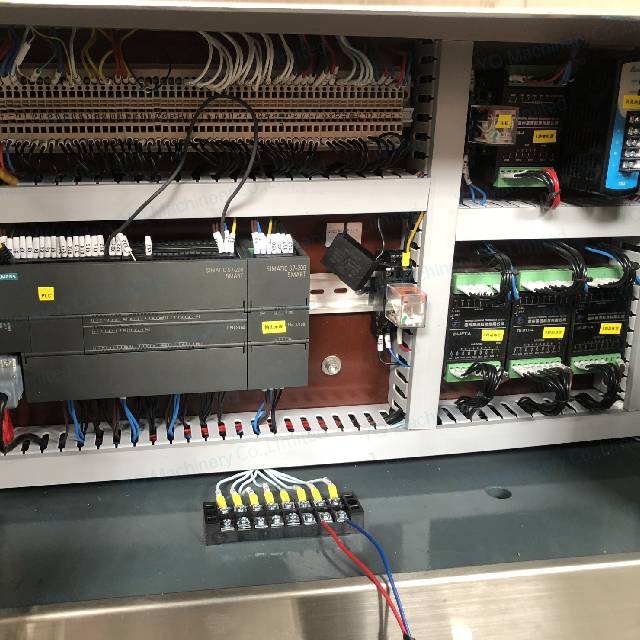

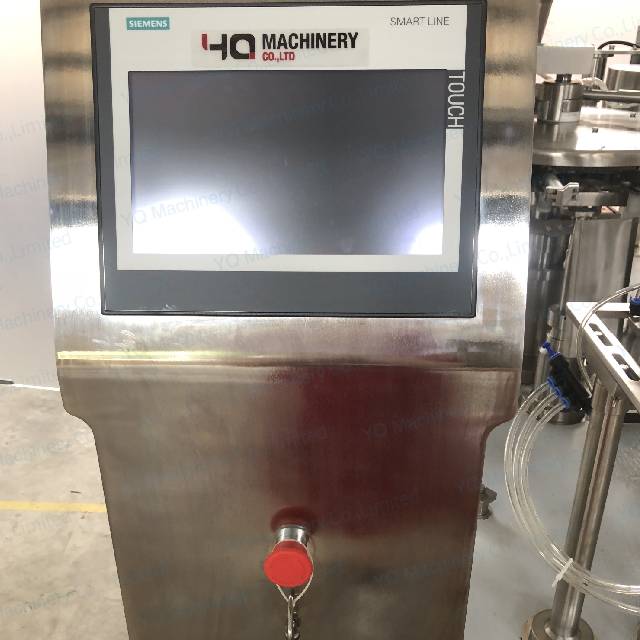

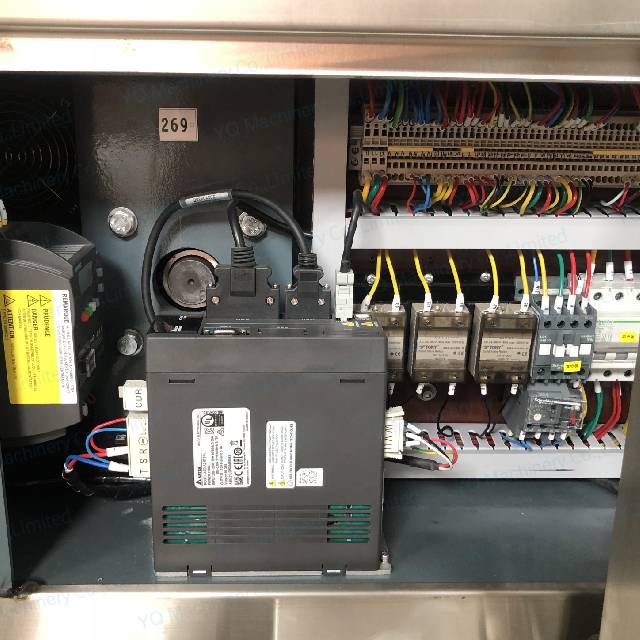

2. Easy to operate: PLC and color panel, fault indication on the panel.
3. Easy to adjust: Only about 10 minutes to change different pouches.
4. Frequency control: Speed can be adjusted by frequency conversion within the range.
5. Water proof design: The machine surface can be washed down, so easy cleaning and longer useful life.
6. No pouch/incorrect pouch opening-no fill-no seal, machine alarm.
7. Machine alarm and stop when the inadequate air pressure.
8. Safety guards with safety-switches, machine alarm and stop when the safety guards are opened.
9. Hygienic construction, the product contact parts are adopted sus304 stainless steel.
10. Imported engineering plastic bearings, no need to oil, no contamination.
11. Oil-free vacuum pump, avoid the pollution of the production environmental.
Main technical parameters:
Packing Speed | 20-40bags/min (Depended on the product and filling weight) |
Bag Size | Model:210 W:100-210mm L:150-300mm Model 260 W:100-260MM L:150-300mm |
Filling Range | 5-1500g |
Total Power | 3.85kw |
Bag Types | All kinds of compound bags, such as flat bag, 3-side sealing bag, 4-side sealing bag, zipper bag, stand up bag etc… |

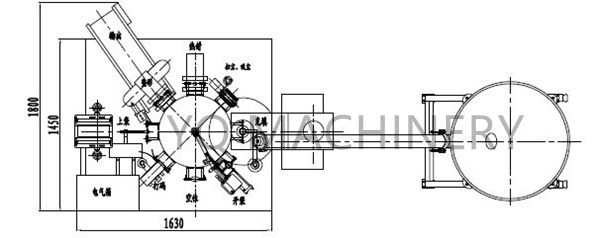

Overall Dimensions | 4200*1800*2400mm |

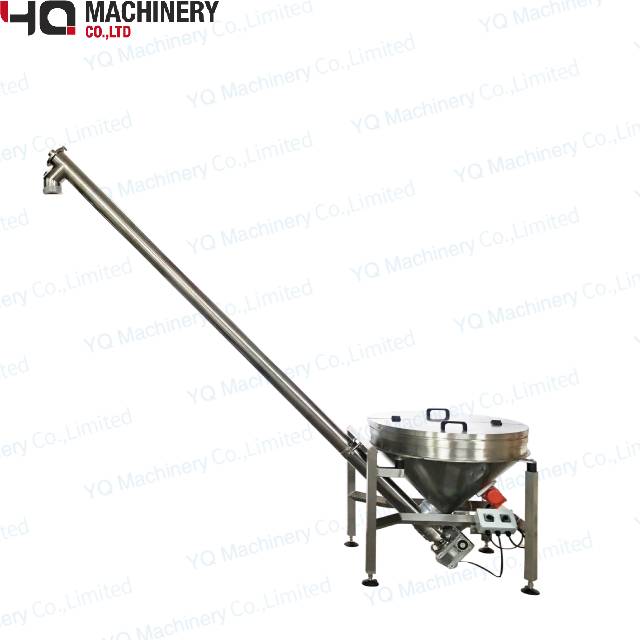

2. Screw Conveyor
Application Area:
Screw conveyor is suitable for feeding powder and granule, working together with auger filling machine.
Main Features:
1. Simplicity of operation is the key element in screw conveyor .the only moving part is the motor driven spiral which rotates with a sealed tube to move the materials along with it. There is no bearing components in pipeline, no matter how long the transportation is, the machine requires little maintenance, the conveyor is reliable, it will not occurs that some problems like bearing grease pollution during materials transportation.
2. Hopper is separate from twisting shaft. Structure is reasonable and easily loading and unloading.
3. In order to convenience machine cleaning, following functions are added in: auger can reverse for emptying the tube, product discharge gate is mounted in the bottom of the funnel, auger can be disassembled for washing.
Main Technical Parameters:
Charging Capacity | 3cbm/hour (Can be customized) |
Hopper Volume | 200L (Can be customized) |
Power | 3 Phases 380V/220V 50/60HZ |
Total Power | 810W |
Weight | 130kg |

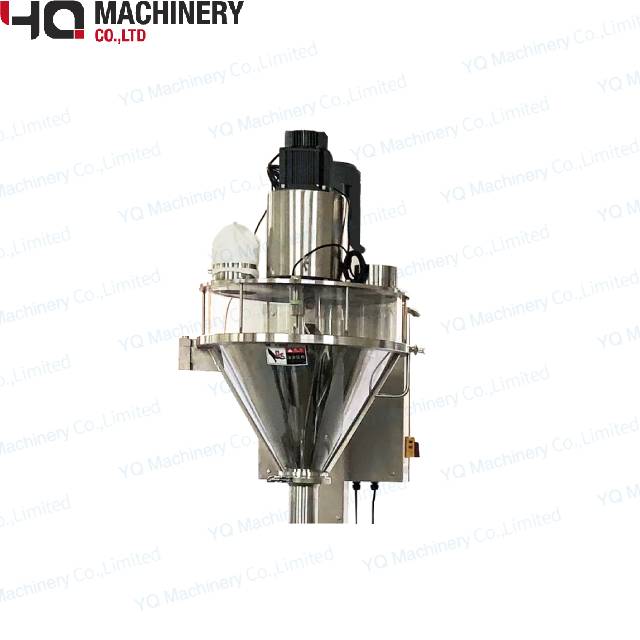

3.Auger Filler
Application Area:
Auger filler is suitable for filling various powders with easy flow or poor mobility as well as granular products, such as milk powder, rice flour, protein powder, granular medicines, granular additive, glucose, spices, dyestuff etc…
Main Features:
1. Drove by servo motor, controlled by PLC and touch panel, easy operation and stable. Touch panel shows working status, operation sign, error alarm and production when auger filler working. Modules can save 7 different working datas.
2. Suitable for filling varies micro-powders and granules through add screw length or change screw accessories.
3. Easy flow products: Installs centrifugal device on filling inlet to ensure filling accuracy.
Powder: Installs dust-collector on filling inlet.
4. Machine surface is made by stainless steel. Hopper can be open and close, easy clean no need disassemble.
5. Installs hand wheel to adjustable machine height.
Main Technical Parameters:
Filling Weight | 10-5000g(needs change screw accessories) |
Filling Accuracy | 100g≤2% 500g,≤1% |
Filling Speed | 10-50 bags/min |
Power | 3Phases 380V 50/60HZ |
Total Power | 1.4KW |
Overall Dimensions | 1140*970*2030mm |
Weight | 260kg |
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
After-sale service:
1. Instruction for Installation and Debugging
Before delivery, we takes responsible for debugging of machine, in order to make sure the provided machine could be safely and smoothly put into operation.
We also take responsibility to have debugging overseas, and Client abroad please sends invitation forward of time to engineer, provides the engineer with round-trip tickets, accommodation, vehicle and $80 per day salary.
2. User Training
Before delivery, we will take responsibility to indoctrinate technical training to the users so that they could understand the machine features and could operate the machine by themselves.
3. Warranty Period
The warranty period for machine is one year with a life long maintenance. If the user requires special quality guarantee, other stipulated warranty period may be made after mutual agreement.Mechanical models are standard, make special design according to customer requirements.
