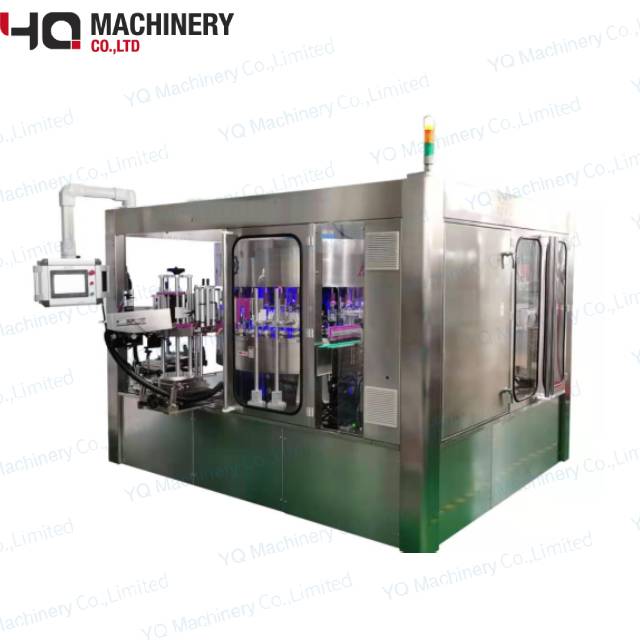

YQHL-250
YQ

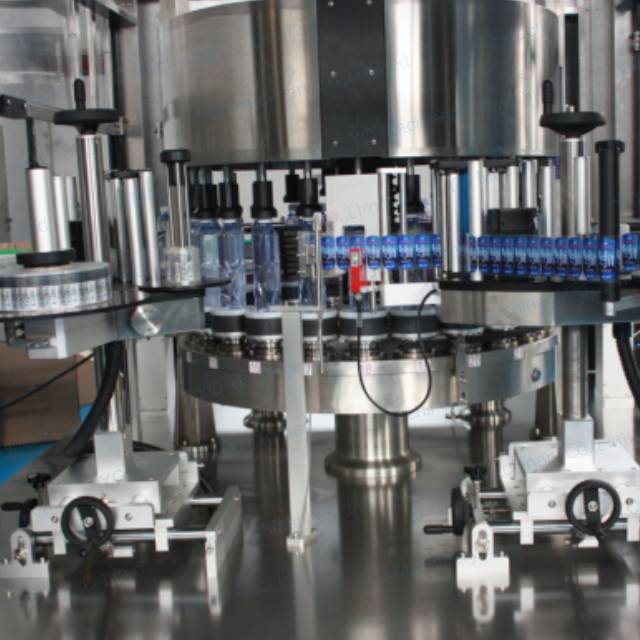

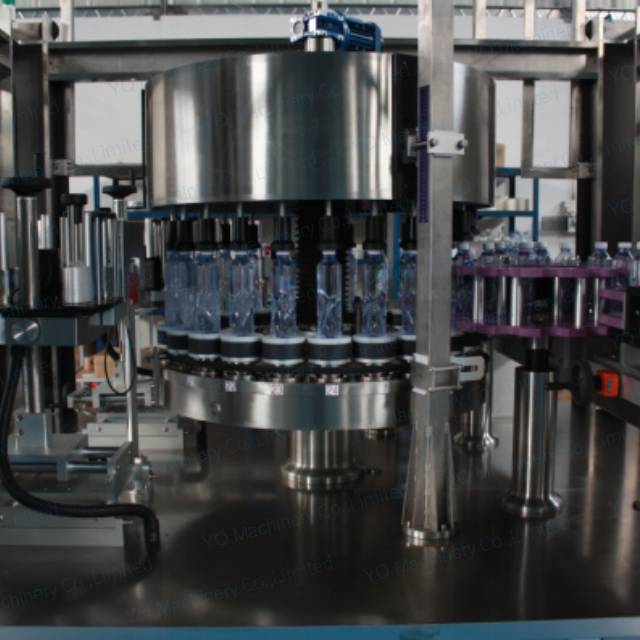

High speed labeling equipment composition:
1. Servo motor: Swiss ABB servo motor system.
2. Servo drive: Swiss ABB servo drive.
3. Main motor: German Siemens main motor
4. Programmable controller: German Beckhoff (better than Siemens)
5. Man-machine interface: Schneider, France.
6. Label sensor: German SICK label sensor, compatible with transparent labels and non-transparent labels.
7. Product sensor: German SICK high-precision product detection photoelectric switch.
8. Cylinder, solenoid valve: Festo, Germany
Performance characteristics:
1. Large-range two-way adjustment and six-dimensional space direction adjustment mechanism
2. Can automatically identify the length of the product, double photoelectric switch detection
3. Double pressing rollers automatically send labels, and labels are automatically tensioned, which is convenient for installing barcode detection devices
4. Labeling rollers or labeling brushes can be installed as needed to reduce vulnerable parts
5. The equipment is fully automatic operation, no special person is required to supervise. The labeling machine is equipped with three-color warning lights (run, stop, warning lights), which display differently in different situations;
6. The protective door of the labeling machine is connected with the host system, and has the function of alarm and shutdown when the door is opened to avoid safety accidents;
7. The bottom paper recycling roller adopts a quick-change type, and the waste paper can be taken out by gently pulling up the knob
8. The main engine adopts ABB750W high-power servo motor, cooperates with ABB servo driver,
Close-loop control of the label feed can control the stop accuracy of the label within 0.3 mm
9. The product detection sensor adopts SICK PZ-G62P with a detection speed of 50KHz, which can be compatible with transparent label labeling to ensure high labeling accuracy.
10. Set up a special product detection switch adjustment bracket to realize rapid adjustment of detection points
11. This machine adopts pressure-sensitive labeling. The label is in line contact with the object under the action of the sponge roller to ensure that the labeling is flat and without bubbles.
12. The system is equipped with various operation and I/O status monitoring diagrams. If any failure occurs, the failure can be found from the man-machine and eliminated in time, reducing maintenance time and bringing great convenience to maintenance..
13. The operation interface requires a Chinese interface, and the system has a fault alarm and shutdown, alarm information display, production counter, troubleshooting methods, etc.
14. The inside of the labeling machine has the functions of removing static electricity and dust from the bottle body and the equipment space to avoid bubbles and wrinkles after labeling caused by foreign matter in the bottle body.
15. All 304 stainless steel frame, neat and generous appearance, durable.
Technical Parameters:
Model | YQHL-250 |
Labeling Speed(pcs/min) | 200-250 bottles/min (relate to material and label size) |
Labeling Accuracy(mm) | ±1.0mm |
Lable Size(mm) | Max Height 205mm;Min height 15mm |
Label Capacity | 60m/min |
Roll Inside Diameter(mm) | Φ76.2mm |
Roll Outside Diameter(mm) | (Max) Φ400mm |
Working surface height | 1100mm (can be made according to customer requirements) |
Labeling accuracy | ±1 mm (related to the shape of the object to be affixed and the accuracy of the label) |
Marking accuracy | ±0.3 mm |
Use air pressure | 3-5KG |
Machine Size(mm) | (L)3100*(W)2000*(H)2100(mm) |
Power Supply | AC380V 50HZ 7KW |
Weight | 3000kg |
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by wrong operation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
