Introduction:

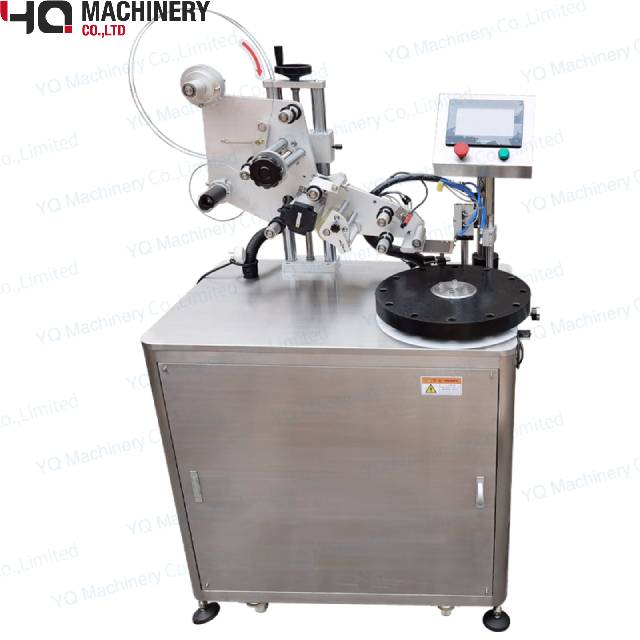

It is suitable for labeling various round container that cannot stand up. It can be equipped with, feeding and receiving structures according to customer needs.
Feature

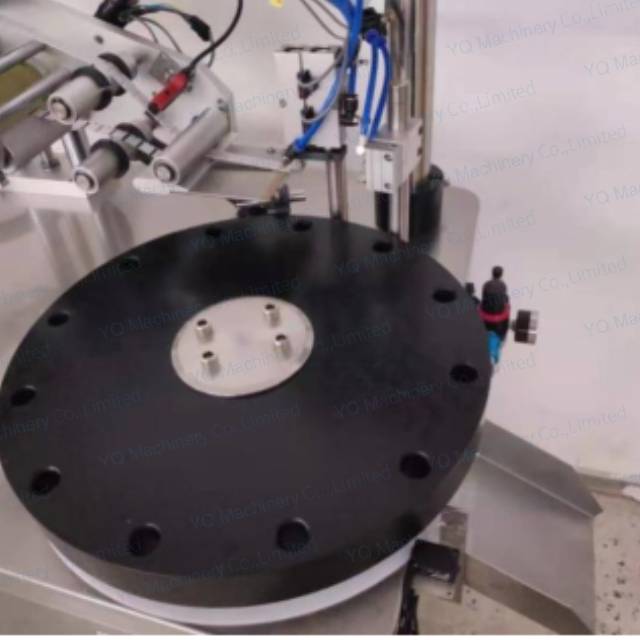

•Accurate labeling by locating the container precisely by star wheel
• Brand name PLC control system with touch screen
• Stainless steel frame
• Variable speed with servo motor
• Combined with other equipment such as bottle filling machine,cartooning machine etc.
Specification:
Model | YQRL-60 |
Working direction | Rotary type-Clockwise |
Bottle diameter | 10~100 mm |
Labeling Speed | 30-60 bottles/minute |
Power source & consumption | 1 KW, 220v, 1 Ph, 50-60HZ(Optional) |
Dimensions | 1000mm×1100mm×1260 mm ( L × W × H ) |
Weight | 250kg |
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by wrong operation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
