Availability: | |
---|---|
Quantity: | |
YQGZ-50
YQ
Description:

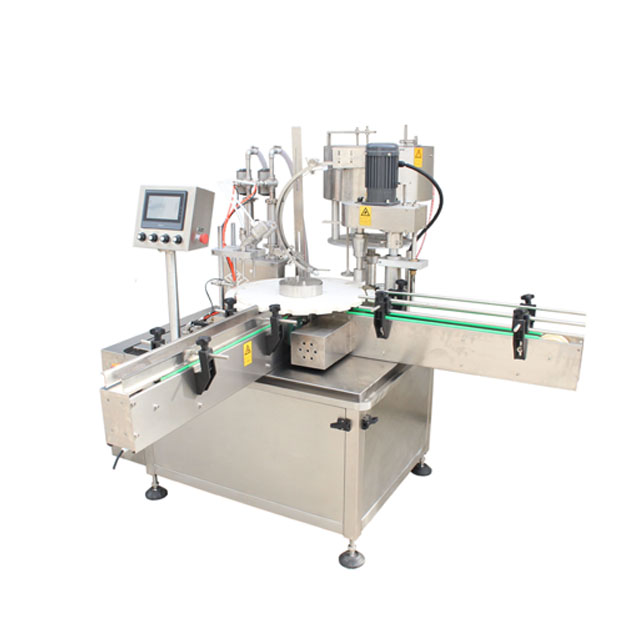

(1)The automatic essential oil filling capping machine is mainly designed for small bottles and suitable for filling liquid like essential oil, eye drops, electronic cigarette and so on.
(2)The automatic essential oil filling capping machine adopts the peristaltic pump metering, It can automatically unscrambling bottle, filling and pressing the inner plug, screwing capping , labeling.
(3)It is applicable to different kinds of bottles, including plastic bottles, glass bottles, tubular bottles and electronic cigarettes dropper bottle, suitable for liquid ,oil and various kinds of fluid filling with the range from 5ml-50ml.
(4)The automatic essential oil filling capping machine's part which touches the liquid medicine is made of 316L stainless material completely, meeting the requirement of GMP.
Feature:
1.Microcomputer setting, PLC control, touch screen operation, it is high automated, easy to operate with stable performance
2. High safety factor, the e-liquid filling machine can stop automatically if there is low pressure, no filling, no inner plug in any rail etc.it can work both alone an together with other machine
3. The part which touches the liquid medicine is made of 316 or 304 stainless material completely, meets GMP standard.
4.It can be customized, the product quantity can be controlled according to customer's requests, no matter 2/4 heads.
Production process:
When the bottles in an even row which sent by conveyor reach filling part, filling nozzles will go deep down to inside of bottle and begin to fill. The nozzle will go up slightly to bottleneck, then filling stops. The conveyor will convey bottles to equal-index plate. The plate makes bottles do intermittent motion in the function of cam indexer. Bottles arrive at plugging part, then go to capping part. When finish capping, bottles will be sent to the next process by conveyor.
Technical Parameters:
Applicable specifications | 5-50ml |
Filling head | two heads |
Production capacity | 30-50 bottles /min(two filler); 60-80bottles /min(4 filler) |
Filling accuracy | ±1% |
Capping rate | ≥99% |
Power supply | 220V / 50Hz;380V |
Power | 2kW |
Total dimension | 2500 * 1000 * 1500MM |
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by wrong operation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
