US Customer has purchased a flat labeling machine.The client sent his Kraft paper bag for us to test it after pouch labeling machine was finished. below is a video for you to check:

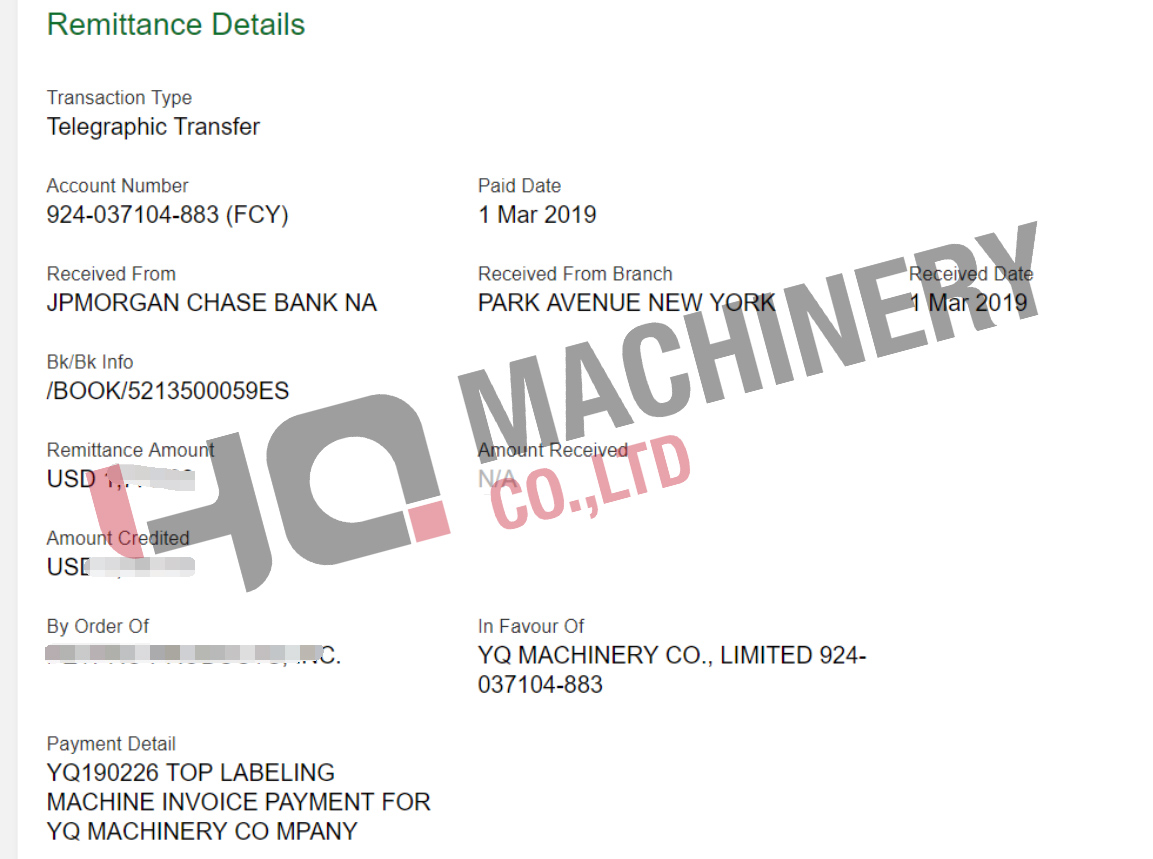

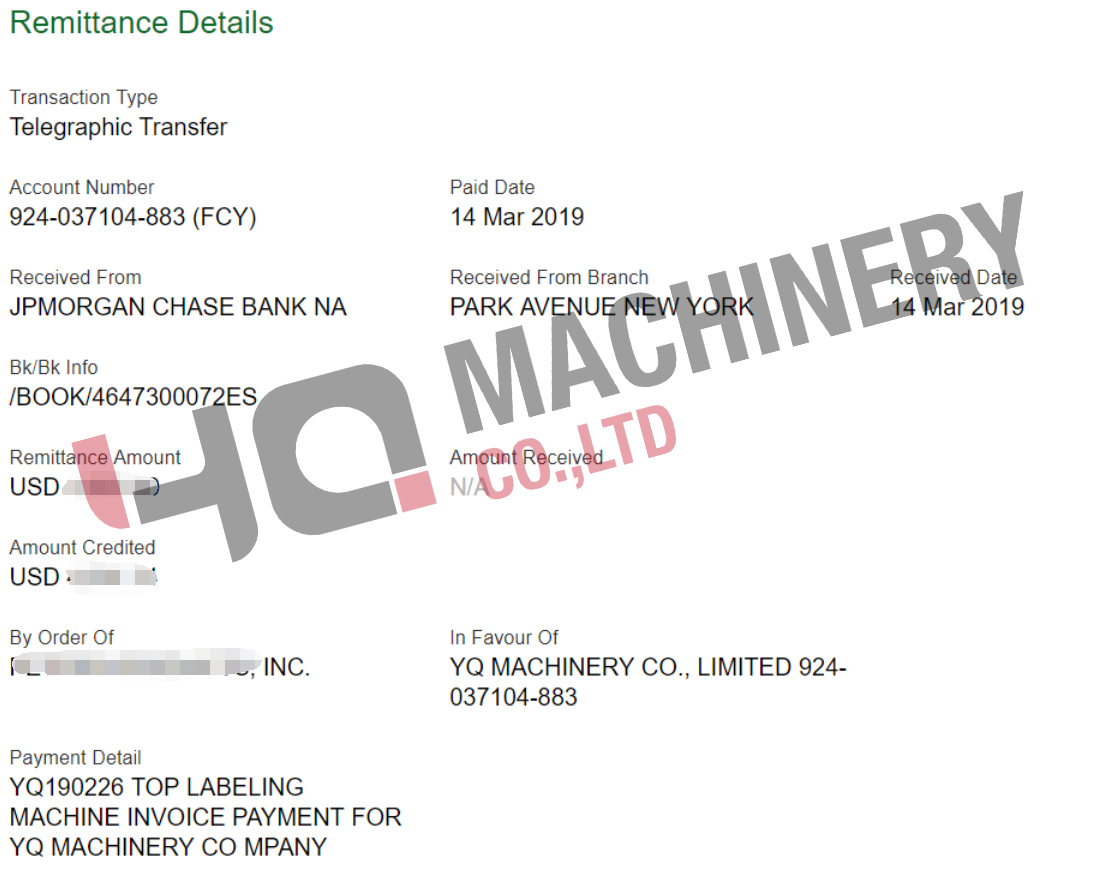

This top labeling machine include a main machinery and paging counting system.It can separate bags and count automatically.The labeling equipment only take around 10 days to finish.below is payment that our client made.
Basic use of automatic flat labeling machine
Specially used for labeling various kinds of cards. Sticking protective film on the surface of various plastic sheets with high accuracy and no bubbles in the film;
Scope of application for flat label applicator
Applicable labels: self-adhesive labels, self-adhesive films, electronic supervision codes, barcodes, etc.
Applicable products: Products that require labels or films on flat or large arc surfaces.
Application industry: widely used in electronics, hardware, plastic, chemical and other industries.
Application examples: cardboard labeling, acrylic film, large plastic film, ceramic film, etc.
Working process of plastic bag labeling machine
Core working principle: The sensor detects the passing of the product, and returns a signal to the labeling control system. The control system controls the motor to send the label at the appropriate position and attach it to the product to be labeled. The product flows through the labeling roller and the label is rolled , Attachment of a label is completed.
* Operation process: put products—> products are separated and transported (automatic equipment realization) —> labeling (automatic equipment realization) —> collect labeled products (automatic equipment realization) —> remove products.
Technical parameters: (The following are the technical parameters of standard models, other special requirements and functions, which can be customized).
Labeling accuracy: ± 1mm (excluding product and label errors);
Labeling speed: 60 ~ 120 pieces / minute (related to product size);
Applicable product size: length: 40mm ~ 400mm width: 40mm ~ 200mm height: 0.2mm ~ 150mm (can be customized according to samples)
Applicable label size: label length: 6mm ~ 150mm width (backing paper width): 6mm ~ 130mm
Overall size: about 1600mm × 780mm × 1400 (length × width × height);
Applicable power supply: 220V / 50HZ;
Machine weight: about 180Kg.
Applicable label inner diameter: Ø76mm Applicable label outer diameter: Ø 260mm
Features of flat surface labeling machine
◆ Stable card splitting, using advanced sorting-reverse dial technology to split cards, the card sorting rate is much higher than that of ordinary card splitting institutions;
◆ Sub-card labeling speed is high, and the supervision code for the medicine box can be stabilized at more than 200 pieces / minute;
◆ Wide range of application, can meet the labeling of various cards and papers, suitable for unfolded carton labeling;
◆ The labeling accuracy is stable. The pressing roller is used to press the workpiece, the conveying is stable, and it can not be warped, ensuring the labeling accuracy;
◆ The structured combination of mechanical adjustment part and the clever design of label winding, 6 degrees of freedom of labeling position are easy to fine-tune, which makes the conversion between different products and label winding easy and time-saving;
◆ Intelligent control, automatic photoelectric tracking, with functions of no labeling, automatic calibration without label and automatic label detection function to prevent missing labels and label waste;
◆ High stability, Panasonic PLC + Panasonic touch screen + Panasonic needle electric eye + German Leuze label electric eye advanced electric control system, support equipment 7 × 24 hours operation;
◆ With fault alarm function, production counting function, power saving function, production number setting prompt function, parameter setting protection function.
◆ Optional functions and components:
① Hot coding / printing function;
② Automatic material receiving function (considering product consideration);
③Automatic feeding function (considering product consideration);
④ Add labeling devices;
⑤ Other functions (made according to customer requirements).
