YQSP-G
YQ

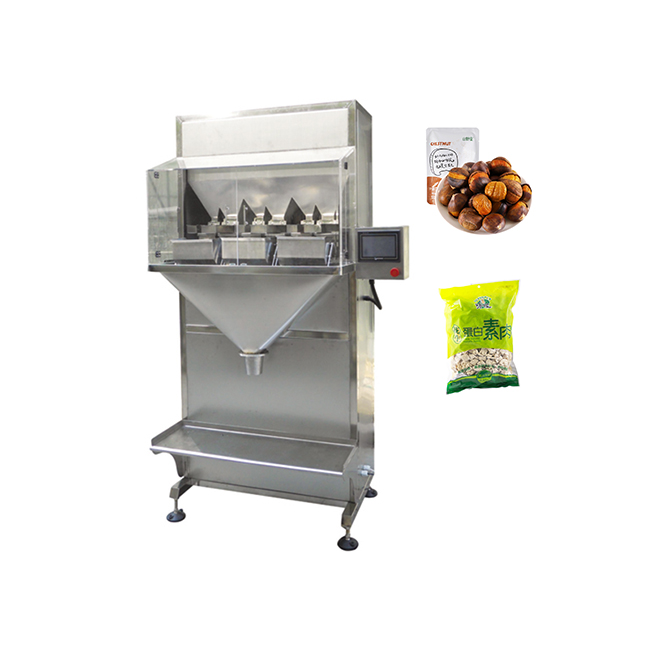

Features of granule packing machine :
1. PLC control, English key screen operation, only need to input the weight parameters, the system can automatically calculate the fast addition value, slow addition value, and can automatically track and correct the error value.
2. This granule packaging machine can choose single-scale weigher, double-scale weigher, and four-scale simultaneous three kinds of feeding methods, which is convenient for expanding packaging specifications or applying to four materials mixed packaging.
3. It can display the time occupied by each level of fast, medium and slow feeding in a self-service mode, which is more convenient for users to adjust.
4. Both the photoelectric switch can be used to control the product feeding, and the foot switch can also be used to control the product feeding.
5. Adopt fast, medium and slow three-step feeding method, high speed and high precision.
6. Manual bagging, photoelectric induction, automatic measurement.
7. Electronic scales directly measure, high weighing accuracy.
8. PLC control, strong anti-interference.
9. (The number of bucket scales is optional) Single-head scale, two-head scale, four-scale bucket measurement, higher efficiency.
10. Fully open door, stainless steel mechanism, easy and fast cleaning.
Application:
This granular packaging machine is suitable for quantitative packing of granular, powdery materials such as salt, monosodium glutamate, chicken essence, sugar, seeds, rice, pesticides, fertilizers, animal feed, feed, premix, additives, washing powder, etc.
Technical Parameter:
Packing speed: 600-3600 bags / min (single head scale, two head scale, four head scale)
Packaging accuracy: ± 1% (depending on the material)
Packing specification: 10-3000g
Power supply power: AC220V 50Hz 0.8kW
Dimensions: 1260 × 1000 × 2180mm (two-end scale)
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by wrong operation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
