Introduction

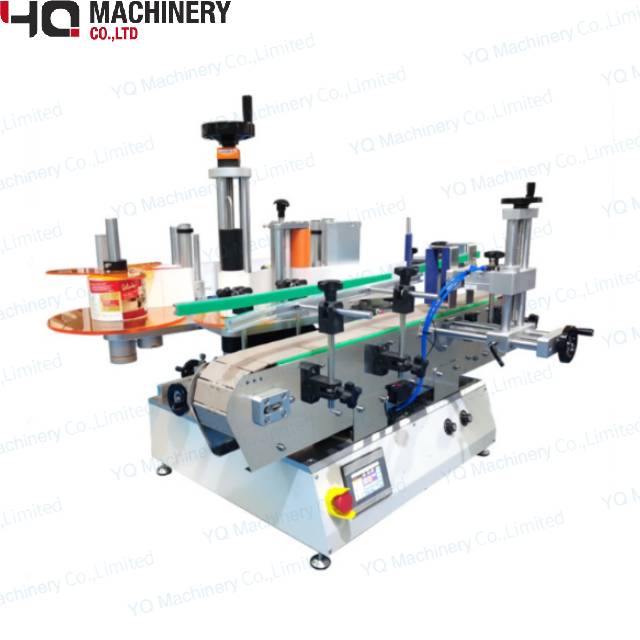

Tabletop bottle labeling machine is an industrial equipment used in production or packaging lines to dispense or attach labels on round containers.Technically, it applies prefabricated labels to products or product packaging.
Semi-automatic round bottle labeller is driven by advanced stepping motor that made the labeling process stable, accurate and also synchronized to the conveying speed. Round bottle labeller is equipped with knob-controlled microcomputer, providing the simple-to-operate user interface for inexperience operator, also, the sensor will detect the label and product automatically to ensure the efficiency and accuracy of labeling procedure.
Tabletop round bottle labeler is suitable for Round bottles and Cylinders in both large and small volume, being able to use the label in types of fully wrap-around, half wrap-around and front-and-back. Furthermore, the tabletop labeling machine can apply to the round container that made of plastic (PE, PET, PP), glass and metal, being designed for cosmetic, food, pharmaceutical and chemistry industries.
Working Principle
Sensor detect passing bottles and send a signal back to our control system.At appropriate position,the system controls labels to be sent out and place to a suitable position.

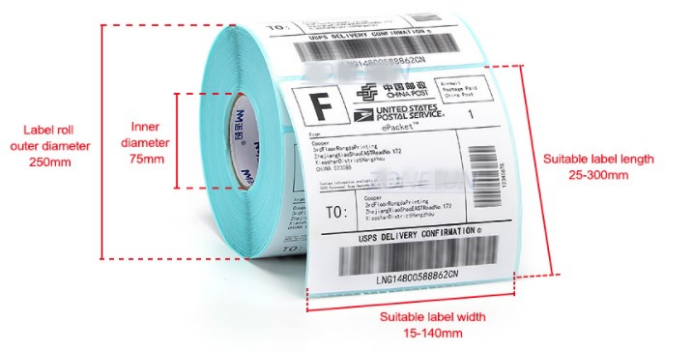

Specification For Label Roll
Technical Parameter
Model | YQCB-50 |
Voltage | 220/110V;50/60HZ;1P |
Capacity | About 20-60 bottles/min |
Suitable Labeling Size | 15-140mm(W)*25300mm(L) |
Roll Inside Diameter(mm) | φ75mm |
Roll Outside Diameter(mm) | φ250mm |
Bottle Diameter | About 30-100mm |
Conveyor | About 1310*100mm |
Package Size | About 1460*700*960mm |
Package Weight | About 130Kg |
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by misoperation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
