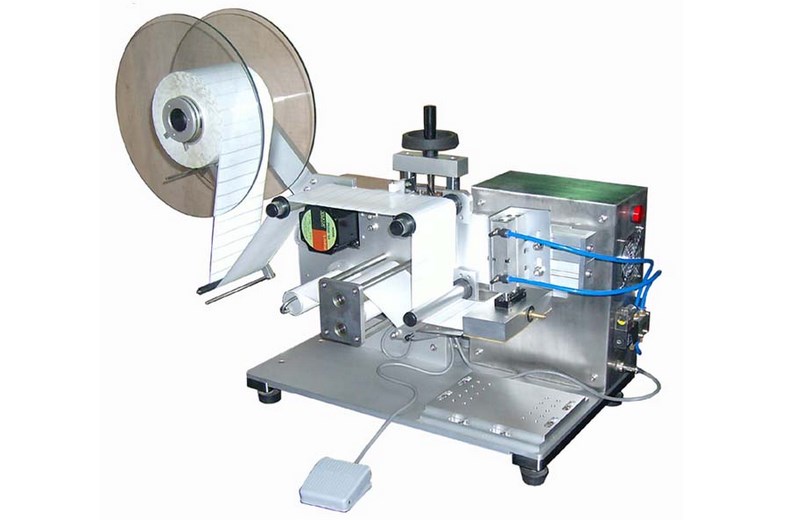

YQTB-70
YQ
Specifications:
1.pneumatic and electric control
2.stable performance
3.high precision
4.economical and practical
5.easy operate
Features:
Low Cost Entry-level Labeling Solution For Low Production
For Flat surface labeling application, e.g. box and cover etc.
High precision with label position
Improve efficiency for minimal cost
Maintenance free and easy to use
Aluminium Alloy construction
Compact desktop design, occupies minimum space
Transparent label sensor to detect and ensure no label missing
Thermal Coder optional
Main technical parameters:
Accuracy | ±1mm |
Speed: | 20 - 60pcs per minute |
Label Width | 30 ~ 120mm |
Label Length | 30 ~ 120mm |
Applicable range of container | L:30-300mm W:30-150mm H:50-350mm |
Max. OD of Label Roll | 300mm |
Label Roll ID | 76mm |
Label pitch | 3-4mm±0.2mm |
Power Supply | 220V 50Hz |
Power Rating | 120W |
Dimension | 60×45×60cm |
Weight | 38Kg |
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 50USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by wrong operation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
Specifications:
1.pneumatic and electric control
2.stable performance
3.high precision
4.economical and practical
5.easy operate
Features:
Low Cost Entry-level Labeling Solution For Low Production
For Flat surface labeling application, e.g. box and cover etc.
High precision with label position
Improve efficiency for minimal cost
Maintenance free and easy to use
Aluminium Alloy construction
Compact desktop design, occupies minimum space
Transparent label sensor to detect and ensure no label missing
Thermal Coder optional
Main technical parameters:
Accuracy | ±1mm |
Speed: | 20 - 60pcs per minute |
Label Width | 30 ~ 120mm |
Label Length | 30 ~ 120mm |
Applicable range of container | L:30-300mm W:30-150mm H:50-350mm |
Max. OD of Label Roll | 300mm |
Label Roll ID | 76mm |
Label pitch | 3-4mm±0.2mm |
Power Supply | 220V 50Hz |
Power Rating | 120W |
Dimension | 60×45×60cm |
Weight | 38Kg |
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 50USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by wrong operation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
