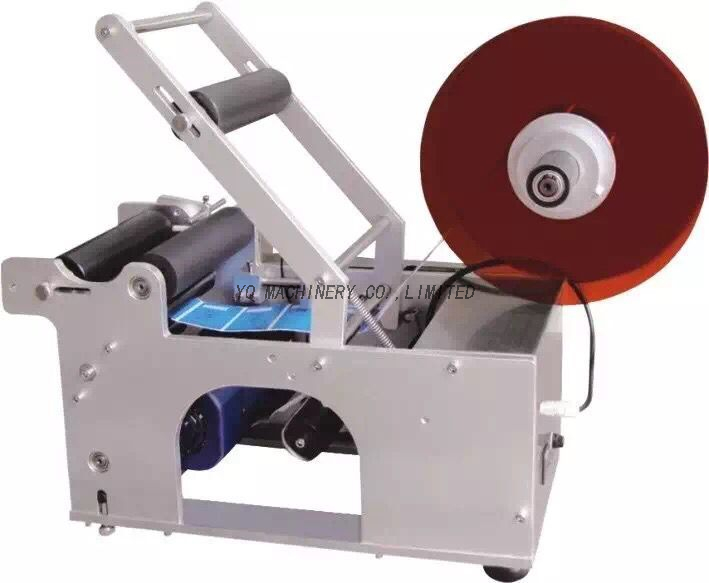

YQBZD-50
YQ
Specifications:
1.Easy operation, Easy printing.
2.Suitable for glass and plastic bottle
3.High accuracy,high quality and high speed
Application:
Suitable for different size of adhesive label or adhesive film on all kinds of bottle,High accuracy and high speed,dispensing & labeling automatically.
It is used in PET bottle, plastic bottle, glass bottle, Metal bottle etc.
Features:
· The position of labeler head is adjustable, up and down, forward and back.
· Suitable for kinds of bottles
· Good labeling quality, no air bubble, no ruga.
· Compact body, need not maintenance
Characters:
Core principle: the sensor detects the product in place or foot in place to issue product signals, adsorption label suction head down and follow-labeling and then returned to adsorption next label, waiting for the next signal, a labeling action completed;
* Operation: put product - "determined in place (equipment detection and control or manual control) -" labeling (device do automatically) - " take out labeling products.
Main technical parameters:
Model | YQBZD-50 |
Working speed | 20-40BPM |
Labeling accuracy | ±1mm |
Labeling max width | 150mm(Be designed and produced according to customer requirements) |
N.W. | 30KG |
Label inner diameter | Φ76.2mm |
Label outer diameter | Φ350mm |
Machine size | 980*420*650mm |
Using power | 220V 50Hz 300W |
After-sale service:
1. Instruction for Installation and Debugging
Before delivery, we takes responsible for debugging of machine, in order to make sure the provided machine could be safely and smoothly put into operation.
We also take responsibility to have debugging overseas, and Client abroad please sends invitation forward of time to engineer, provides the engineer with round-trip tickets, accommodation, vehicle and $80 per day salary.
2. User Training
Before delivery, we will take responsibility to indoctrinate technical training to the users so that they could understand the machine features and could operate the machine by themselves.
3. Warranty Period
The warranty period for machine is one year with a life long maintenance. If the user requires special quality guarantee, other stipulated warranty period may be made after mutual agreement.Mechanical models are standard, make special design according to customer requirements.
