Feature:
A.Automatic Cut and Clamp Film
automatic cut and clamp film system, let worker no need use they hand to cut film and put film on pallet any more ,cut &clamp
fim system will do it automatically .
B.Pallet Grip system
* Pallet grip system: film bottom narrowed to become film rope, film rope grip to pallet & products during wrapping.
1.During transport, no need worry the products fall down when the pallets get violent vibration
2.If the forklift damage the film on the bottom of pallet, the film do not breach.
3.Pallet bottom grip and whole journey grip can be instead of the horizontal strapping machine
C..Saving Film Consumption
Maximum up to 380% pre-stretch rate
Maximize the value of each meter of stretch film Standard constant releasing film Fixed-point wrapping and quantitative use film
D.Muti-layer Function
This function we can set different wrapping circles, wrapping force at any height you want and maximum we can set 9 layers for
pallet. Normal machine's wrapping force from bottom to top is the same, and it can not stop during wrapping or achieve reinforce
wrapping function.
E.Advanced Safety Technology
1. Safety device under film carriage to protect the foot or head of the operator
2.Transparent board makes it easy to find problem without opening door.
3.Up and down belt deviation and damaged alarm system. Alarming in time to avoid carriage dropping down.

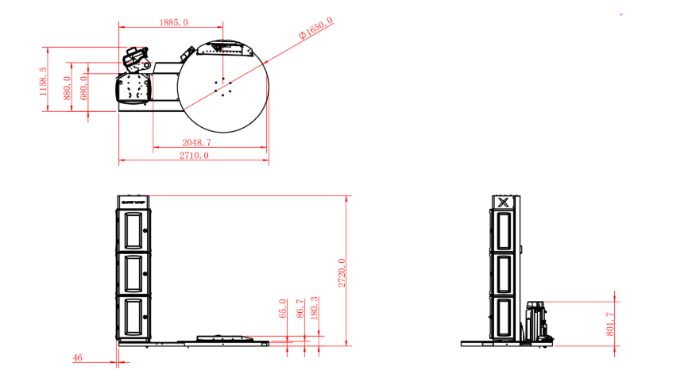

Machine size
Wrapping image
Technical parameter
Maximum wrapping speed | 10-30 Pallet/hr |
Maximum pallet size | L 500-1200mm×W 500-1200mm×H 500-1800mm |
Maximum Wrapping Height | 2000mm |
Turntable Speed | 0-12pm |
Turntable Size | 1650mm(1800mm,2000mm,optional) |
Machine Power | 1.35KW |
Film Cut and Clamp | Fully Automatic |
Max Load Weight | 1500KG |
Standard Film Width | 500mm |
Constant Film Delivery Force | Standard |
Standard Pre-Stretch | 250% |
Film Capacity | 250mm Diameter |
Up&down Drive system | Up&down Drive system |
Fix Film on Pallet | Automatic |
Roping system | Have |
Muti-layer function | Have |
Machine Size | 2750*1650*2350mm |
Machine weight | 700KG |
Voltage | 220 V; single phase; 60hz |
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by wrong operation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
