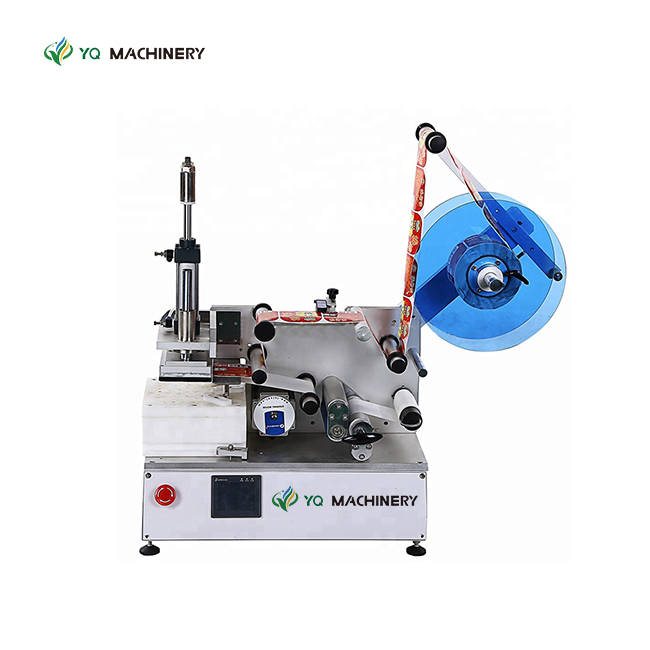

YQSL-25
YQ
Application:
Apply the suction method to label , realize labeling all kinds of work pieces on the plane, such as flat bottles for cosmetics, packaging boxes and plastic caps.Change the cover marking mechanism, can be applied to uneven surface labeling, such as concave plane, arc surface labeling.The modified jig can be applied to label various irregular work pieces.Color tape printer or ink-jet printer is selected to print the production date and batch number on the label, realizing the integration of coding and labeling.
Main technical parameters:
| labeling speed | ±0.5mm |
| applicable product diameter (for round bottle) | 60-300pieces per mimute |
| applicable product size(heght) | 20mm~300mm |
| applicable product size(width) | 20mm~150mm |
| applicable label size | length: 15mm~200mm bottom paper width:15mm~150mm |
| label's drum inner radius | Φ76mm |
| label's largest outer radius | Φ280mm |
| whole machine size(lenget*width*hight) | 850mm*410mm*720mm |
| applicable power supply | 220V/50HZ |
| whole machine wight | 35Kg |
| The power of motor(w) | 48W |
About Packing：
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
After-sale service:
1. Instruction for Installation and Debugging
Before delivery, we takes responsible for debugging of machine, in order to make sure the provided machine could be safely and smoothly put into operation.
We also take responsibility to have debugging overseas, and Client abroad please sends invitation forward of time to engineer, provides the engineer with round-trip tickets, accommodation, vehicle and $100 per day salary.
2. User Training
Before delivery, we will take responsibility to indoctrinate technical training to the users so that they could understand the machine features and could operate the machine by themselves.
3. Warranty Period
The warranty period for machine is one year with a life long maintenance. If the user requires special quality guarantee, other stipulated warranty period may be made after mutual agreement.Mechanical models are standard, make special design according to customer requirements.
