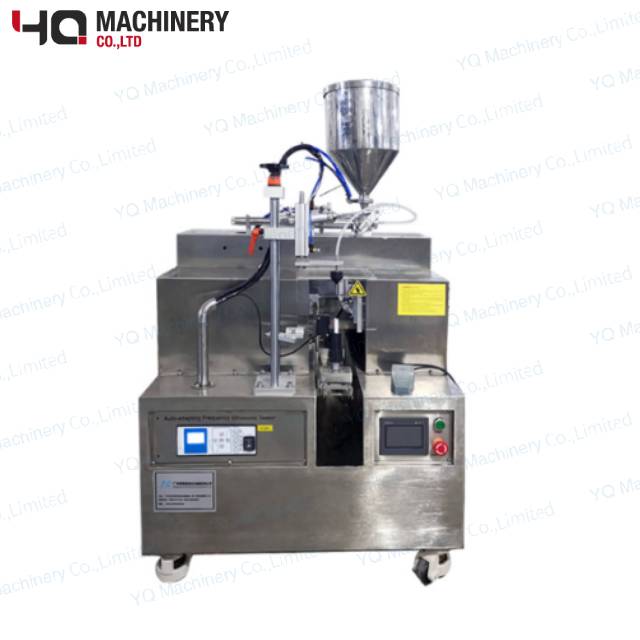

Introduction:

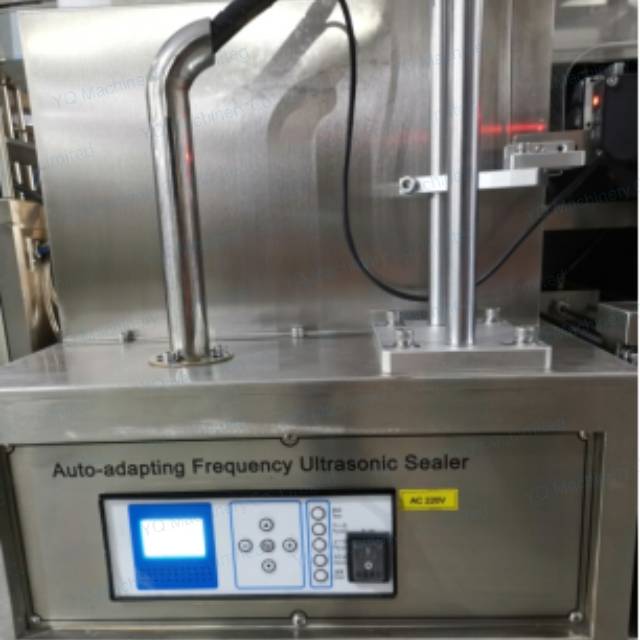

The process of tube sealing machine eliminates the use of glue and allows the thermoplastic parts to bond to itself. Ultrasonic sealing with the proper time setting and pressure is the fastest most reliable method for a variety of tube material sealing.
features:
1.Advanced plc control,easy operation.
2.304# stainless steel machine body,acidalkali resistance and corrosion resistance,fully up to related food/cosmetic/pharmaceutical sanitation standard.

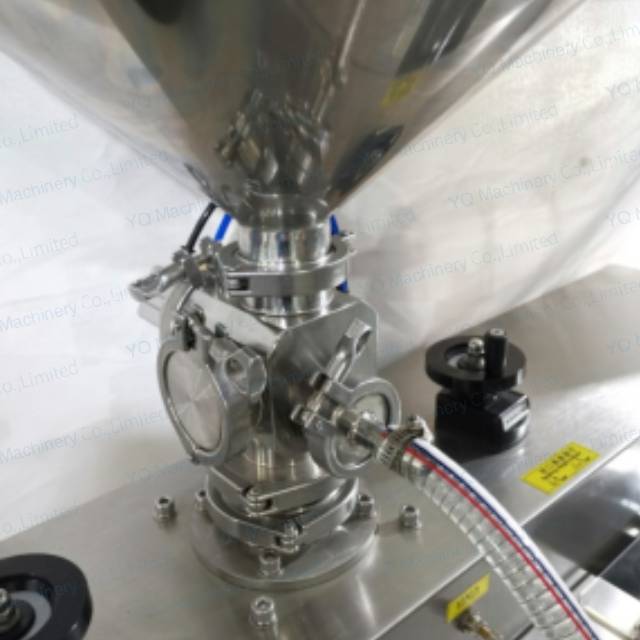

3.Advanced anti-drip filling head,suitable for high viscosity material filling.
4.Adopt Panasonic mark sensor,speed and precision.
Parameters:
Ultrasonic Power | 2000 W |
Frequency | 20 KHz |
Power Supply | AC 110/220V, 50/60Hz |
Working Pressure | 0.5-0.7 MPa |
Delay Time | 0.01-2.99 S |
WeldTime | 0.01-2.99 S |
Hold Time | 0.01-2.99 S |
Driven Mode | Pneumatic |
Stroke | 75 MM |
Tube Diameter Range | 10-50 MM |
Tube Height Range | 50-200 MM |
Filling Range | A: 5-60 ml B: 10-120 ml C: 25-250 ml D: 50-500 ml |
Capacity | around 10 tubes/min |
Packing Dimension L*W*H | 1110*840*1510MM=1.4CBM |
Gross Weight | 230KGS |
Working Flow
1.Manually feeding the tubes
2.Automatic mark positioning (photoelectrical sensor)
3.Automatic dosing filling
4. Tail inner heating (leister heating gun)
5. Tail sealing and pressing the batch, dates
6.Tail trimming
7.Automatic ejection for finished tubes
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by wrong operation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
