Introduction:

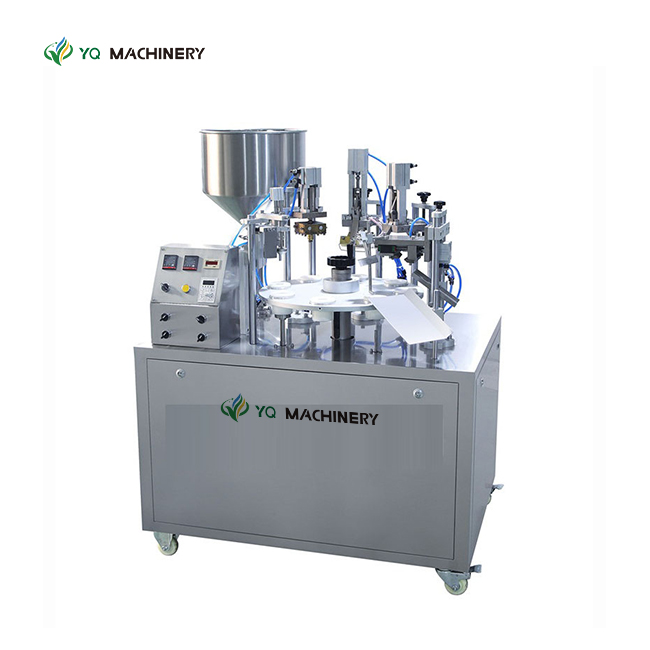

This machine applies the transmission principle. It uses the slot wheel dividing system to drive the conveyor table to do intermittent movement. The machine has 8 or 10 tube stations. Expect manually feeding the tubes onto the machine, it can automatically position the tubes, fill the material into the tubes, heat both inside and outside of the tubes, seal the tubes, press the codes, and trim the tails and the finished tubes exit.
Filling measurement is accurate by the pistol plunger. Heating time is stable and adjustable. Sealed tail looks pretty and neat and the trimming is very even. This machine has stable performance and has no any noise and pollution during production.
The part which is contact with the filling material is made of high-quality stainless steels 304 or SS316L. The parts which need to clean are made of quick-change device that is removable and convenient for washing.
If some materials need heating insulation, the heating thermostat device can be added outside of the feeding barrel.
features:
1. The material contact parts are made of stainless steel SUS304; SUS316 is optional.
2. The connection of the various is used the quick-change device, which is easy to disassemble and clean;
3. high-quality pneumatic components
4. The height of conveyor table can be adjusted easily by a hand wheel for different tubes
5. Pistol plunger filling system processed by digital controlled lathe to guarantee a high filling precision of 1%. And the volume is adjustable.
6. The filling speed can be adjusted freely a VFD
7. Production counter could be displayed on the control cabinet
8. Inner heating and out heating technology, a stable and good looking sealing is got.
Parameters:
Power | 220V 50HZ Single phase |
Rate | 1.2KW |
Filling volume | 5--250ml |
Tube diameter | Φ13~40mm,Φ40-50mm |
Producing speed | 20-30pcs/min |
Filling accuracy | ±1% |
Dimension | 1200*850*1500mm |
Weight | 320kg |
Working air pressure | >0.4Mpa |
Working Flow
1.Manually feeding the tubes
2.Automatic mark positioning (photoelectrical sensor)
3.Automatic dosing filling
4. Tail inner heating (leister heating gun)
5. Tail sealing and pressing the batch, dates
6.Tail trimming
7.Automatic ejection for finished tubes
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by wrong operation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
