YQW-50
YQ
Usage:

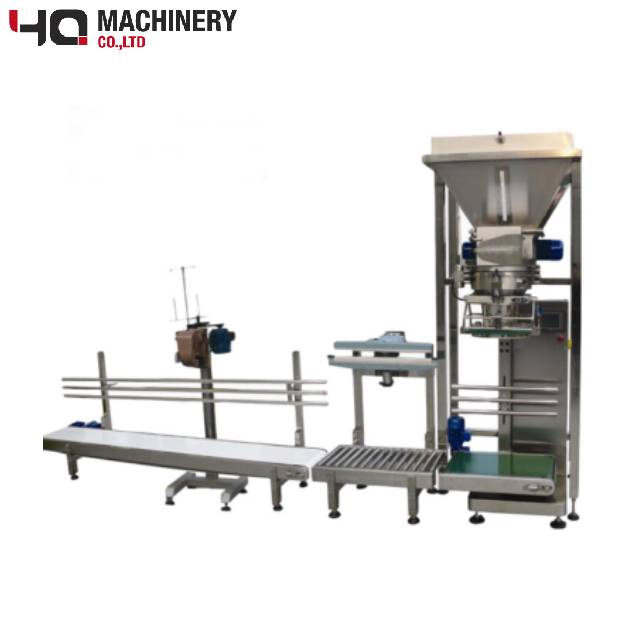

This granule weighing and packaging machine is suitable for different granular and powdery materials such as salt, monosodium glutamate, chicken essence, sugar, seeds, rice, pesticides, fertilizers, animal feed, feed, premix, additives, washing powder, etc.
Features:
1.PLC control, touch screen operation, only need to input the weight parameter, the system can automatically calculate the fast and slow add-on value, and can automatically track and correct the error value.
2.It can choose single-scale rotation, double-scale parallel, four-scale simultaneous three discharging methods, which is convenient to expand packaging specifications or apply to mixed packaging of four materials.
3.It can display the time occupied by each level of fast, medium and slow feeding, which is more convenient to adjust.
4.The photoelectric switch can be used to control the filling, and the foot switch also can control it
5.Adopt fast, medium and slow three-stage filling method, fast speed and high precision.
6.Photoelectric induction, automatic measurement.
7.The electronic scale measures directly and has high weighing accuracy.
8.PLC control, strong anti-interference.
9. Fully open door, stainless steel mechanism, convenient and quick cleaning.
Techinical parameter
Model | YQW-50 |
Voltage | 220V/380V;1P/3P;50/60HZ |
Capacity | 300-600 bags/h |
Packing range | 5-50kg |
Packing speed | 2-4 bags/min |
Power | 1500kw |
Size | 1800*900*2300mm |
Weight | 350kg |
Material | stainless steel |
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by wrong operation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
