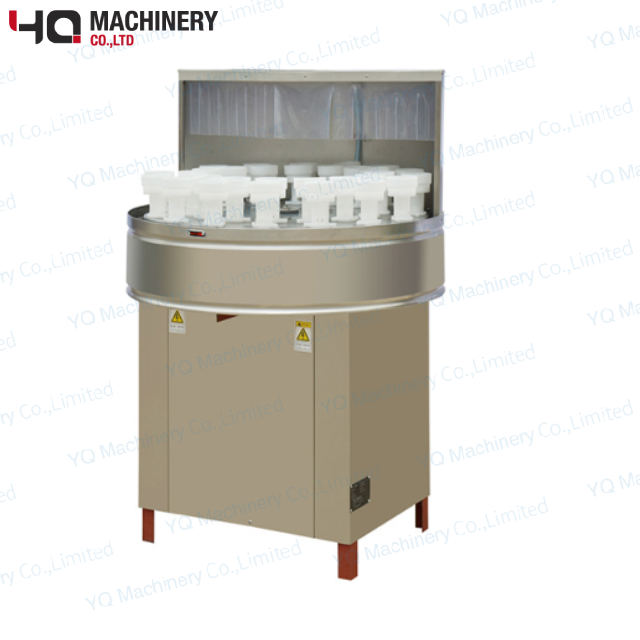

YQBR-40
YQ
Features:
1. The outer wall of the bottle is sprayed, the inner wall is rinsed, and the rinsing is hygienic.
2. Use low-pressure pump to pressurize and circulate bottle washing, with low water consumption.
3. Simple structure and convenient maintenance.
4. Save labor and high production efficiency, applicable to a wide range of bottle types (change different bottle holders can be used for wide-mouth bottles, narrow-mouth bottles).
Working principle:
1. The outer wall of the bottle is sprayed by a spray head, and the spray pressure can be adjusted by the spray switch. (The external water source pressure need to be higher than 0.1Mpa, if it is lower than this pressure, you need to prepare your own booster pump.)
2. When the inner wall is flushed, the lower valve body is statically fixed on the bracket, and the upper valve body is integrated with the upper plate through the nozzle and rotates at the same time, and rotates at the same time. When the water inlet of the lower valve body is connected, the water is pressurized to flush the inside of the bottle through the nozzle.
Instructions:
1. Before use, first check whether the various bottle funnels are firmly installed, whether the water outlet of the storage bucket is connected to the drain pipe, and then connect the water inlet pipe to confirm the motor wiring is intact.
2. Turn on the power, start the machine, load the bottle and turn on the water inlet switch at the same time (or start the water pump)
3. Get proper bottle flushing pressure by adjusting the water inlet.
4. When shutting down, turn off the water inlet switch (or water pump), and then cut off the power supply.
Maintenance and repair:
1. The bottle rinsing machine drive worm gear must be refueled once a day.
2. Check the firmness of the solid parts of the bottle washing machine at any time, and whether the motor belt is loose and slippery.
3. When it is found that the pressure of the nozzle of the bottle rinser machine is insufficient or no pressure, take the iron wire and poke the nozzle a few times. If it still fails, remove the nozzle and clean it.
4. When it is found that the rinsing effect of the whole bottle rinsing equipment is not good, first check whether the water pressure is normal, and then check whether the management road is blocked
Technical parameter:
1. Number of rinsing heads: 24 heads-36 heads
2. Capacity: 1500-2500 bottles/hour
3. Motor power: 0.55KW/220V;single phase
4. Applicable bottle height: 100-350mm
5. Applicable bottle diameter: 40-100mm
About packing
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch
film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow exfactory confirmation sheet, the machine cannot leave factory
All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment
fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our service
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by wrong operation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
