Introduction:

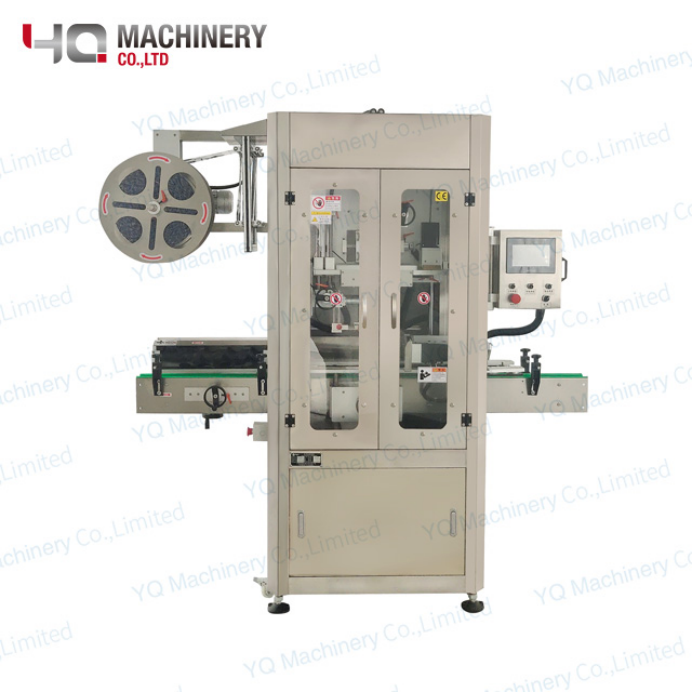

Our shrink sleever series adopt the newest technology with PLC control. The humanize operation, the structure can be easy adjusted up and down with automatically. The sleeve labeler has been nice designed.Even use this shrink sleever machine for a long time, it can still runstable and smoothly.It has several different models with for wide range, such bottle cap or full body of the container etc with different speed from 150BPM to 400BPM.
Features:
-Made with 304 stainless steel for maximum stability and elegance.
-Utilizes servo motor, giving an efficient and accurate sleeve process.
-Height is adjustable with user-friendly controls.
-Changeover is easy and quick.
-Touch screen for operating, monitoring, and detecting.

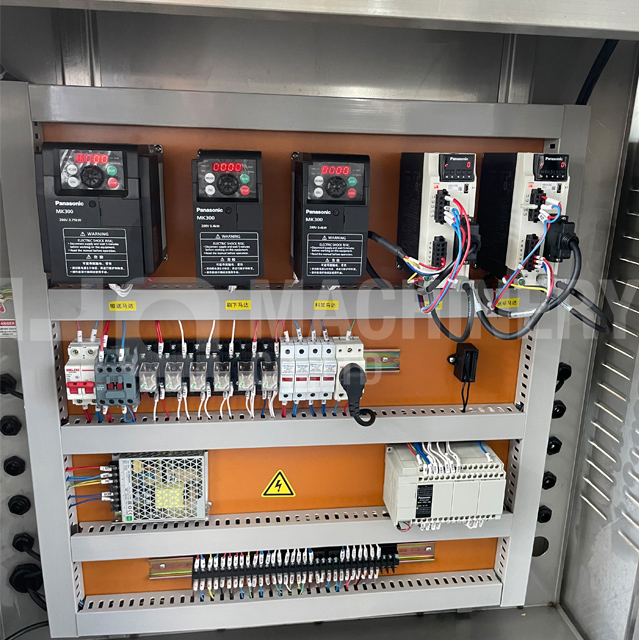

-PLC control circuit system .

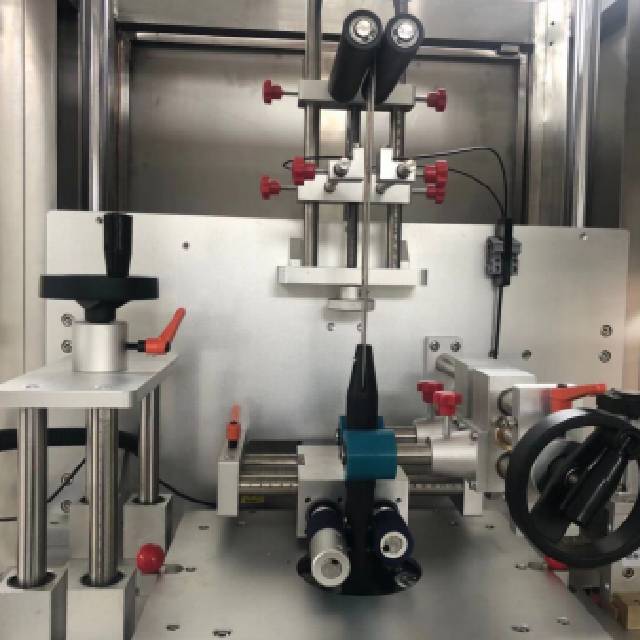

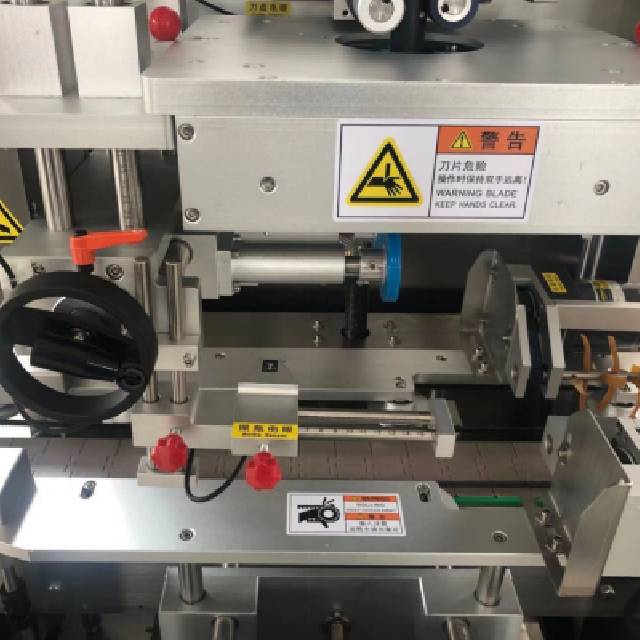

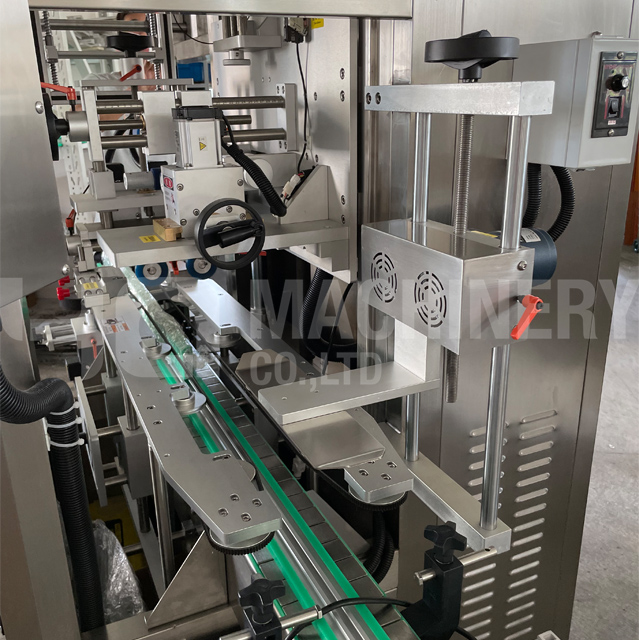

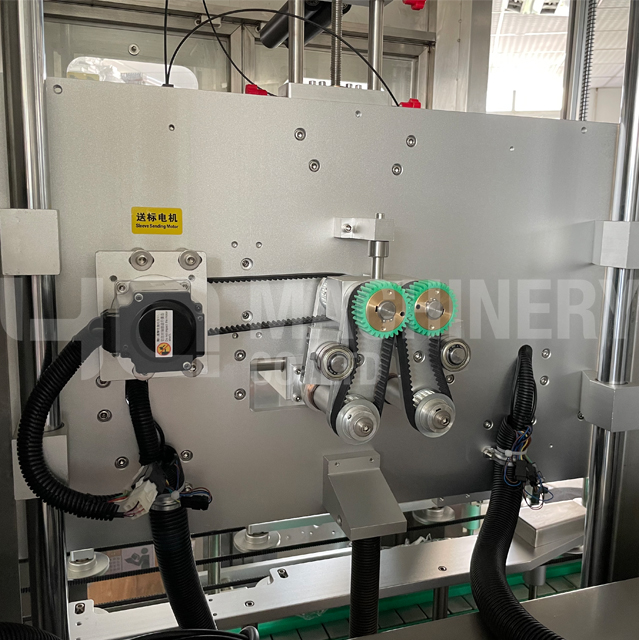

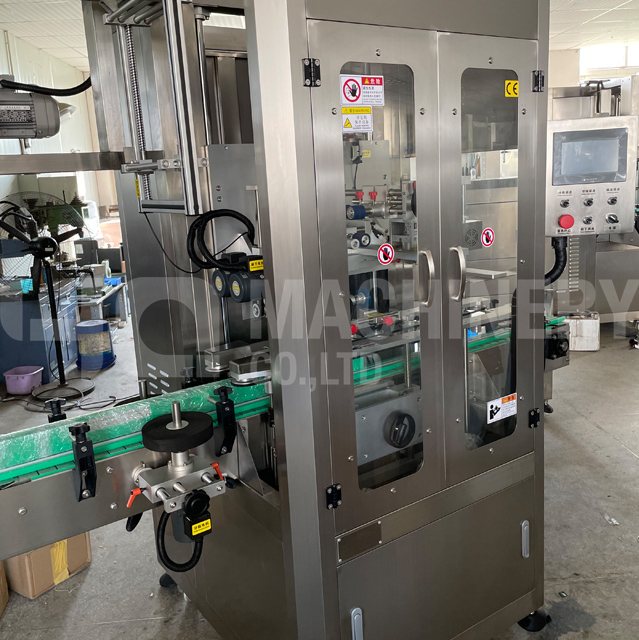

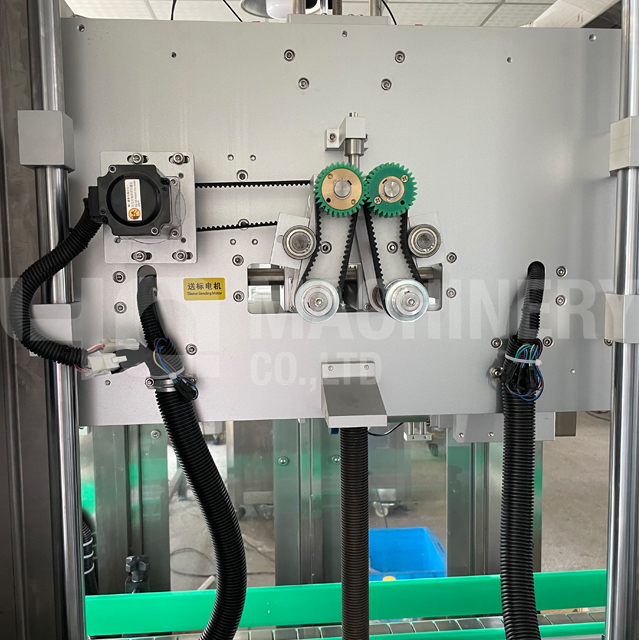

Detailed image
Technical Parameter:
Material | SS304 |
Voltage | 220VAC, 50/60HZ, 1Phase(Can be customized) |
Power | Main Power 1KW |
Speed | 250bpm (Base on 40mm film length) |
Bottle Diameter | Ψ20mm~100mm(Can be customized) |
Bottle Shape | Round, Square, Oval, Curves, etc. |
Bottle Material | Glass, Metal, Plastic |
Film Material | PVC, PET, OPS |
Film Thickness | 0.045mm |
Film Roll Inner/outer Core | 76mm/450mm |
Film Length | 22mm~200mm(can be customized) |
Bottle Height | 35~200mm |
Dimensions | 2000 mm(H) x 1150 mm(W) x 1850 mm(D) |
Net Weight | Approx 400kgs |
How to use adjust the machine
Video 2
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by misoperation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
