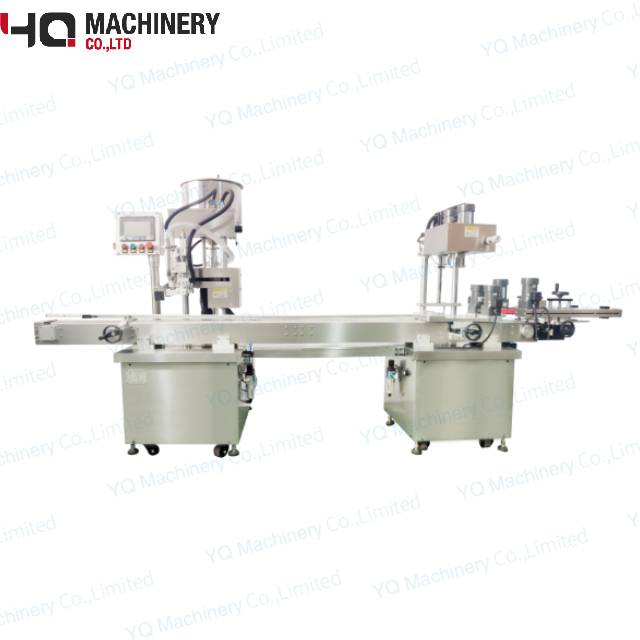

YQPT-30
YQ
Video 1
Video 2
Features:
1. Fast machine adjustment: the speed of changing bottle products is fast, and there is a formula storage function. After saving the parameters, one button can complete the machine adjustment, which is very convenient and practical to save time;
2. Applicable bottle types: diameter or width 25mm-100mm; bottle height 35mm-350mm;
As long as it can stand on the line without falling, and the bottle mouth is vertically upward, it is also suitable for various special-shaped bottles. No special adjustment is required, and the bottles can be placed on the conveyor at will;
3. Wide range of applicable products: ointment oil products suitable for the cosmetics and food industries: such as: cream, shampoo, laundry detergent, hand sanitizer, shower gel, conditioner, yogurt, essential oil, food/industrial use Oil etc.;
4. High efficiency: fast filling speed, good stability, the filling capacity cylinder is individually controlled by the brand servo motor, and the filling accuracy is high;
5. Cap screwing: The maximum cap screwing speed is 70 bottles/min, and the cap diameter range: 25-100mm; the screw cap is equipped with a double-channel screw cap, the screw cap torque is adjustable, and the pump head can be positioned;
6. Convenient cleaning: the hoop type connection and fixing method, the cylinder body and the piston rod are connected separately, and can be partially disassembled and cleaned without the use of tools. The main control screen is equipped with an automatic cleaning button
Technical Parameter:
1.Dimension:3000mm*925mm*1720mm ;Volume:3CBM;Net weight:350KG
2.Power:220V/50HZ;1KW
3.Air pressure: 0.5-0.8Mpa;Air consumption:0.1M3/min;
4.Noise ≤85dB
Working process:
One person put bottle---Automatically filling---One person put caps-Automatically capping;
Equipment capacity and speed: choose one of the cylinders (or exchange for customized capacity)
A. Cylinder capacity:100ml~1000ml
B. Cylinder capacity:50ml~500ml
C. Cylinder capacity:20ml~350ml
Take cream as an example: 50ml (more than 50 bottles/min); 200ml (35 bottles/min)
Take shampoo as an example: 250ml (35 bottles/min); 500ml (30 bottles/min); 1000ml (20 bottles/min)
Filling accuracy:+-0.5%
Function and structure description:
1. Filling principle: Servo motor connected to drive piston rod quantitative filling method; (single cylinder single servo motor connection)
2. Feeding method: storage tank (50L) + automatic replenishment feeding;
3. Capping device: cylinder presses, pre-capping and then screwing.
4. Filling capacity, filling nozzle height and screw cap height and other parameters can save formula data, which is convenient to produce the same product in the future and can be directly called without adjusting the machine, which is very fast and practical;
5. The width of the guardrail: manual adjustment;

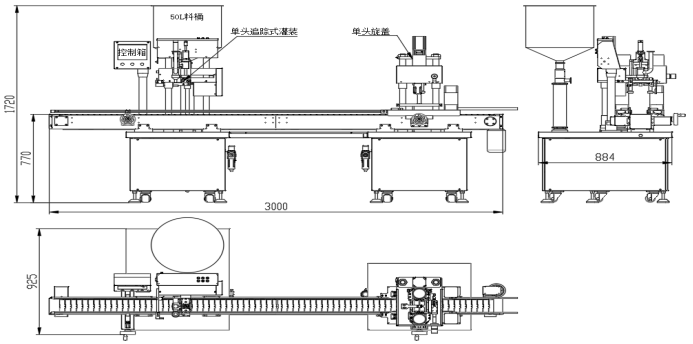

Schematic diagram of standard machine:
Parts material and heat treatment:
1. The frame square tube 60*60*1.5 and the sheet metal parts are all SUS304; the sheet metal thickness ranges from 1-10mm; the aluminum parts are national standard 6061+ sandblasting and anodizing treatment;
2. The steel parts in contact with the material body are all 316 stainless steel; the hose is a food-grade leather tube;
3. Part of the transmission parts and guide parts are blackened or plated with hard chrome; the chain plates and plastic parts are all POM+316 pins, PE or plastic king;
Main configuration
NO | Name | Quantity | Brand |
1 | PLC | 1 | Omron |
2 | Touch screen | 1 | Kinco 7 inch screen |
3 | Inverter | 1 | Holip |
4 | Switch electronics | parts | Schneider |
5 | Servo motor | 2 | Delta |
6 | Conveyor worm gear motor | 1 | GPG/Wansin |
7 | Micro motor | 2 | GPG/ Wansin |
8 | Photoelectric Sensors | 2 | SICK |
9 | U-slot photoelectric sensor | 6 | F&C |
9 | Pneumatic Components | Whole machine | Air Tac |
10 | Bering | 4 | NSK |
11 | DC24V power bos | 1 | Mean Well |
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by wrong operation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price
