YQTB-S110
YQ
Introduction:
Single-sided labeling machine is used for single-sided automatic labeling of industrial, flat/elliptical/square/conical containers and bottles.

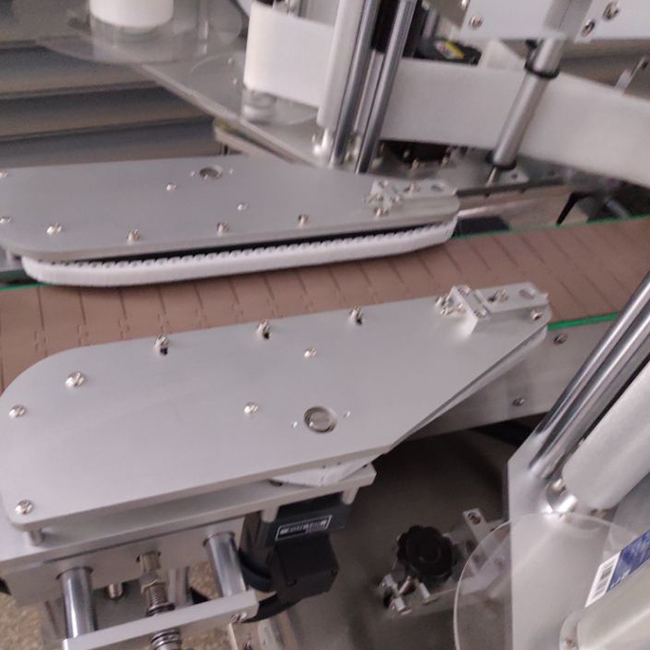

The correction mechanism ensures the alignment of the bottle shape when labeling, and at the same time solves the error caused by the high and low bottle shape during the labeling, and it runs at high speed.
Advantage:
This labeler machine adopts computer optical fiber control and synchronous tracking. The label output is controlled by a mutual-inductance servo motor to ensure that the label output speed is synchronized with the reel speed. It is a modern mechatronics product with excellent and reliable performance.
1. Simple adjustment, configuration of front and back, left and right, up and down directions, plane inclination, vertical inclination angle adjustment seat, different bottle shapes switch without dead angle, simple and quick adjustment;

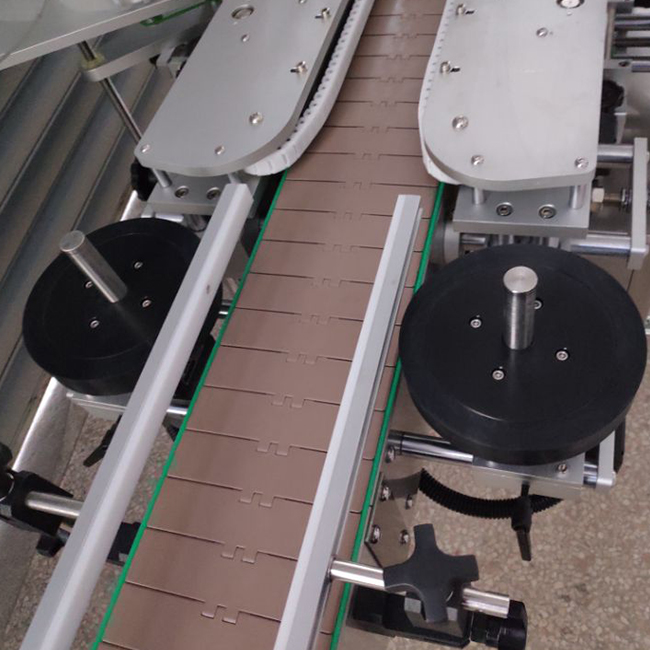

2. Automatic bottle separation, using bottle separation mechanism, effectively eliminate bottle separation not smooth which is caused by bottle error, and improve stability;
3. Touch screen control, human-computer interaction interface with operation teaching function, parameter modification is intuitive and clear, and various functions are easy to switch;
4. Intelligent control, automatic photoelectric tracking, with no object no labeling, no label automatic correction and label automatic detection functions, to avoid wasting labels and missing labels;
5. Rugged and hygienic, mainly made of stainless steel, with firm quality and meeting GMP production requirements;
6. With automatic shutdown function, production counting function, power saving function (when there is no production within the set time, the equipment will automatically go to power saving standby state), production number setting prompt function, parameter setting protection function (parameter setting is managed by authority ) To facilitate production management.
Optional: round bottle wrap around device, positioning device to achieve the labeling requirements of one machine with multiple functions.
Optional matching: automatic feeding / automatic accumulation / hot stamping or inkjetcoding, etc.
System options: transparent label detection, barcode detection, barcode reader, online product detection, QR code printing and scanning.
Main technical parameters:
Power supply | AC 220V; 50Hz(can be customized) |
Power | 2.5 kW |
Labeling speed | 30-80 bottle/min |
Inner diameter of paper roll | 75mm |
Max outer diameter of paper roll | 350mm |
Standard label height | 0 ~ 130mm |
Maximum label height | 200mm |
Weight | 750 Kg |
Machine dimension | ( L × W × H ) 2600mm x 1200mm x 1600mm |
Work flow:
Bottles distributing---Correcting---Pressing---Labeling---Reinforcing---Finish
1. Fix the label roll on the machine according to the graphical representation, adjust the height of each part.
2. Check if all the position of the labels are correct.
3. Adjust the distance between the two rails, the distance between the brush and the conveyer, make sure the distance is suitable for the product to pass.
4. Turn on the power switch, turn on the optoelectronic switch.
5. Turn on switch of the motor and label sending device, debug labeling, if there are any abnormal, get rid of them.
6. Adjust the labeling position.
7. Ensure the test is OK, then operating the machine normally.
8. Power off.
How to adjust machine
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by misoperation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
