YQSL-S150
YQ
Introduction:
This shrink sleeve labeling systems are used in a wide variety of industries including fluid milk, craft beer, ready-to-drink beverages, cosmetics, home care products and personal care products.
Applications:
1.Full body sleeves
2.Full body over-the-cap sleeves
3.Partial body sleeves
4.Tamper evident bands
6.Multi-packs
Advantage:
1.Easy Adjustment and operation: Fully automatic model with HMI panel, easily settings change with buttons and advance input.
2.Easy Maintenance: Simplified integration and consistent terminology for easier operation and maintenance. No lubrication required.
3.Strong Construction: High-quality stainless steel and strengthen aluminum construction make it a durable specialty.
4.Various Production Range and Capacity: Product width range is from 30mm-140mm offering additional versatility for production.
5.Variety of Applications: Tamper evident band, partial body sleeve, full-body sleeve, and full body over-the-cap sleeve.
6.Performance Guarantee: Every Allen Pack machine leave the factory with robust performance guarantee.
How to adjust the sleeve labeling machine
Step1:
Step 2:
Technical Parameter:
Material | SS304 |
Voltage | 220VAC, 50/60HZ, 1Phase(Can be customized) |
Power | Main Power 1KW |
Speed | 250bpm (Base on 40mm film length) |
Bottle Diameter | Ψ20mm~100mm(Can be customized) |
Bottle Shape | Round, Square, Oval, Curves, etc. |
Bottle Material | Glass, Metal, Plastic |
Film Material | PVC, PET, OPS |
Film Thickness | 0.045mm |
Film Roll Inner Core | 76cm(3inch) |
Film Length | 22mm~200mm(can be customized) |
Bottle Height | 35~200mm |
Dimensions | 2000 mm(H) x 1150 mm(W) x 1850 mm(D) |
Net Weight | Approx 400kgs |

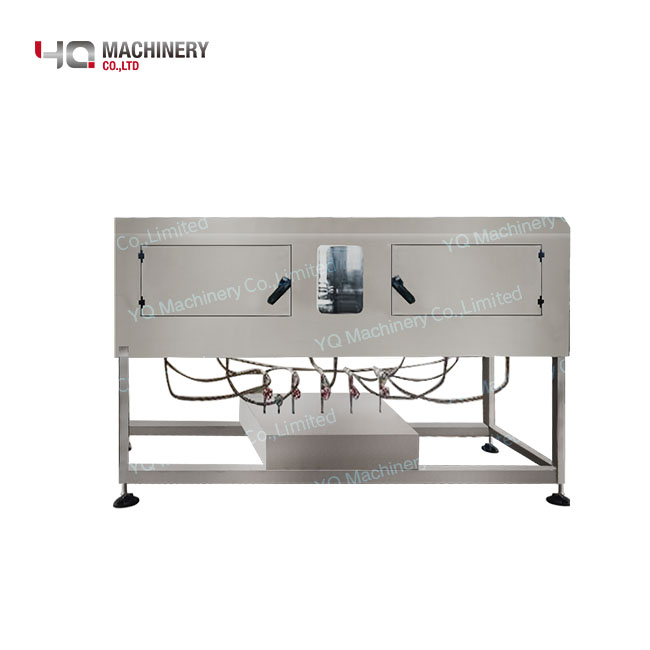

Shrink Steam Tunnel
1.In the case of different and irregular round bottles, square bottles and flat bottles etc, the new-style both steam and electricity shrinking oven is easy to adjust and maintain. It has an even shrinking .
2. The distribution of low-pressure steam drum and sqouting way of steam are uniform and designed with seamless tube.
3. The nozzle is divided to be adjustable three segments and the height , position and steam output of every segment can be adjusted respectively so as to gain the perfect shrinking effect.
4 .The whole machine is made of stainless steel with heat preservation, which not only saves energy, but also comply with the international safety standard.
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by misoperation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
