YQM-S
YQ

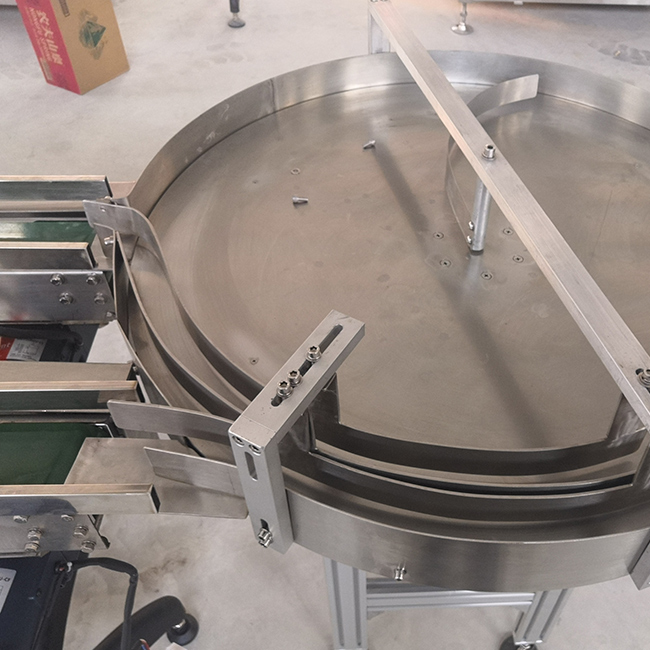

Bottle unscramble machine
Application:
Automatic bottle unscrambler is suitable for the automatic sorting and arrangement of various plastic containers (round bottles, square bottles), mainly used in the pharmaceutical industry, health products industry, food industry and related industries. The bottle arranging machine only needs to pour the bottles into the hopper, and the bottles can be sent to the next process in a certain order.
Working principle:
The bottle unscrambler is an electromechanical integrated device with convenient operation, simple maintenance and reliable operation. This plastic bottle sorting machine is equipped with a bottle quantitative control and detection and overload protection device. Encounter is less than 70db. This pet bottle unsrambler is made of 304 high quality stainless steel. Use mechanical flip bottle structure to correct bottle direction and achieve consistent bottle mouth.This bottle sorter is also equipped with a bottle storage device, which greatly improves the production efficiency. It also have 3 stepless speed regulation motors. One of them is used to adjust the speed of star wheel. The faster the star wheel is, the faster the bottle coming out. And at the exit of this rotary bottle unscrambler machine is with a sensor to detect whether there is a full bottle on the conveyor belt. If there is a enough bottle on conveyor, the motor of star wheel will stop automatically. Automatically power on if there is lack of bottles
Technical Parameters:
Production capacity: 30-120 bottles / min
Air source: 0.5-0.7Mpa
Power source: 220V / 50Hz
Power: 0.55 kw
Dimensions: 1400 * 800 * 1000mm

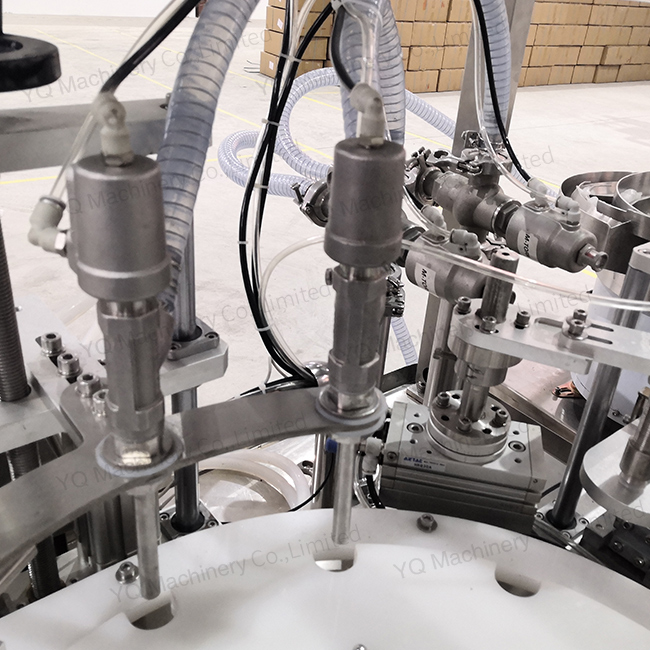

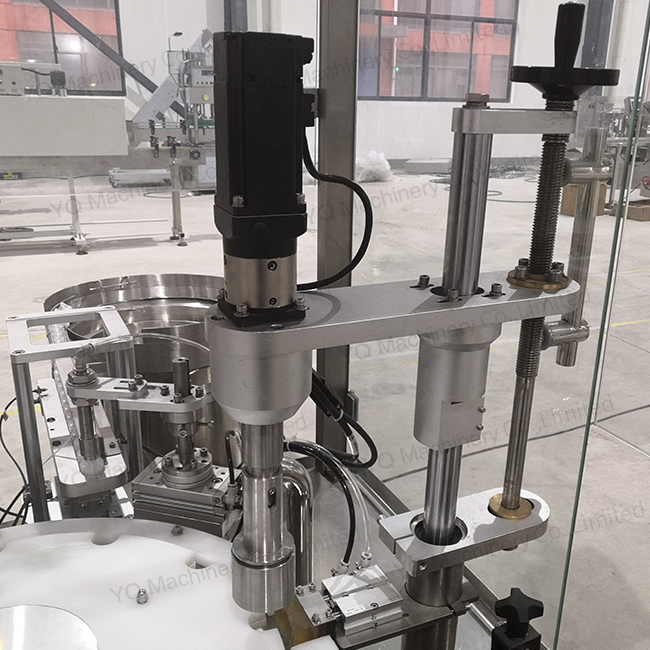

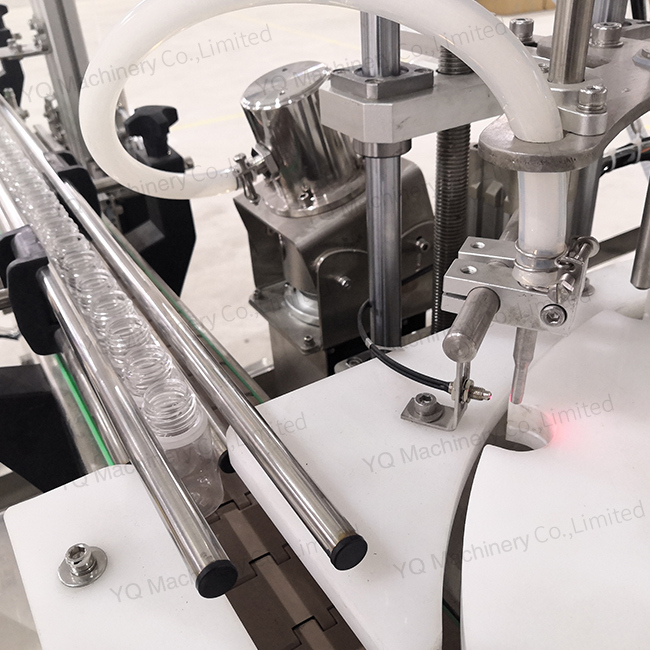

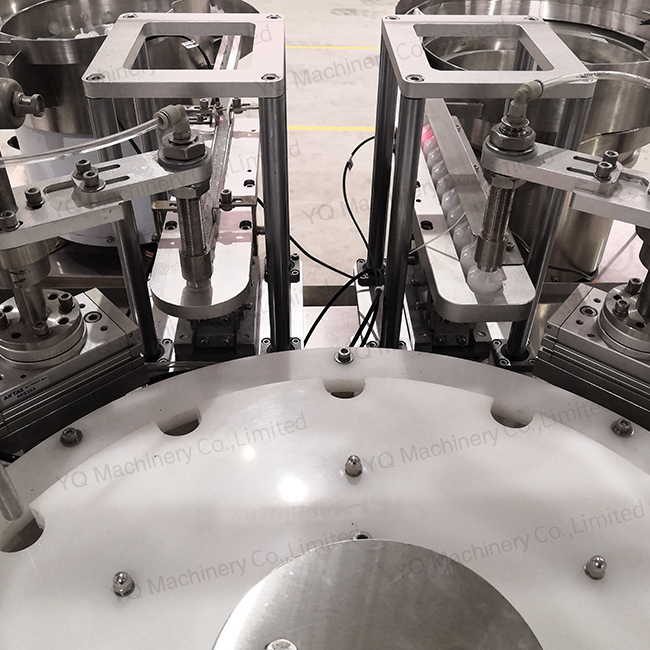

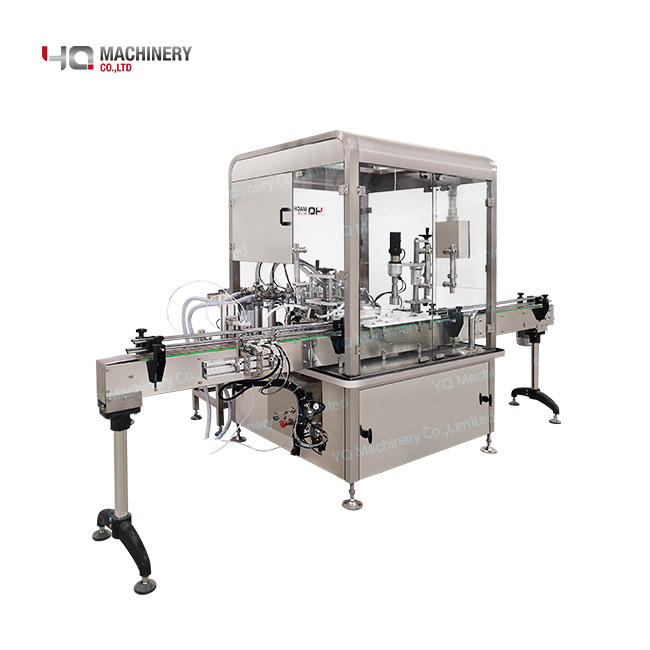

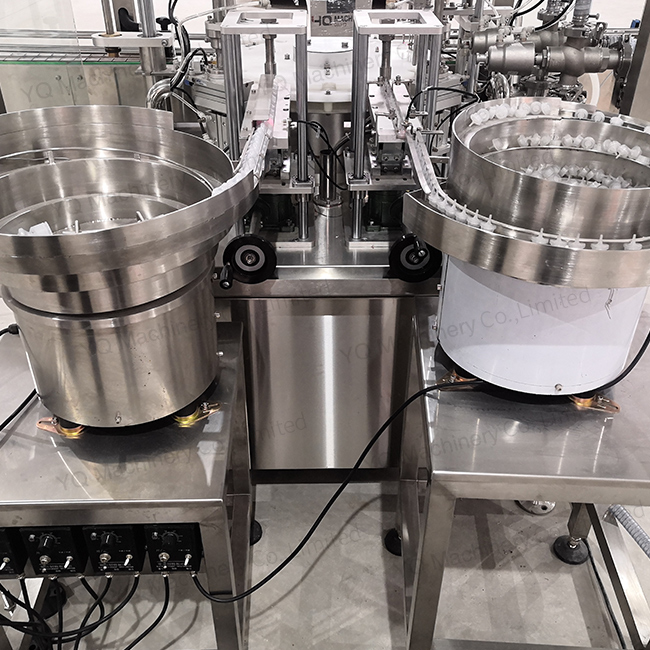

Small Bottle filling machinery
Introduction:
Monoblock filling and capping machine adopts disc positioning filling and lid capping, which is stable and reliable, with accuracy of over 99%. This machine uses high-precision closed cam indexing station, which has high precision, reliable operation and long service life. The indexer has a simple structure and can be used for long-term.
This bottle filling and capping machine is mainly suitable for fill various liquids, such as cream, lotion, e-liquid, essential oils,etc. Widely used in pharmaceutical, chemical industry and E liquid fields. This liquid filling machinery is filled with piston pumps or plunger pump with high filling accuracy. The filling and capping machinery includes conveyor belt parts, filling parts, capping parts etc. It has a compact structure, reasonable design.The filling equipment can not only stand alone production, but also form a production line with bottle sorter,labeler,cartoner and other machinery.
This filling and capping machines can be customized according to clients’ requirements.
Advantage of this bottling machine:

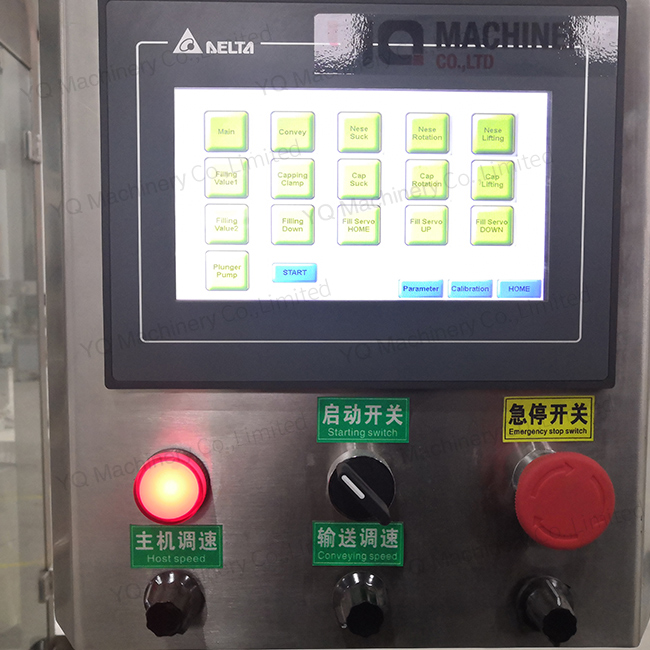

1.Man-machine interface setting, intuitive and convenient operation, PLC control, accurate loading.
2. Variable frequency control, arbitrary adjustment of production speed, automatic counting.
3. Automatic stop function, no bottle, no filling, no inner stopper.
4. Disc positioning filling, stable and reliable.
5. High-precision cam indexer control, accurate positioning.
6. Made of SUS304 and 316L stainless steel, fully comply with GMP requirements.
Working process:
1. Put the bottles on the turntable manually or the bottles move to filling machine automatically
2. Automatic filling;
3.place inner plug and cap automatically;
4. Automatic capping;
5. finished product .
Technical Parameters:
Model: YQGZ-100
power supply: 220V / 50Hz
Power: 2.5 kw
Loading range: 10-120ml (can be customized)
Loading error ≤ ± 1%
Production capacity:20-30 bottles / minute
Dimensions:2400 * 1000 * 1500mm
Net weight of machine:500 kg
Adhesive Labeling machine
a.Advanced and easy-to-operate human-machine interface system, simple and intuitive, and complete functions.
b.The PLC control system is adopted to make the machine run more stable and have a longer life.
c.General-purpose bottle sorting device. Bottles of any diameter can be adjusted quickly without changing accessories.
Optional of this labeler machine:
Transparent label sensor, synchronous thermal printer, thermal transfer printer, inkjet printer
Technical parameters of label applicators
Operating direction | Left or Right |
Labeling Accuracy | ±1.0 mm(subject to the roughness of the plane) |
Production(bottle/min) | 10-100(according to the size of bottle and label) |
Labeling Speed(m/min) | ≤40 |
Label Specifications | adhesive sticker,transparent or opaque |
The application of bottle | Outer diameter 20-100mm Height 35-200mm(can be customized according to your requirement) |
The application of label | Height 20-180mm ; Length 23-300mm(can be customized according to your requirement) |
The inner diameter of label roll | 76mm |
The outer diameter of label roll | 350mm (max) |
The power of motor(w) | 1.5KW |
Voltage | AC220V 50/60HZ Single phase |
Size appearance(mm) | 2000(L) 800(W) 1500(H)mm |

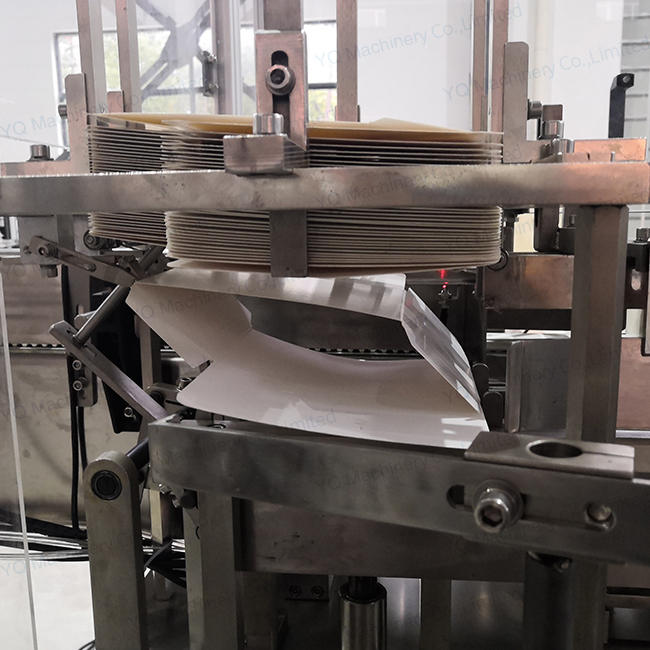

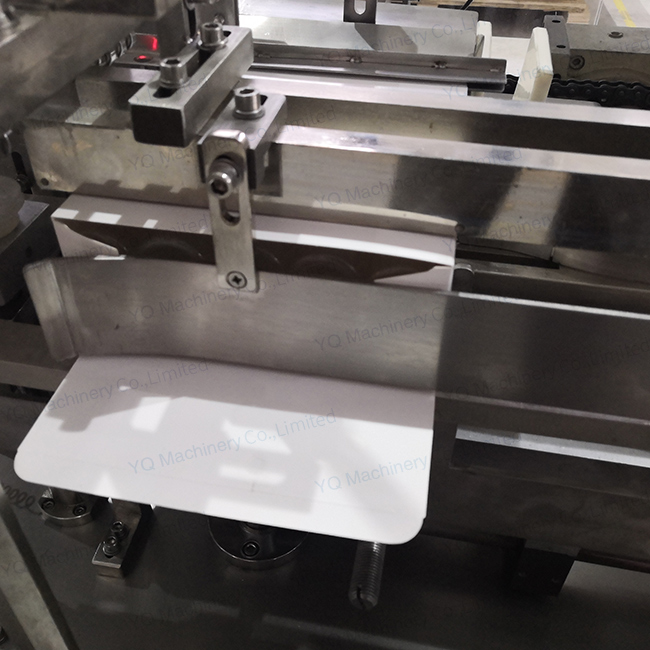

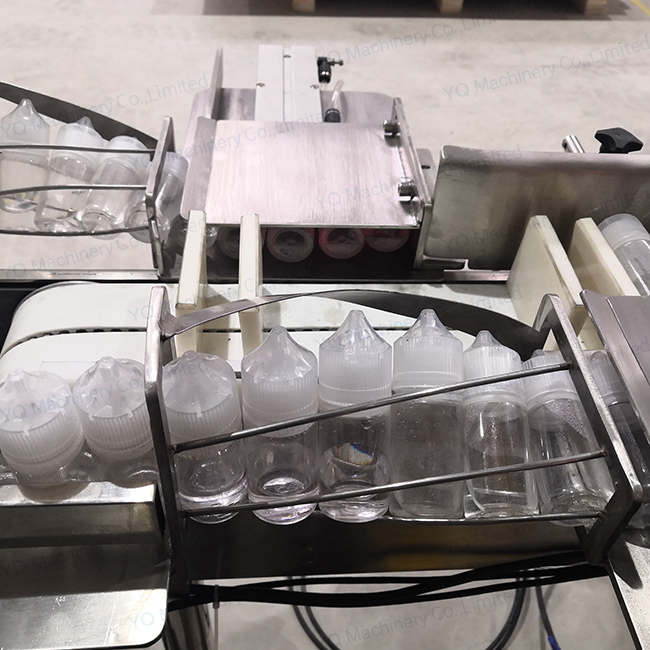

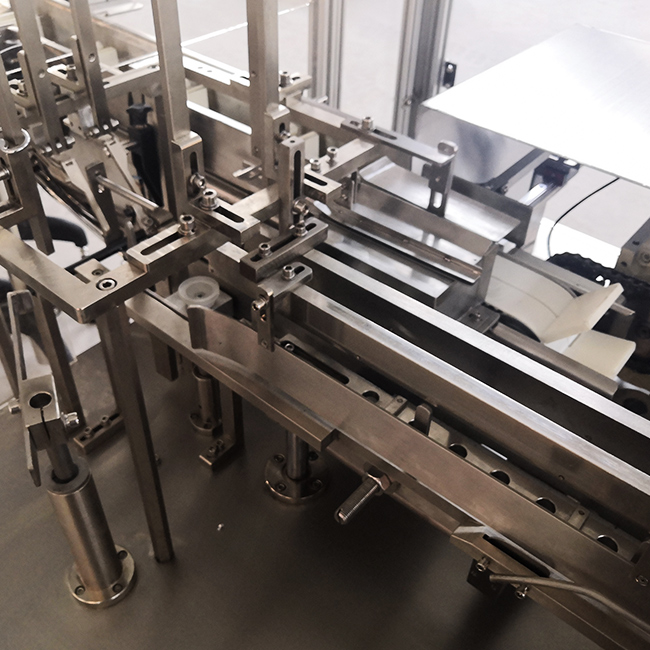

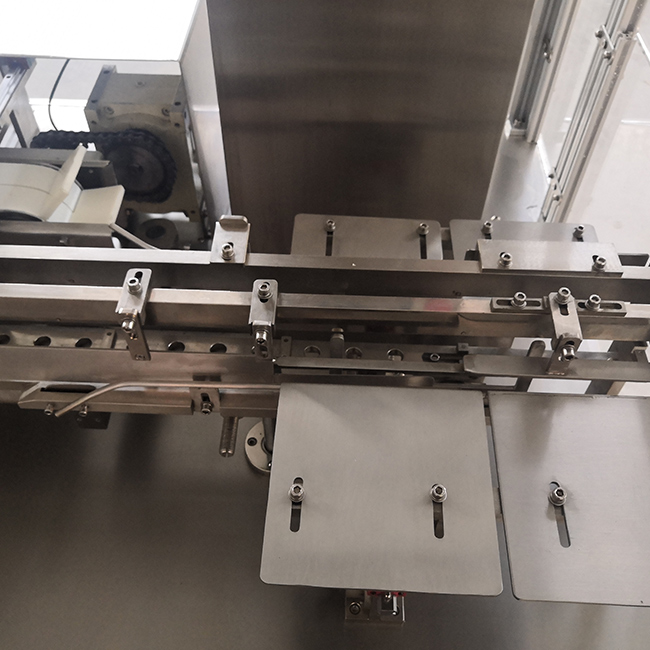

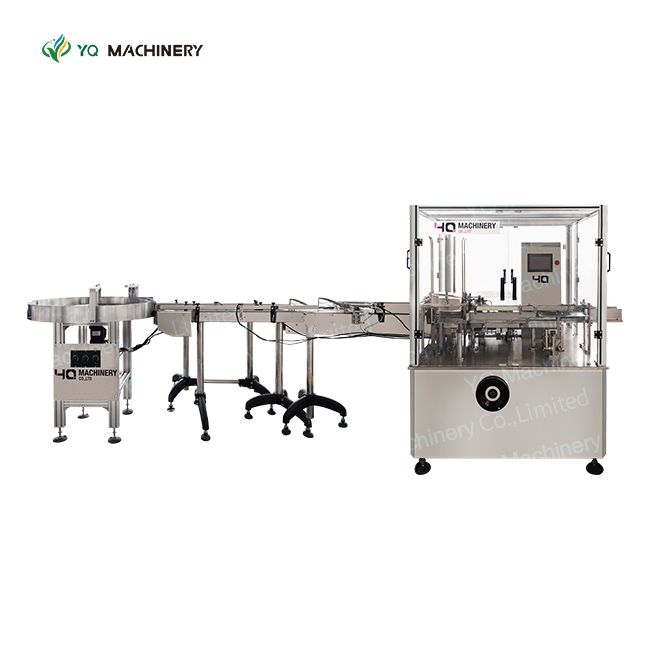

Cartoning machine
Introduction:
The Vertical cartoning machine is a continuous motion Carton Boxes Packing Machine. It is suitable for inserting Tea bag,Soap,Ice cream,Hardware,toothpaste,Tube,Butter,Stick/Bar Bag,Pillow Packing products and similar products into carton.
The machine can be single used or linked with Filling Machine, Blister Packing Machine, Shrink Machine, Three Dimensional Packaging Machine to form a production chain.
Feature:
1.International famous brand of electrical component such as PLC touch screen, frequency inverters,etc.
2.Adopt human-machine operation system.
3.Automatically displaying device for trouble, speed and finished products counting.
4.Machine running without pressing if no products or incorrect position of products. And stopping automatically if incorrect position of product into carton after return or no cartons or out of leaflets continuous.
5.No products not suction leaflet, no leaflet not suction carton .
6.Automatic detection and rejection device for lacking blister goods and leaflets.
7.Protecting automatically for overloading.
8.stable performance , operation is easy .
Main Function:
Automatic folding and conveying of manual leaflet, automatic maternal categorizing and feeding; automatic paper carton spreading; automatic manual leaflet and material carton packaging, synchronous batch number printing, automatic paper carton sealing, automatic waster eliminating.
Main technical parameters:
Encasing speed | 30-120 boxes/min | |
Box | Quality requirement | 250-350g/m2 |
Dimension range (L×W×H) | (65-125)mm×(30-85)mm×(12-50)mm | |
Quality requirement | 60-70g/m2 | |
Compressed air | Working pressure | ≥0.6Mpa |
Air consumption | 120-160L/min | |
Power | 380V/220V,50Hz/60Hz | |
Motor power | 0.75kw | |
Machine dimension(L×W×H) | 2150mm×1140mm×1800mm | |
Machine weight | 1100kg |
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by wrong operation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
