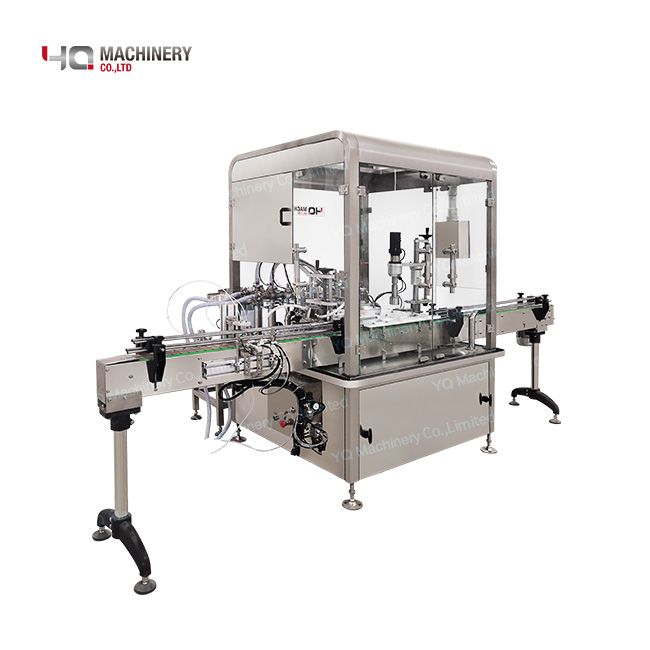

Introduction for small bottle filling machine:
a.This vial filling machine is suitable for 10-120ml round and flat bottles .The filler machine has a high-precision cam sub-mechanism to provide indexing and sub-plate positioning. Cam-driven capping head lifting;
b.constant torque capping, piston pump+Ceramic pump metering and filling.
c.touch screen control, no bottle without filling; no inner plug and outer cap,no plugging and capping;
d.with the advantages of stable transmission, accurate positioning, simple metering operation, etc.
Vial filling and capping machine features:
1. It is widely used in the food, chemical and beverage industries, suitable for filling and locking of small bottles (such as oral liquid, nail polish, eye shadow, e-liquid, essential oil, perfume, etc.). The material is SUS304 Stainless steel and 316L anti-corrosion stainless steel (specially used in contact with materials), willmeet GMP standards.
2. The working process is: bottle unscramble-automatic feeding to the filling and capping station--- Finished product
3.The vape oil filling and capping machine can be applied to various processes: filling, plugging, capping, etc.
Technical Parameters for small bottle filler machine:
Applicable specifications: 10-120ml
Production capacity: 20-30 bottles / min
Filling accuracy: ≤ ± 1%
Power: 220V / 50Hz
Power: 2Kw
Air source: 2m3 / h; 0.6-08MPa
Dimension 2400 * 1000 * 1700mm
How to change star wheel of liquid dosing machine for chubby gorilla bottle filler
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by wrong operation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
