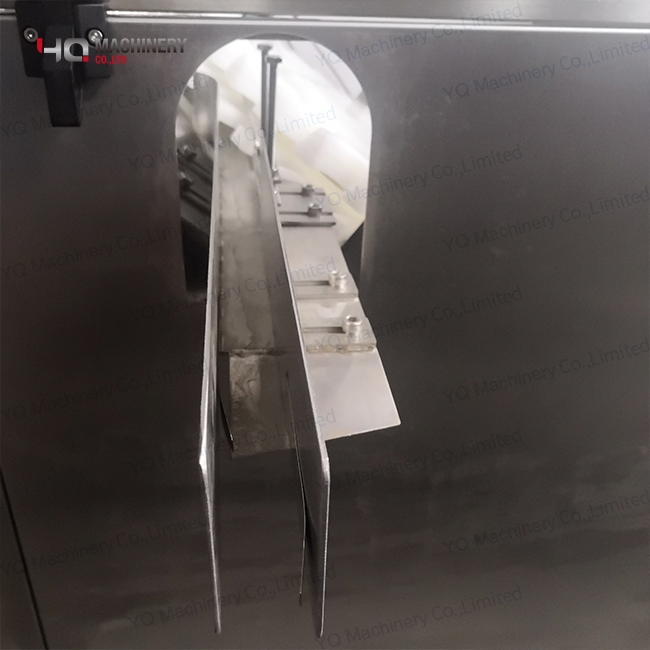

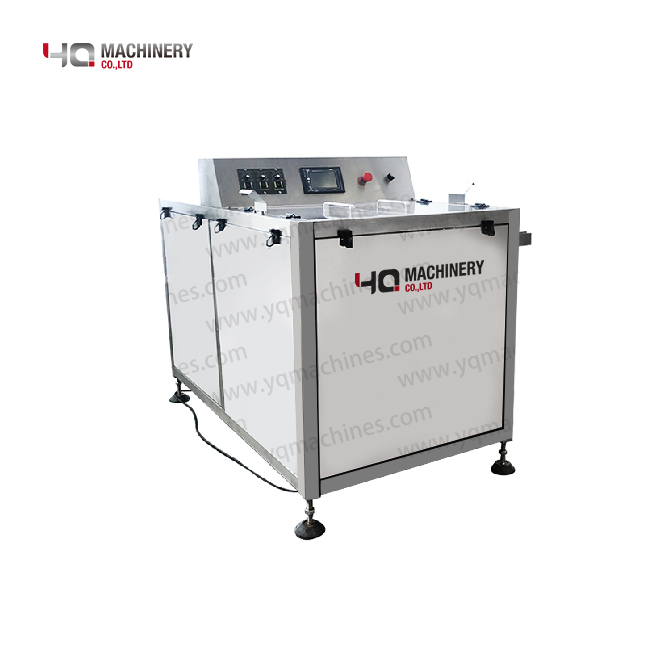

A. Bottle Unscrambler Machine
Introduction:
Bottle Unscrambler machine can apply for sort, organize, orient and deliver bottles or containers into a single, upright and orderly fashion, right onto your filling production line. YQ bottle unscramble system to help maximize your production line efficiency.
Feature:
1. The Unscrambler has a large feeding hopper to discharge the bottles to the main body of the Unscrambler.

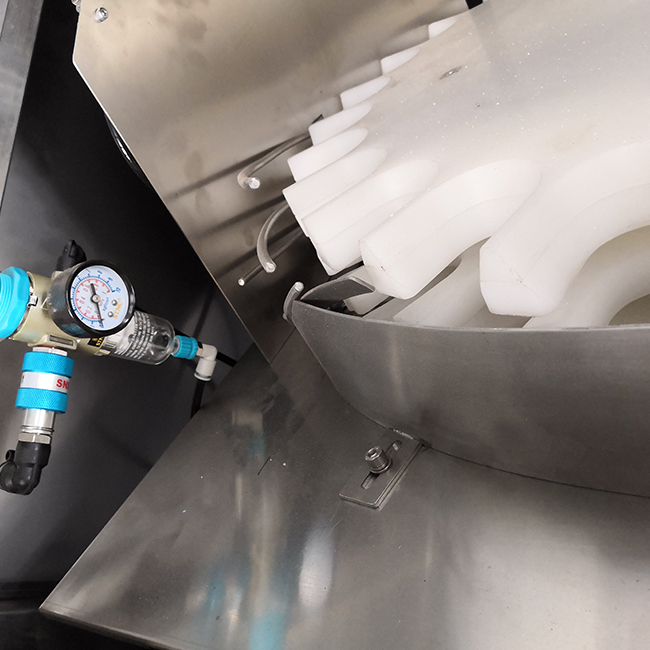

2. The changeover is simple, fast and cheap. Only have to adjust the above guides and replace the star wheel.
3. In most cases 1 Star wheel may be valid for similar bottle sizes.
4. This system can reach a maximum speed of 6000 BPH.
Main technical parameters:
Production speed | 30-120bottles/min |
Voltage | AC220 single phase /50Hz |
Power | 0.3kw |
Weight | 220kg |
Machine dimension | 1800*850*1000MM |
A. Bottle Capping Machine
Introduction:

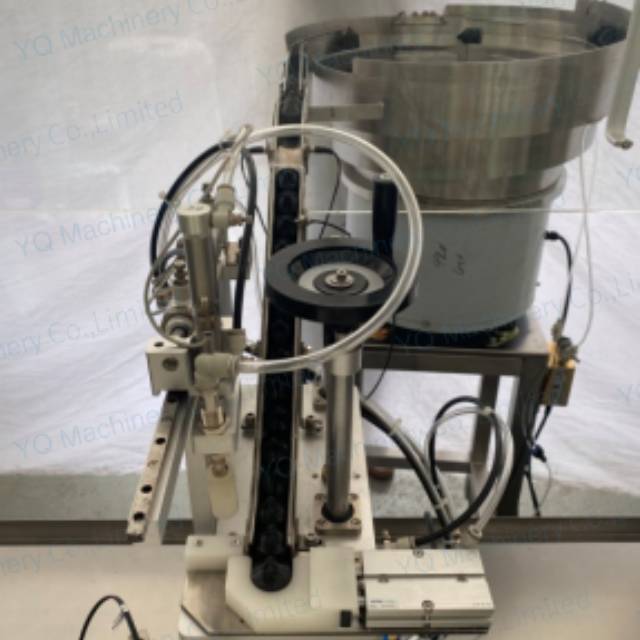

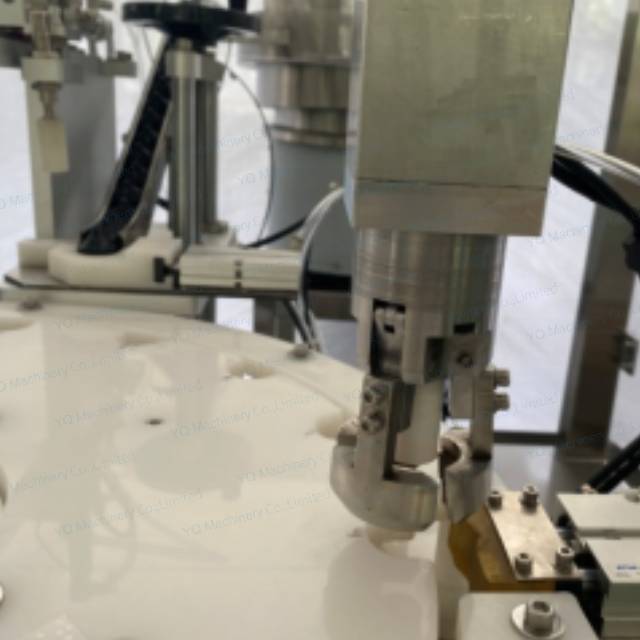

YQ rotary capper machines positively places each cap on the container and securely tightens it to the required applied torque.The capping machine simplify your bottling line, by combining multiple machine into a single space saving unit. This capping system is central importance in food, cosmetic and chemical industries. Our rotary cappers offer efficient performance and enhanced production to ensure ideal solutions for your needs.
Features:
1. 304 Stainless Steel frame configured to project specifications
2. Tooling for one bottle, tip/plug(option), and cap
3. Place and Plug Station with a vacuum track and sorter bowl for transition of tips/plugs for placement on bottle.
4. Brand name touch PLC Touch screen with HMI interface for easy setup and monitoring
5. Additional tooling for different bottles, tip/plugs, or caps
6. Centrifugal or Vibratory sorter-orientator for tips/plugs and caps
7. Bottle unscrambler and accumulating tables if you need
Technical Parameter
Power supply | AC220V / 50Hz |
Power | 1500 W |
Cap Diameter | 10~100mm |
Capping speed | 30-60bottles/min |
Suitable bottle height | 50~280mm |
Air sauce pressure | 0.6-0.8MPa |
Net Weight | 500kg |
Package size | 1800*1000*1600mm |

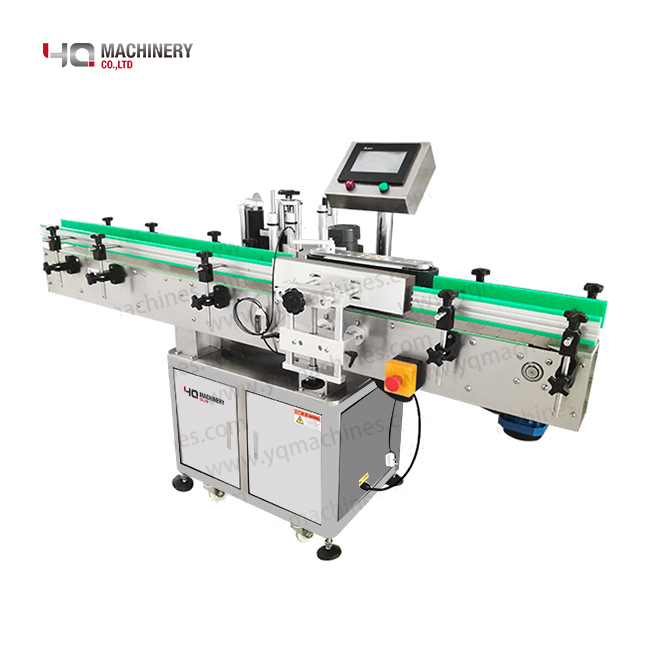

C. Bottle Labeling Machine:
Introduction
The Bottle sticker labeling machine is completely automatic which is user friendly, and also has several other outstanding features. In fact, it is built using the most modern Servo and PLC controlled label dispensing system. The bottle labeling machine also includes the latest sensing system for labels and container. It is therefore regarded as the ideal machine for labeling round container.
Features
●In Line Automatic Applications
●Touch Screen Control System
●Stainless steel Frame
●Adjustable Stand For Top or Side labeling
●Digital Controls for Label Speed
Options:
Hot Stamp Coder/Inkjet Printer
Fully integrated speed adjustable conveyor
Main technical parameters
Operating direction | Left or Right |
Labeling Accuracy | ±1.0 mm(subject to the roughness of the plane) |
Production(bottle/min) | 10-100(according to the size of bottle and label) |
Label Specifications | adhesive sticker,transparent or opaque |
The application of bottle | Outer diameter 20-100mm Height 35-200mm(can be customized according to your requirement) |
The application of label | Height 20-180mm ; Length 23-300mm(can be customized according to your requirement) |
The inner diameter of label roll | 76mm |
The outer diameter of label roll | 350mm (max) |
The power of motor(w) | 1.5KW |
Voltage | AC220V 50/60HZ Single phase |
Size appearance(mm) | 2000(L) 800(W) 1500(H)mm |
D. Bottle Accumulating Table
Introduction Of Bottle Accumulation Systems:
Rotary accumulation tables can be used to collect or distribute bottles at the beginning, midpoint, or end of a bottle packaging line.And this turntable adopt frequency control of motor speed.
Application Of Pack-Off Table:
A rotary accumulation table can be installed at the beginning of filling production line allows operators to quickly fill the table with empty bottles rather than feed bottles onto a conveyor one by one. The rotary table then automatically discharges the bottles onto the conveyor in a single file line.
In-feed tables installed in the middle of a bottle filling line allow you to deal with production bottlenecks and service issues. Mid-line accumulation tables can be fitted with upstream and downstream gates. If a machine on the line needs to be serviced, the downstream gate on the accumulation table is closed to prevent bottles from flowing into the machine being serviced. When the service on the machine has been completed, open the downstream gate on the accumulation table to again allow the bottles to flow downstream.
Bottle accumulation machine also can be installed at the end of the line serve a critical purpose. They provide an outlet for the finished product to collect in preparation for packing and prevent the bottles from backing up and slowing down your entire bottle packaging line. In-feed tables, also called pack-off tables, are a popular option for end of the line accumulation tables because they enable operators to quickly and easily remove finished product from the rotary table.
Technical Parameters:
Production speed | 30-100 bottles/min (speed adjustable) |
Applicable specifications | 10-1000 ml |
Bottle diameter | φ10-φ90 mm |
The bottle height | 85-300 mm |
Voltage | 220v single phase;50/60hz |
Power | 0.2 kW |
Weight | 150kg |
Machine size | 1000*1000*1300mm (L×W×H) |
Stainless steel | SUS304 material |
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
After-sale service:
1. Instruction for Installation and Debugging
Before delivery, we takes responsible for debugging of machine, in order to make sure the provided machine could be safely and smoothly put into operation.
We also take responsibility to have debugging overseas, and Client abroad please sends invitation forward of time to engineer, provides the engineer with round-trip tickets, accommodation, vehicle and $100 per day salary.
2. User Training
Before delivery, we will take responsibility to indoctrinate technical training to the users so that they could understand the machine features and could operate the machine by themselves.
3. Warranty Period
The warranty period for machine is one year with a life long maintenance. If the user requires special quality guarantee, other stipulated warranty period may be made after mutual agreement.Mechanical models are standard, make special design according to customer requirements.
