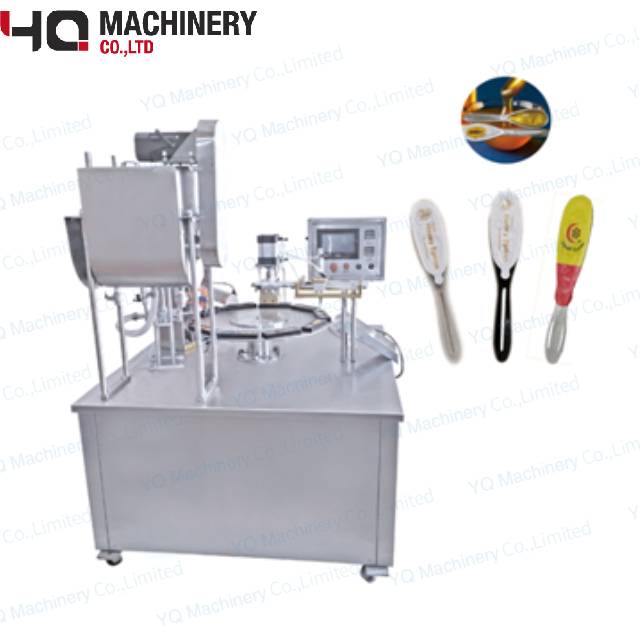

YQFS-1
YQ
For powder
For liquid
Working process:

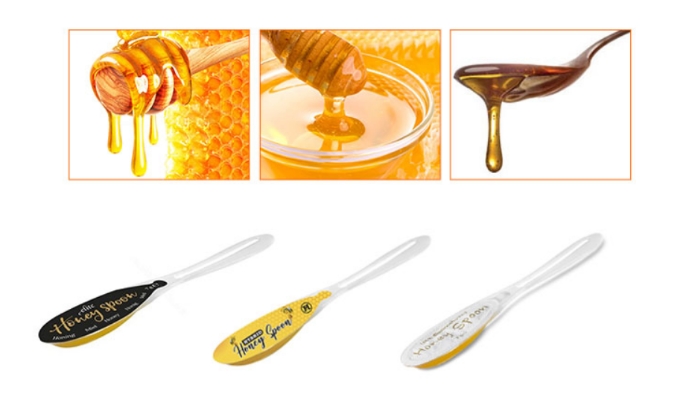

Putting honey spoon by Manual/automatically → Auto piston filling/auger filler →Auto Putting Pre-cut Film→Auto sealing→ Auto Sucking Spoon to the conveyor (PLC control)
1.Lid Dropping Part: normally dropping by hand/automatically
2.Filling Part:
a.Pistion filling without leakage,2-layers charging barrel with heating. the filling system could be designed with diving head.
b.auger filler for powder
3.Lid placing part:Aluminum foil lids are placed automatically
4.Sealing function: Sealing head are made of copper ;Sealing temperature can be adjusted between 0°-400°C. Independent temperature controller for each sealing head
5.Cup Out Part:take the sealed spoon by sucking rubber automatically
Function:
Automatic ejection system: it ejected out by sucker.
Automation control system:it controlled by brand name PLC
Pneumatic system:it controlledwith AirTac cylinder
Variable speed:adjustment via speed controller arrange with inverter
Operation panel:Traditional Switches and Buttons for simple operation
Features
1. Digital screen display with numerical setting and flexible operation.
2. Imported PLC control system and color touching screen, easy operation.
3. Imported film driving system and color sensor enable accurate position.
4. PID independent control of temperature, more suitable for different packaging material.
5. Multiple automatic alarming functions, maximum deduction the loss.
6. Dual encoders enable more stable performance.
Technical parameter
Model | YQFS-1 |
Packaging Speed: | 1000-1200pcs/H |
Voltage: | 380V50HZ 3-Phase 4-Line |
Electric Motor Power: | 0.75KW |
Heat Up Power: | 0.5KW |
Air Pressure: | 0.5-0.75Mpa |
Max Air Consumption: | 0.45m⊃3;/m |
Size(L*W*H): | 1400*1300*1650mm |
Weight: | 500kg |
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by wrong operation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
