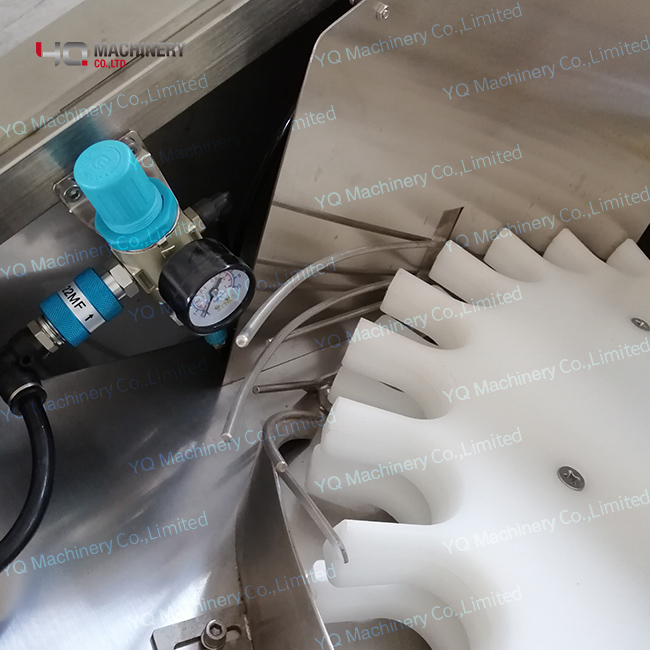

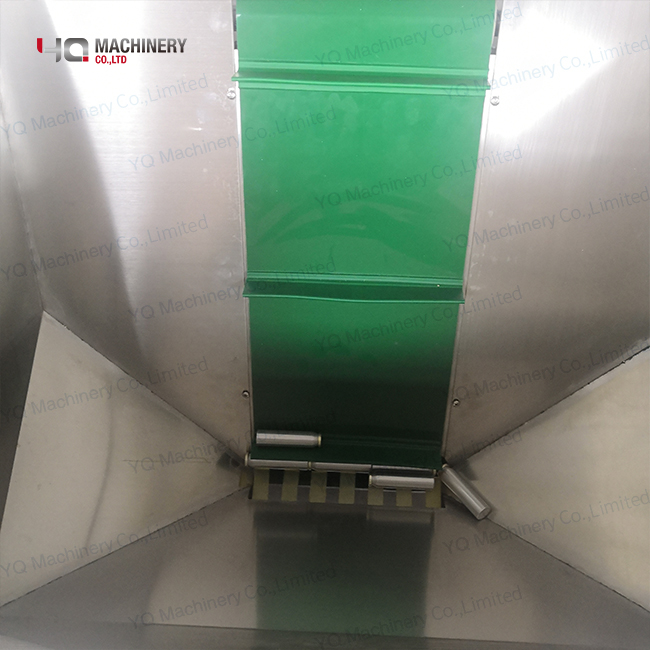

A. Bottle unscramble
YQ MACHINERY is a good supplier of automated bottle unscramblers, bottle orientors and conveyor.Plastic Bottle Unscrambling and Orienting Systems adopt rotary type and can be adjust for several different sizes.It only take several mins to finish the work.
Features of bottle unscrambler:
1. The bottle output speed is fast and stable, and the pass rate is high.
2. Simple operation, concise and clear, easy to master.
3. It can automatically stop when the bottle is full, and automatically turn on when the bottle is missing.
Technical parameter
Production speed | 30-120 bottles/min |
Voltage | AC220V single phase/50HZ |
Power | 0.3kw |
Weight | 220kg |
Machine dimension | 1800*850*1000mm |

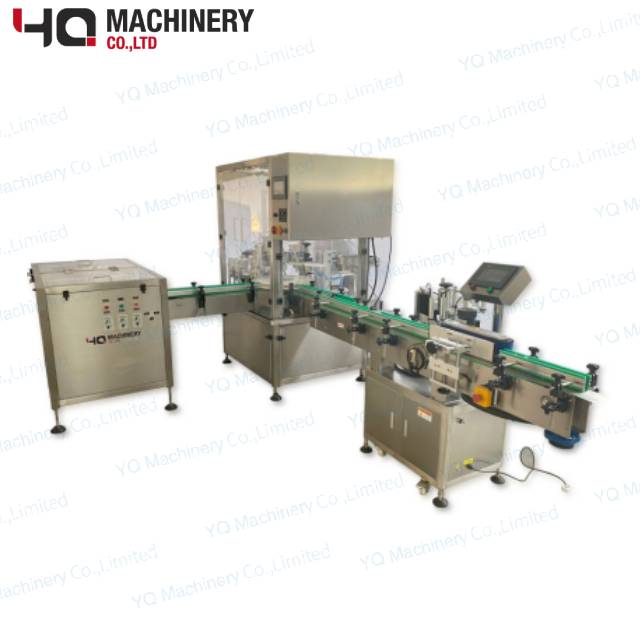

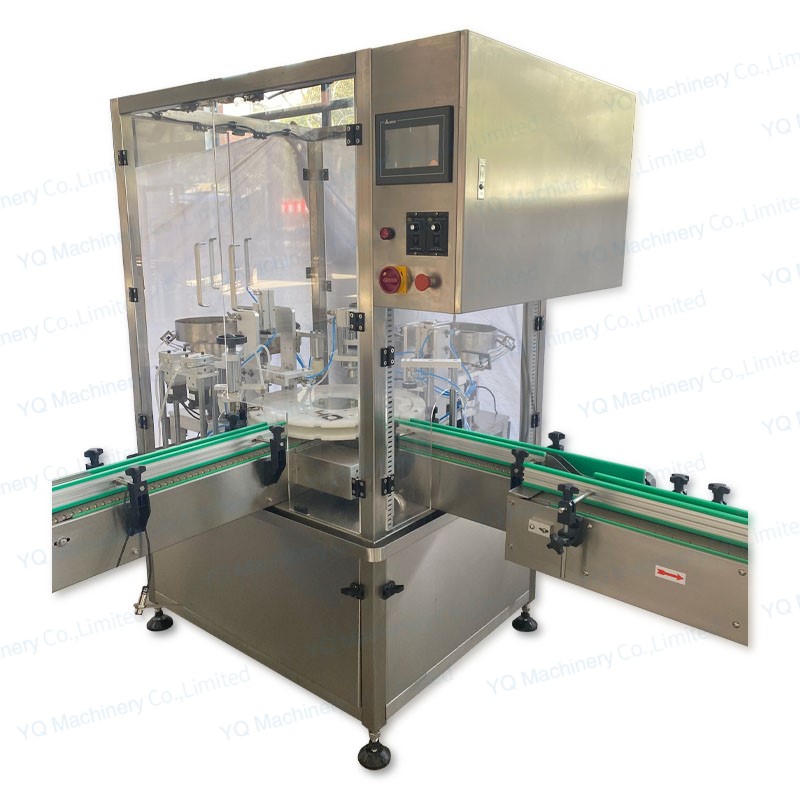

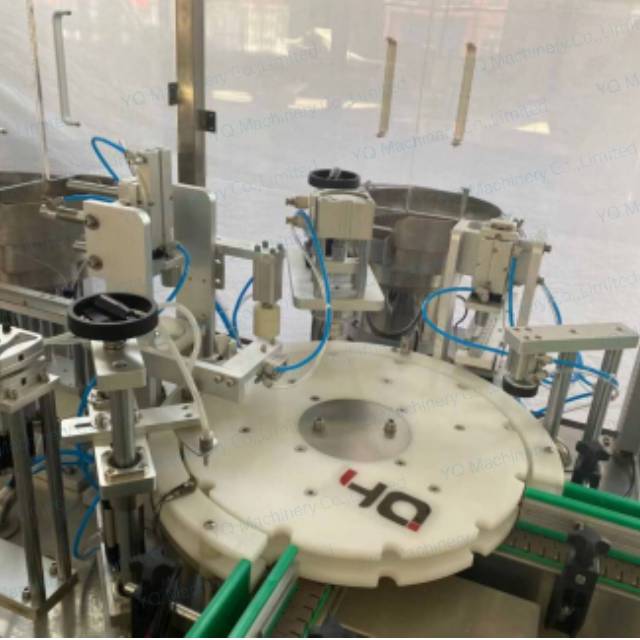

B.Spray Bottle Filling Machine
Introduction:

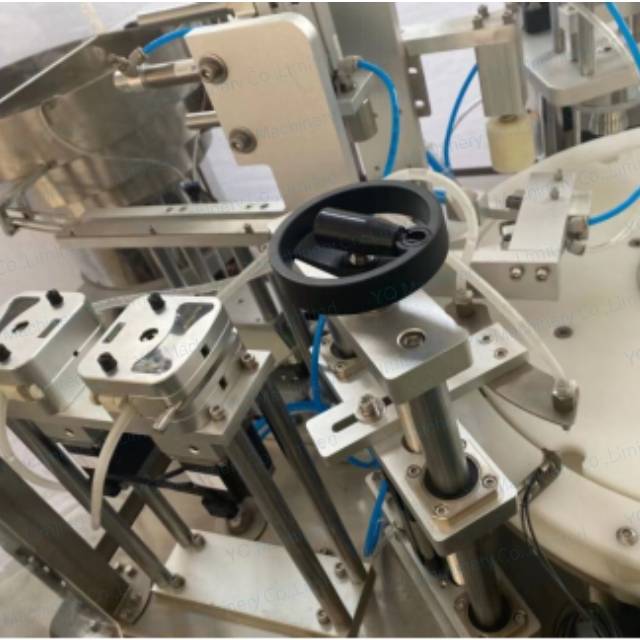

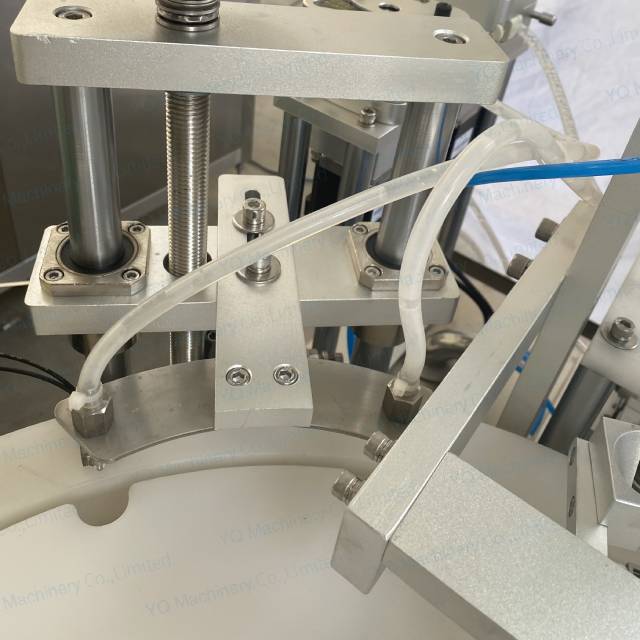

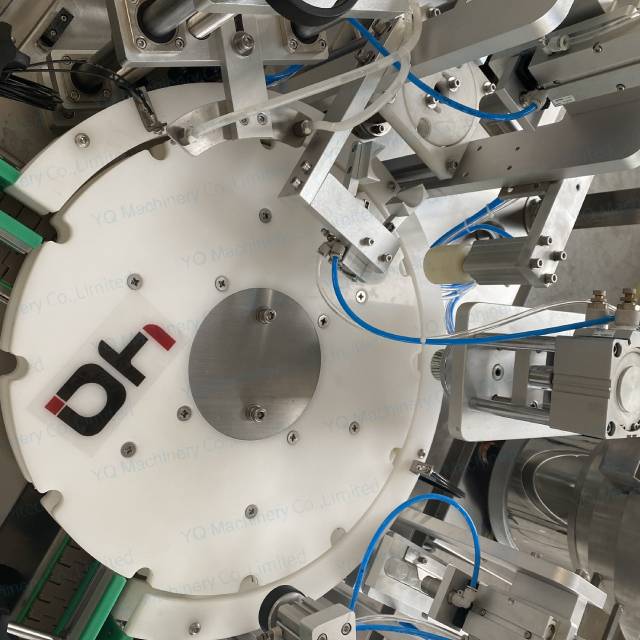

This spray bottle filler machine is suitable for filling 10-100ML small bottles in different shape. The spray bottle filling machine is provided with a high-precision cam indexing mechanism to provide indexing and equal-disc positioning on the top cover
Features:

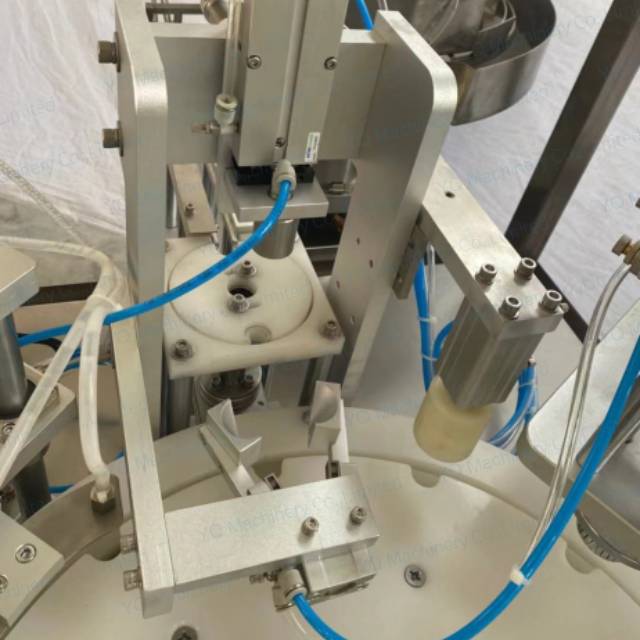

a.The acceleration cam drive provides the lifting of the capping head;
b.Constant torque capping;
c. piston pump/gear pump/peristaltic pump metering filling;
d.touch screen control
e.No bottle, no filling,
f.With precise positioning, stable transmission, protecting bottle caps and accurate measurement. Simple operation and other advantages.
Technical Parameter:
Application specification | 10-100ml |
Production capacity | 20-30 bottles/min |
Filling accuracy | ≤±1% |
Voltage | 220V/50HZ |
Power | 2KW |
Air source | 2m⊃3;/h, 0.6-0.8Mpa |
Dimension | 2400*1000*1700mm |

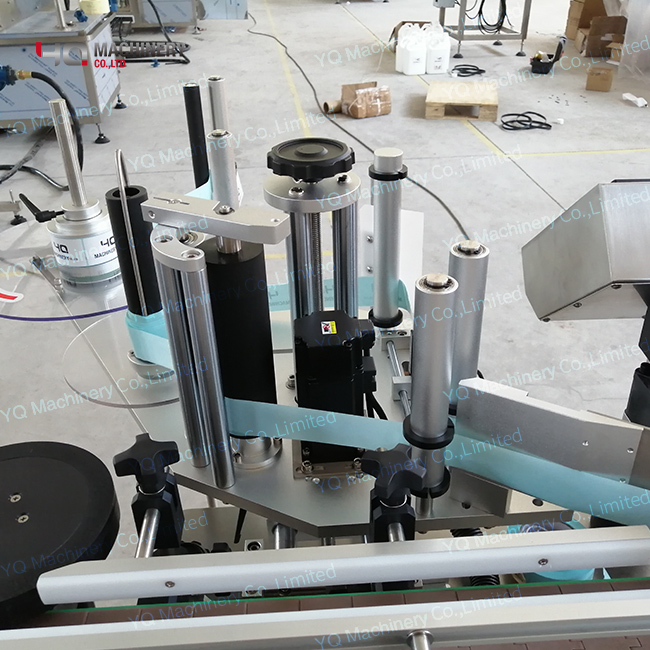

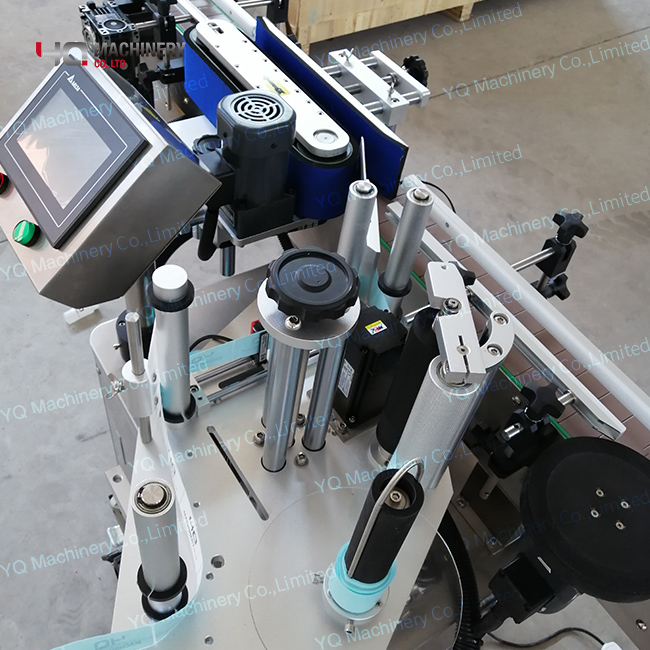

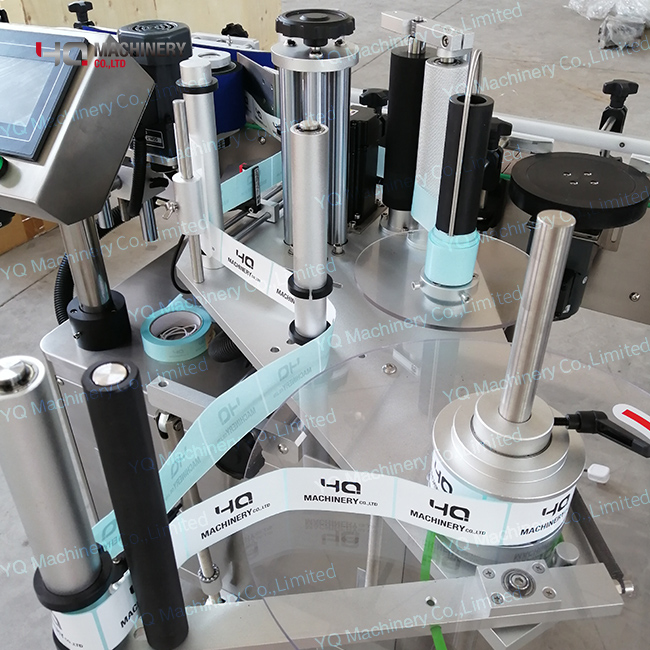

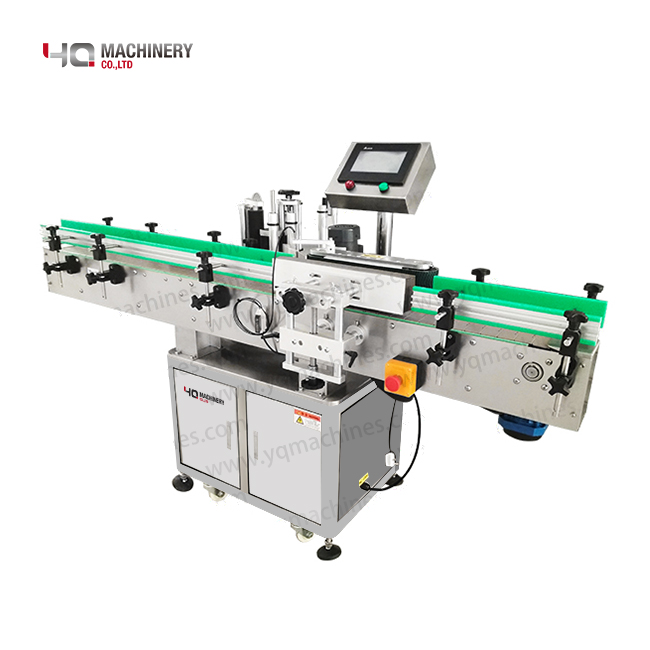

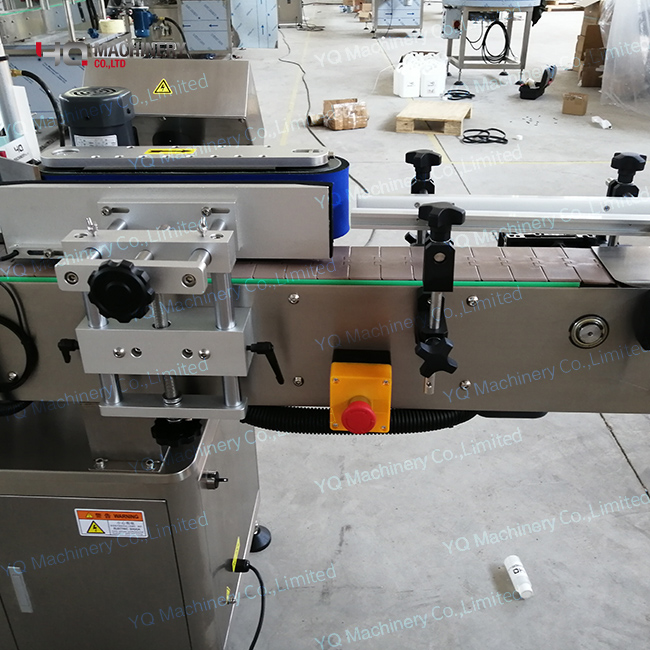

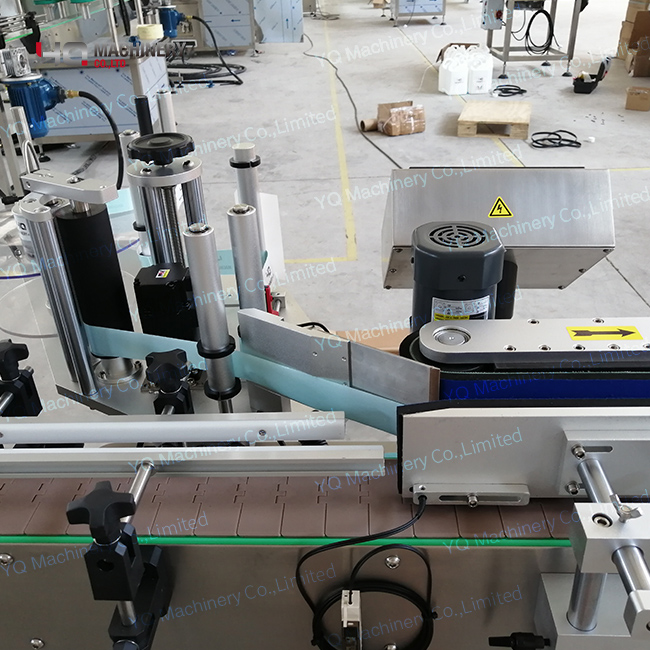

C.Vial labeling machine
Working principle:
The bottles are sent to the chain plate by the upper pipeline, and the bottles are arranged equidistantly into the photoelectric sensing area through the distance adjustment device. The label paper on the roll controlled by the servo motor is automatically sent to the label after receiving the signal, and the label is automatically peeled off. The paper is attached to the bottle, and another batch of photoelectric sensors promptly limit the delivery of a label paper. During the continuous feeding process, the label paper is correctly attached to the bottle body one by one, and it is automatically output after being flattened by a roller. , Complete the entire labeling process.
Performance characteristics:

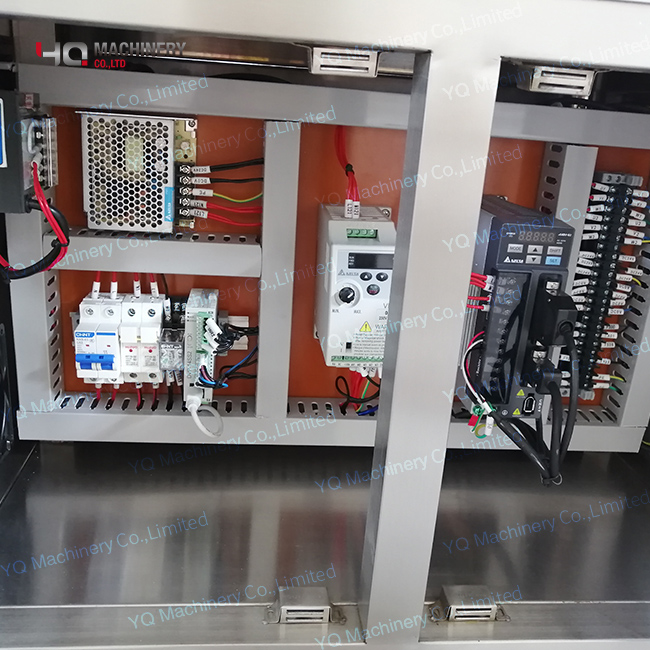

This labeling machine adopts touch screen PLC control system or knob switch control, chooses brand name's photoelectric device, speed control motor, conveyor chain and belt and other related components. This machine is suitable for labeling round bottles of medicine, chemical industry, food, daily chemical industry, etc.
Optional:
① Hot coding function;
② Circumferential positioning function;
③ Other functions (customized according to customer requirements).
④ Bottle feeder/accumulation table
Technical Parameter:
Speed | 30-120 bottles/minute |
Bottle diameter | 20~120 mm(can be customized) |
Label width(max) | 140 mm |
Label length(max) | 300 mm |
Power source & consumption | 1.0 KW, 220v, 1 Ph, 50-60HZ(Optional) |
Dimensions | 1600mm×1400mm×860 mm ( L × W × H ) |
Weight | 250kg |
Working direction | Left → Right (or Right → Left) |
Labeling speed(max) | Less than 40m/min |
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by wrong operation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
