YQM-S
YQ
Indusry Applications:
1.The parts which contact liquid are SUS316L stainless steel and others are SUS304 stainless steel
2.Including feeder turntable,effective cost/space saving
3.It has intuitive and convenient operation, measuring accurate, positioning precision
4.Fully in accordance with the GMP standard production and passed CE certification
5.Siemens Touch screen/PLC
6.No bottle no filling/plugging/capping
7.HS Code:8422303090

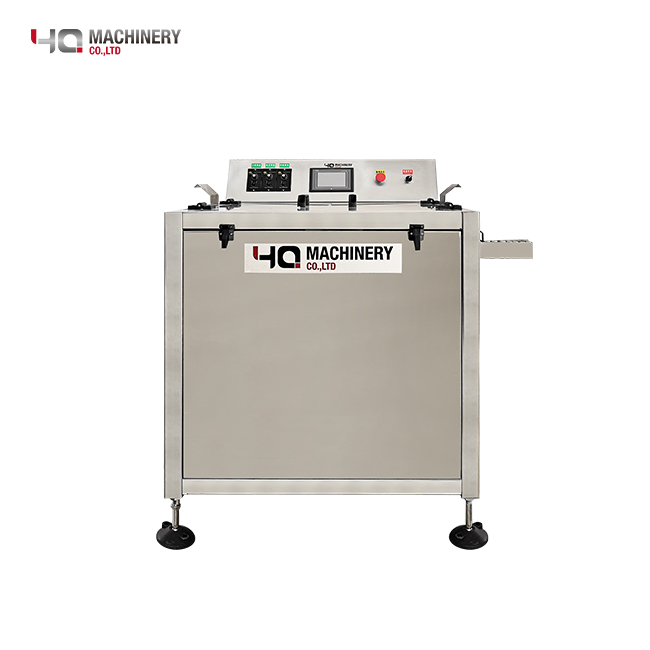

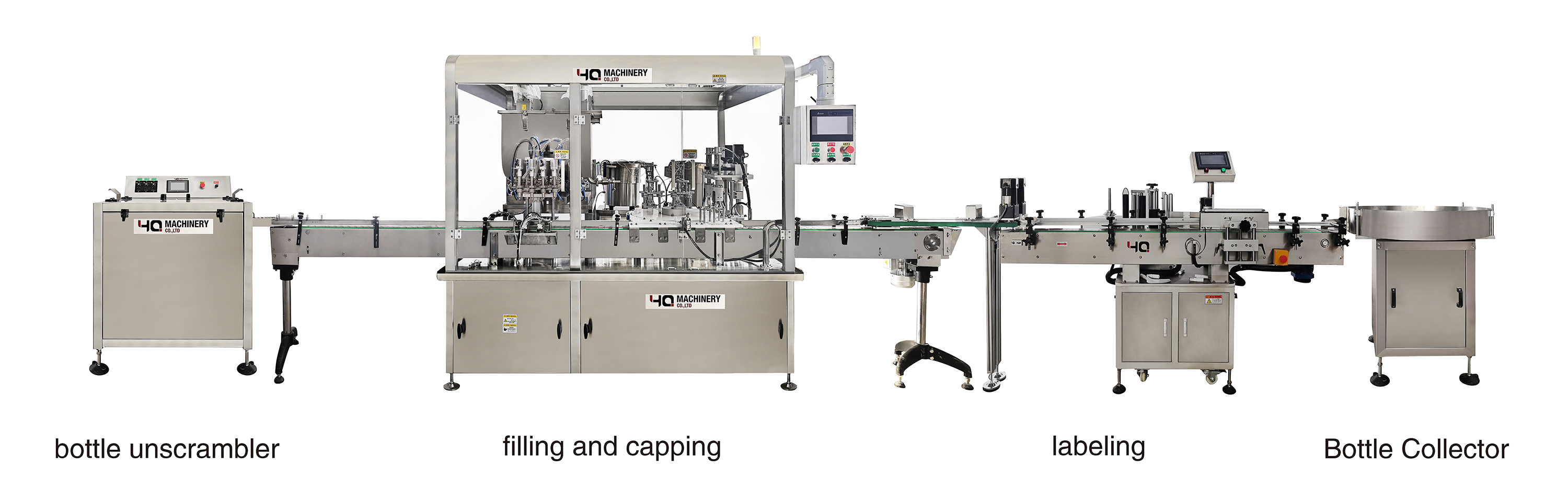

Bottle Unscrambler
Technical Parameters:
Production speed | 60-120bottles/min |
Voltage | AC220/50Hz |
Weight | 200kg |
Machine dimension | 2000mm×1000mm×1200mm(L×W×H) |
Capacity | 50-150 BPM |
Size of bottle | 100-500 ml |

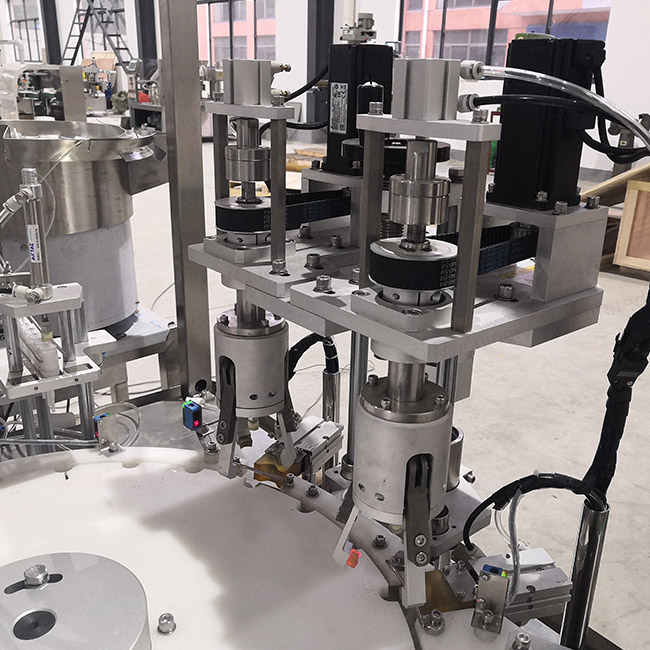

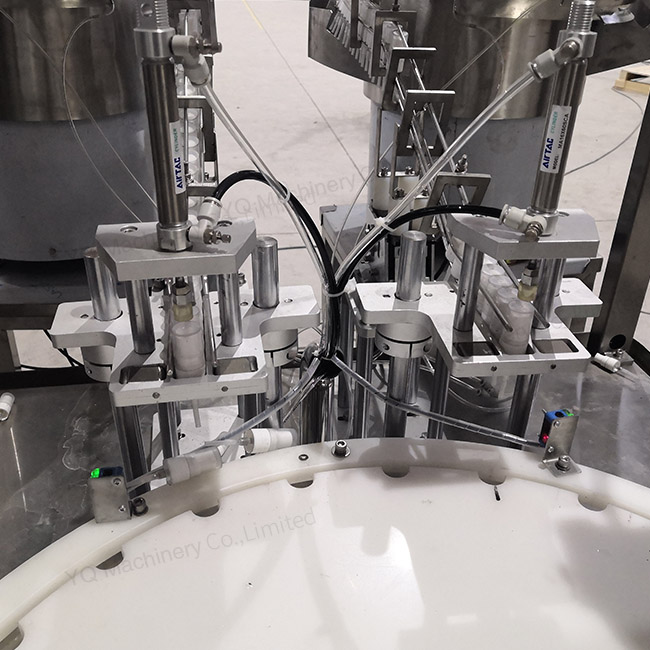

Filling and Capping Machine
Technical Parameters:
Applied Bottle | 5-200 ml |
Productive Capacity | 10-30pcs/min 2 filling nozzles 10-50pcs/min 4filling nozzles |
Filling Tolerance | 0-2% |
Qualified Stoppering ≥99% | 2000mm×1000mm×1200mm(L×W×H) |
Capacity | 50-150 BPM |
Size of bottle | 100-500 ml |
Power Supply | 380V ,50HZ |
Qualified capping | ≥99% |
Qualified cap putting | ≥99% |
Dimension | 2500(L)×1000(W)×1700(H)mm |
Net Weight | 600KG |
Power | 1.5KW |

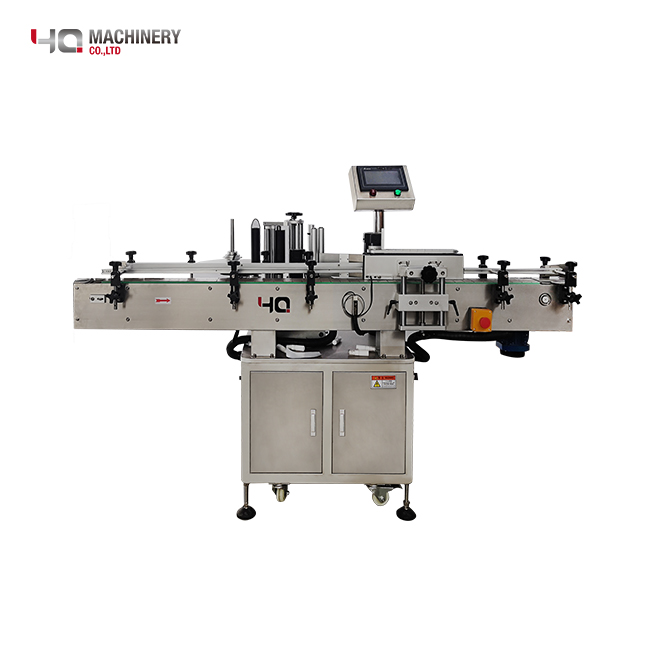

Labeling Machine
Technical Parameters:
Operating direction | Left or Right |
Labeling Accuracy | ±1.0 mm(subject to the roughness of the plane) |
Production(bottle/min) | 60-150(according to the size of bottle and label) |
Labeling Speed(m/min) | ≤40 |
Label Specifications | adhesive sticker,transparent or opaque |
The application of bottle | Outer diameter 40-100mm Height 35-200mm |
The application of label | Height 20-160mm ; Length 23-280mm |
The inner diameter of label roll | 76mm |
The outer diameter of label roll | 350mm (max) |
The power of motor(w) | 550W |
Voltage | AC220V 50/60HZ Single phase |
Size appearance(mm) | 1800(L) 700(W) 1270(H)mm |

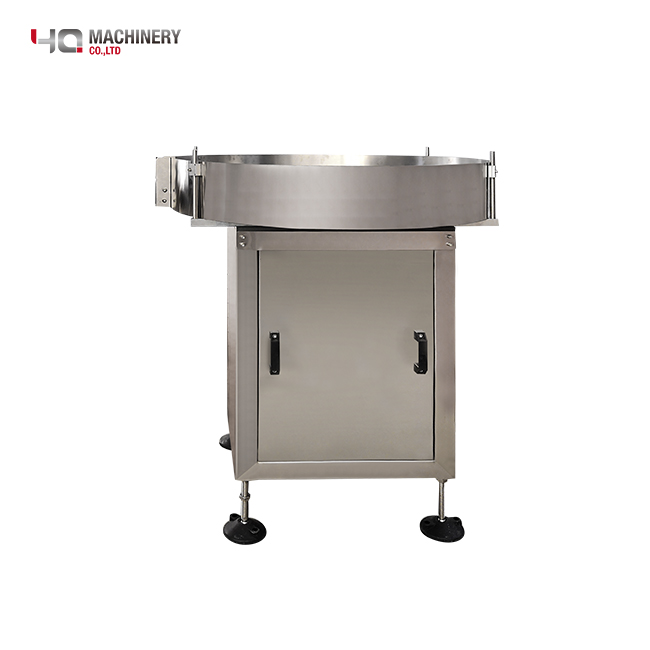

Bottle Collector
Technical Parameters:
Applicable specifications | 10-2000 ml |
Bottle diameter | φ10-φ80 mm |
Bottle height | 85-300 mm |
Production capacity | 0-100 BPM (speed adjustable) |
Voltage | 110v/220v;50hz/60hz |
Power | 0.5 kw |
Weight | 200kg |
Machine size | 1000*1000*800mm |
Stainless steel | SUS304 material |
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by wrong operation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
