Application:

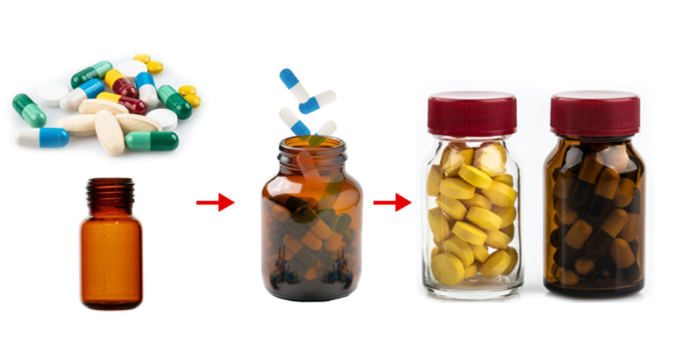

This counting machine allow users to fill tablets, capsules, pills more quickly and more accurately, cutting human error out of the equation and saving time that could be better spent delivering direct patient care.
Our tablet counting machines is that it was developed as a technological solution rather than a mechanical one. Counting is carried out by an advanced developed by a team of highly experienced multi-disciplinary professionals from the fields of electronics, optics, mechanics and computer sciences. This unique collaboration resulted in the emergence of the most advanced counting technology.
Features:
1.Reliable operation:It runs stably and smoothly with low noise.
2.High dust resistance:It adopts unique anti-dust photoelectric sensor.
3.Accurate counting:Due to photoelectric sensor detection and imported large PLC counting, bottle-filling error meets the international standard.
4.Optional function:If special components are added, it can possess functions such as rejecting unqualified capsules or tablets and photoelectric detection alarming for lack of bottles or bottles being blocked.
5.Simple operation:With intelligent design, various operating parameters can be set in advance, including at most 15 sets in memory.
6.Easy maintenance:The operator only requires simple training as the disassemble, cleaning and replacement of parts are easy to carry out without the need of tools.
Technical Parameter:
Model | YQC-8 | YQC-12 | YQCF-16 | YQC-24 | YQC-32 |
Capacity | 10-30 bottles/min | 10-30 | 20-80 | 20-90 | 40-120 |
4500-13500 bottles/shift | 9000-18000 | 9000-36000 | 9000-40000 | 18000-54000 | |
Power | 220V 50Hz 0.6kw | 220V 50Hz 0.8kw | 220V 50Hz 1.2kw | 220V 50Hz 1.5kw | 220V 50Hz 2.2kw |
Size (mm) | 660*1280*780 | 1400*1400*1560 | 1600*1400*1560 | 1800*1400*1680 | 2200*1400*1680 |
1200*1280*1560 | 1600*1600*1560 | 1800*1600*1560 | 2000*1600*1680 | ||
Weight (kgs) | 120 | 220 | 350 | 400 | 550 |
180 | 270 | 310 | 360 | ||
Working Range | Adjustable from 2-9999 per bottle | ||||
Applicable | Φ0~5#capsule soft capsule Φ5.5~12compressed tablet special-shaped tablet sugarcoated tablet Φ3~12pill | ||||
Remarks | Capacity is subject to the type and the size of the bottle and tablet, as well as the quantity filled per bottle. |
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by misoperation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
