Application:
Applicable labels: stickers labels, stickers film, electronic monitoring code, bar code and so on. Applicable products: flat shape objects, the arc, the circumferential surface, concave, convex, or other surface attached to the label of the product; such as: Shampoo flat bottle, packaging box, caps, plastic shell and so on. Change the labeling mechanism, can be applied to the uneven surface labeling, such as prism surface, circular surface labeling and so on. By change the mold, can labeling irregular production.

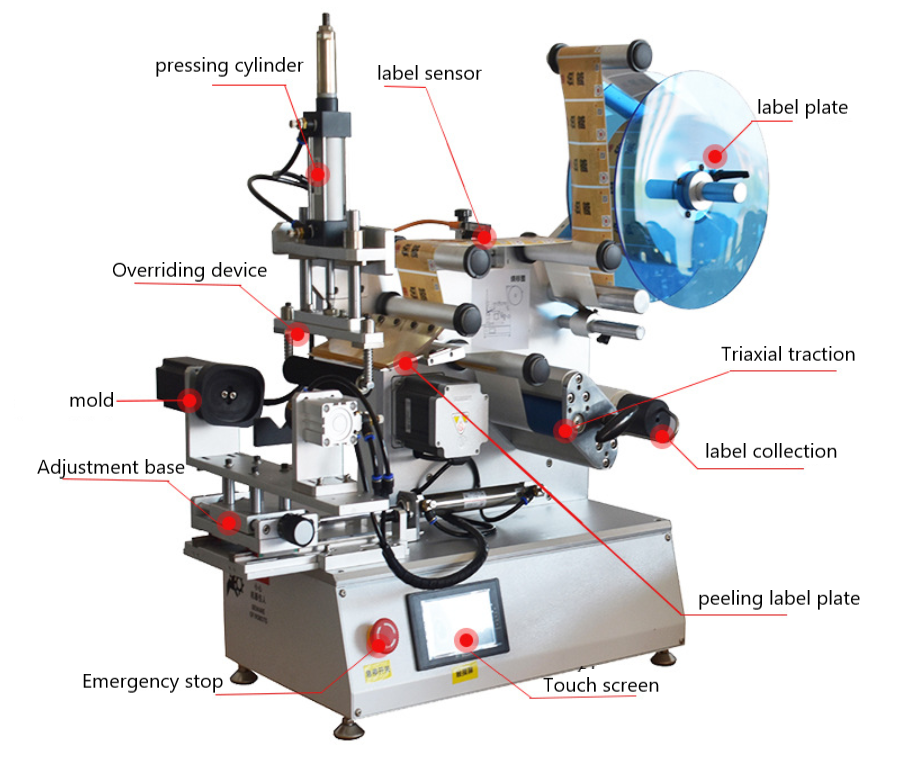

Detailed image
Main technical parameters:
Labeling accuracy | ±0.5mm (excluding products, labels, error) |
Labeling speed | 15--35 pcs/min (related to the product and label size) |
Apply the product size | Length: 20-200mm;Width: 20-150mm Thickness: 20-120 (Can be customized) |
Apply label size | Length:15-100 mm; Width: 15-110 mm (Can be customized) |
Applicable to the power supply | 220V/50HZ (Need to add a voltage converter, according to the local voltage of different country) |
Apply labels inside diameter | ¢76mm |
Apply labels outside diameter | ¢240mm |
Voltage | 220V |
Power consumption | 330W |
Air pressure | 0.3---0.6Mpa |
Packing size | 980*740*1040mm |
Net size (length*width* height) | 930*690*840mm |
Weight | 57Kg |
How to set transparent sensor
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
After-sale service:
1. Instruction for Installation and Debugging
Before delivery, we takes responsible for debugging of machine, in order to make sure the provided machine could be safely and smoothly put into operation.
We also take responsibility to have debugging overseas, and Client abroad please sends invitation forward of time to engineer, provides the engineer with round-trip tickets, accommodation, vehicle and $100 per day salary.
2. User Training
Before delivery, we will take responsibility to indoctrinate technical training to the users so that they could understand the machine features and could operate the machine by themselves.
The warranty period for machine is one year with a life long maintenance. If the user requires special quality guarantee, other stipulated warranty period may be made after mutual agreement.Mechanical models are standard, make special design according to customer requirements.
