YQSF-60
YQ
Application:

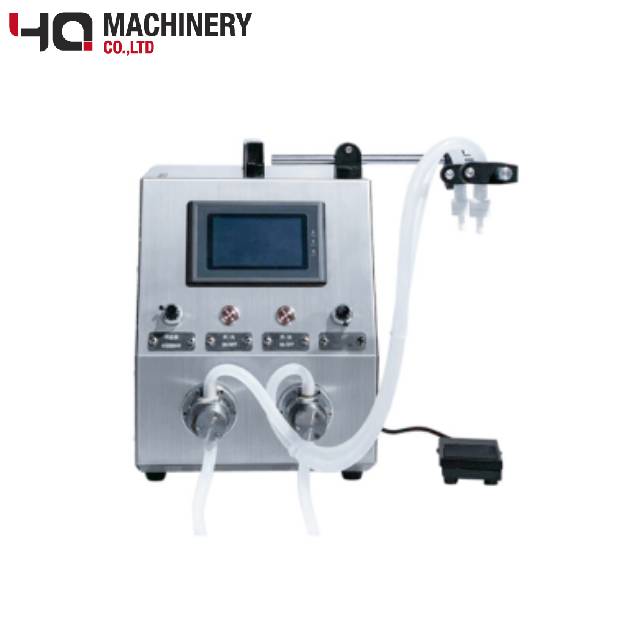

This magnetic pump liquid filling machine use microcomputer control technology,high filling accuracy and reliable performance,it is suitable for filling low viscosity liquid,such as water, oil, e-juice, e-cigarette, essential oil, coconut oil ,perfume etc,widely applied to food,cosmetic,medicine,chemical industries etc.
Features:
1. liquid dispenser pump is made of corrosion-resistant material; pump inside no mechanical metal parts,non-wear high-precision technology,long service time.
2. magnetic filling pump head is made of stainless steel,it is resistant to corrosion,acid and alkali resistant , easy to clean.
3. High accuracy,within filling range,error is less than 1%,filling volume from 5ml to 1000ml filling can be adjusted.
4. Manual operate filling or foot switch intermittent filling,it can also do automatic intermittent filling.
5. Filling nozzle adopts drip-proof system.
Technical parameter
Power | 150w |
Voltage | 220V/50HZ |
Filling heads | 2 heads |
Diamater of bottle mouth | Above 4mm |
Suitable material | Liquid |
Suitable bottle height | 20-300mm |
Flow rate | 7L/pump/min |
Working environment | -5-50℃ |
Working conditiion | The temperature does not exceed 100℃ |
Diameter of nozzles | 8mm (Can be customized) |
Machine material | Stainless steel |
Weight | 15kg |
Dimension | 260*40*380mm |
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by wrong operation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
