YQNB-150
YQ

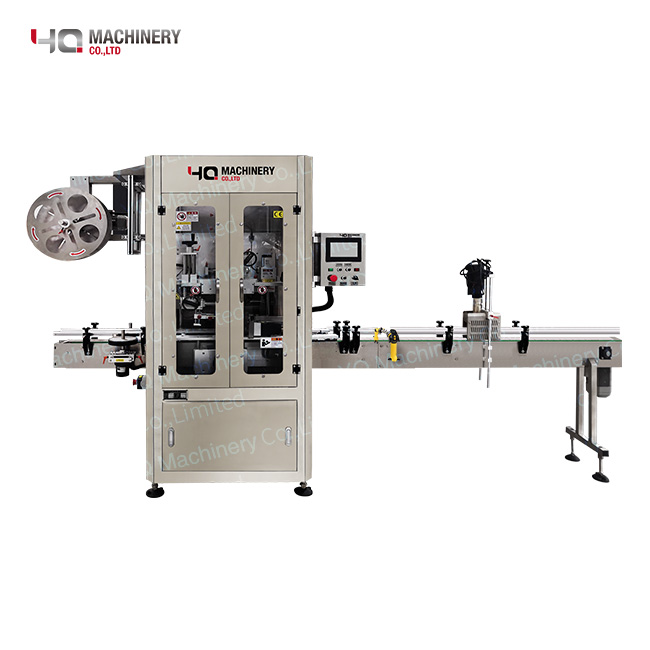

Introduction of shrink sleeve labeling machine:
This tamper evident band applicator is suitable for all kinds of containers, bottles sleeves (such as food, beverages, cleaning supplies, medicines, wine bottles and other plastic and glass bottles).
Multi-bottle options: It can meet the needs of round bottles, square bottles, oval bottles, flat bottles, curved bottles, cup shapes, etc. Forced direct nesting method, accurate and fast positioning. Various shrinkable films with a thickness of 0.035-0.045mm can be used, saving a lot of raw material costs. The temperature of the hot air shrinking furnace is uniform and stable, and the shrinking effect is ideal.
Features of shrink sleeve applicator:
1. Can be fully connected with the production line, or stand-alone
2. The shrink sleeving machine can be equipped with dual feed trays to save material change time and ensure smooth production
3. Adjustable feeding high-speed electric eye, accurately lock the label position
4. Single positioning center guide column, stable label guide, can quickly replace different products
5. Synchronous bottle divider design, bottle transportation is not easy to shake
6. Adjustable cutter head, the cutting mark is smoother, greatly reducing the imagination of defects, it is easier to replace the blade
7. Conveyor belt, bottle-seperating screw are synchronously adjustable to ensure stable and high-speed sleeve labeling
8. Mature and stable control system, touch screen design with auxiliary buttons, more in line with humanity
9. High-standard electrical configuration, the feeding knife is seamless, and the label feeding is soft and smooth
Advantage of neck band heat tunnel:
Full-cover stainless steel host: the whole sleever machine is waterproof and not easy to rust;
Adjustable cutter head: rotary cutting, double-sided blade, long life;
Label feeding: adopt double drive label feeding
Double positioning center guide column: label guide is more stable;
Synchronous bottle separator: bottle conveying is more stable;
Label brushing group: the accuracy of the sleeve label is more accurate;
Label-controlled electric eye holder: the combination of the tail and the electric eye improves the cutting accuracy of the film
Push-button control box: more user-friendly operation;
Feeding type material rack: the position of the material rack can be freely selected
Technical Parameter of shrink band applicator:
Material | SS304 |
Voltage | 220VAC, 50/60HZ, 1Phase(Can be customized) |
Power | Main Power 1KW |
Speed | 250bpm (Base on 40mm film length) |
Bottle Diameter | Ψ20mm~100mm(Can be customized) |
Bottle Shape | Round, Square, Oval, Curves, etc. |
Bottle Material | Glass, Metal, Plastic |
Film Material | PVC, PET, OPS |
Film Thickness | 0.045mm |
Film Roll Inner Core | 76cm(3inch) |
Film Length | 22mm~200mm(can be customized) |
Bottle Height | 35~200mm |
Dimensions | 2000 mm(H) x 1150 mm(W) x 1850 mm(D) |
Net Weight | Approx 400kgs |
How to adjust machine
Video 2
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by misoperation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
