Views: 36 Author: Site Editor Publish Time: 2019-01-15 Origin: Site

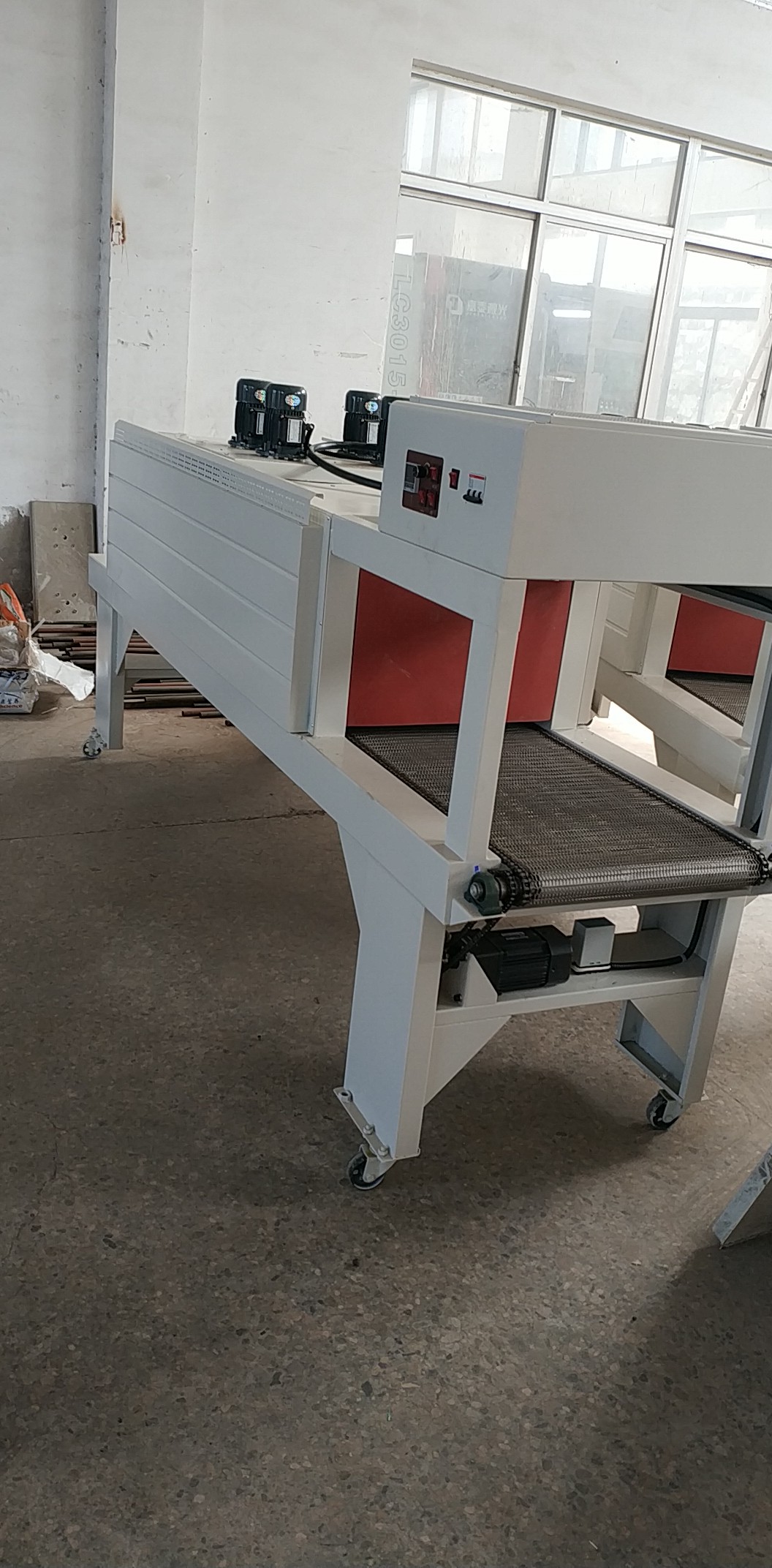

This shrink wrapping machine can be used to pack PE Film - A type of PE shrinking wrapping machine that has become the preferred choice for packaging machines both edible and non-edible. Heat Shrink wrapper is preferred for a variety of reasons including: fewer odors when sealed, stronger seal, and more flexible storage. This shrink films do not have any chlorine; therefore this type of shrink packaging machine do not produce hydrogen chloride gas. Polyolefin shrink wrap does not have any plasticizers, so temperature is not an issue.

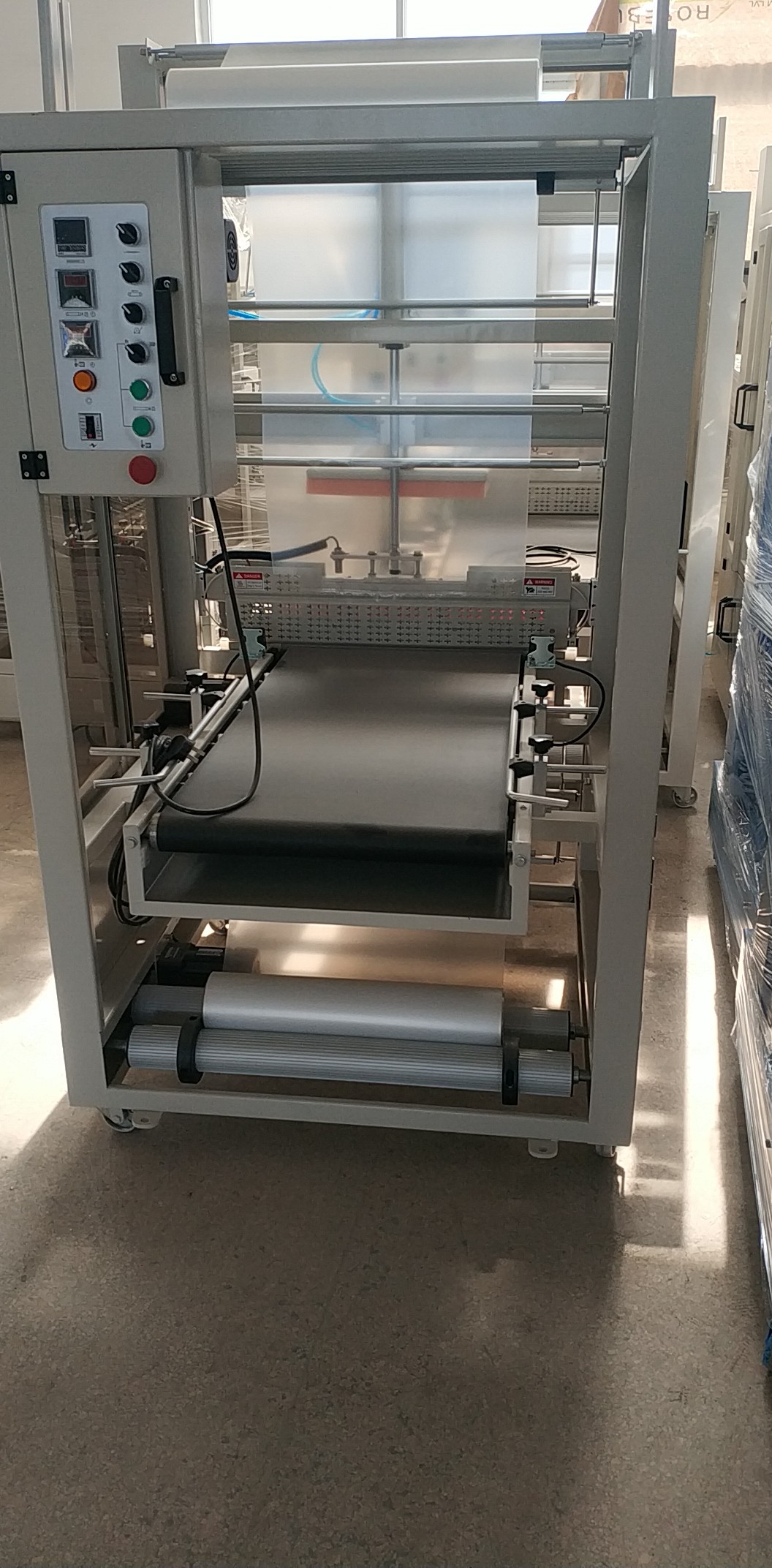

This old Ghanaian customers purchase our thermal wrapping machine to pack beverage bottles in bundle.Pictures are listed for your reference.
Main technical parameters
Model | YQSP-6540 | Model | 5540 |
Power supply | 220V, 50-60Hz;1.8KW | Power supply | 3phase 380V 50-60HZ 13KW |
Capacity | 2-5pcs/minute | Heater power | 13KW |
Sealing time/shrink time | 0.5-1.5s, 0-0.6s | Conveyor speed | 0-10m/minute |
Conveyor loading | 30kg | Tunnel size(L*W*H) | 2000*550*400mm |
Film width | Max. 650mm | Conveyor loading | 25Kg MAX. |
Film thickness | 0.04-0.12mm | Shrink film | PE |
Max. packing dimension(L*W*H) | 550 x 400 x 380mm | Machine weight | 250KG |
Min. packing dimension(L*W*H) | 250 x 60 x 60mm | Machine size | 2500*800*1500mm |
Machine size(L*W*H) | 925×1040×1920mm |
Packaging Size: 1100*1150*2100mm 200KG
3500*1200*1700mm 400KG
Packing effect:
This heat shrink packaging machine adopts mesh belt straight face conveying. It can be used to pack various cartons, packaging products with or without a tray. The machine conveys smoothly, and the gap between the two sides of the sealing platform is small.
Below is bank receipt:
