Availability: | |
---|---|
Quantity: | |

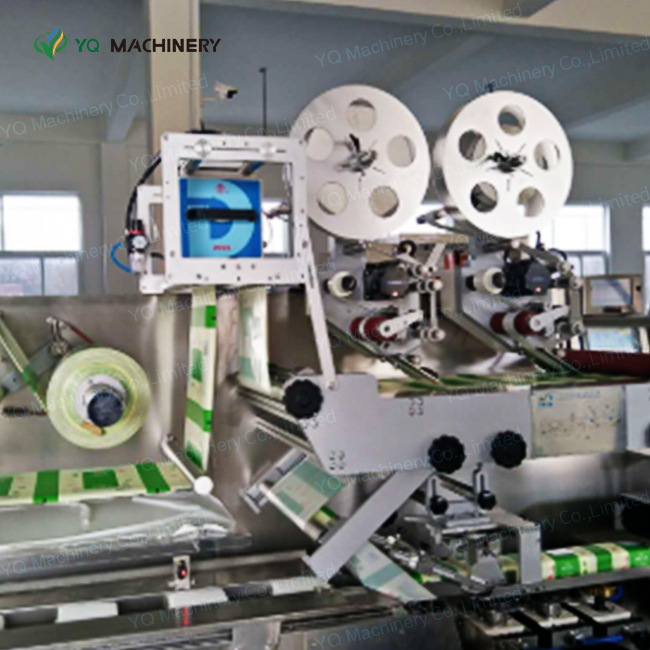

Applications of thermal transfer printers:
1) Intermittent package machines
2) Labeling machine
Advantage of thermal transfer printer
Bless your brand: 300DPI printing effect, improve the appearance of your product, and make your corporate brand stand out from your peers.
Blessing your benefits: real-time date, time and batch number can be printed; switching print content without obstacles; longest 600 meters long ribbon, reducing the frequency of changing belts; humanized human-machine interface, simple operation; intuitive and easy to learn editing software . Optimize your production line control and reduce costs.
Protect your property: use 32mm and 53mm print head widths, 22, 25, 30, 33, 35, 55mm and other ribbons with different width specifications, through reasonable configuration to meet various coding requirements; ribbon printing gap Only 0.5mm; high-definition, high-adhesion coding effect to avoid being complained. Comprehensive reduction of various direct and indirect costs.
Protect your channels: print variable barcodes and QR codes, and implement product traceability through the full-flow distribution software system to prevent channeling and counterfeit goods and protect the sales channels.
1. Controller Box
2. Cassette Assembly
3. Printer Uni t
4. Air Pressure Regulator
5. Air Pressure Meter
6. Intermediate Relay
7.Cleaning Wipe
8. Ribbon Sample
9. Air Pipe
10. Proximity Sensor
11. Encoder (optional )
12. Rubber Pad (optional)
13. I/O Cable
14. Drive Cable
15. Power Cable(with plug)
16.Power Cable (no plug)
Technical parameter:
Print Head | 32/53mm, 300DPI |
Print Area | Intermittent-32mm*60mm; Intermittent-53mm*80mm |
Continuous-32mm*150mm;Continuous-53mm*150mm | |
Ribbon Size | W-33MM, L-500M(Max.) for 32 model;W-55MM, L-650M(Max.)for 53 model |
Print Frequency | Intermittent:up to 450PPM |
Continuous:up to 200PPM | |
Power | AC110~220V, 50/60Hz, Intermittent: 100W, Continuous:150W |
Environmental Operating Temperature | 0~40°C |
Relative Humidity | 10%~95% ( no condensing) |
Air Supply | 6bar/90PSI(MAX) dry uncontaminated |
Weight | print head:8.5kg, control box:2.0kg for 32model;print head:8.5kg, control box:2.0kg for 53model |
Dimension | Print Head 188mm*190mm*180mm(L*W*H) for 32 model; Print Head 210mm*210mm*185mm(L*W*H) for 53 model |
Control Box 175mm*235mm*110mm(L*W*H) for 32/53 model |
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by misoperation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
